Siemens CPU 313C Hardware And Installation Guide

:LULQJ
S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
7-18 A5E00105492-03
,QVHUWLQJWKHEXVFRQQHFWRULQWRWKHPRGXOH
1. Insert the wired bus connector into the module.
2. Screw-tighten the bus connector on the module.
3. If the bus connector is at the start or end of a segment, you have to enable the
terminating resistor (Switch position "ON" see figure below)
1RWH
6ES7 972-0BA30-0XA0 bus connectors are not equipped with a terminating
resistor. You cannot connect it at the beginning or end of a segment.
Please make sure during start-up and normal operation that power is always
supplied to stations where the terminating resistor is active.
Terminating resistance switched on
Terminating resistance switched off
on
off
On
Off
on
off
On
Off

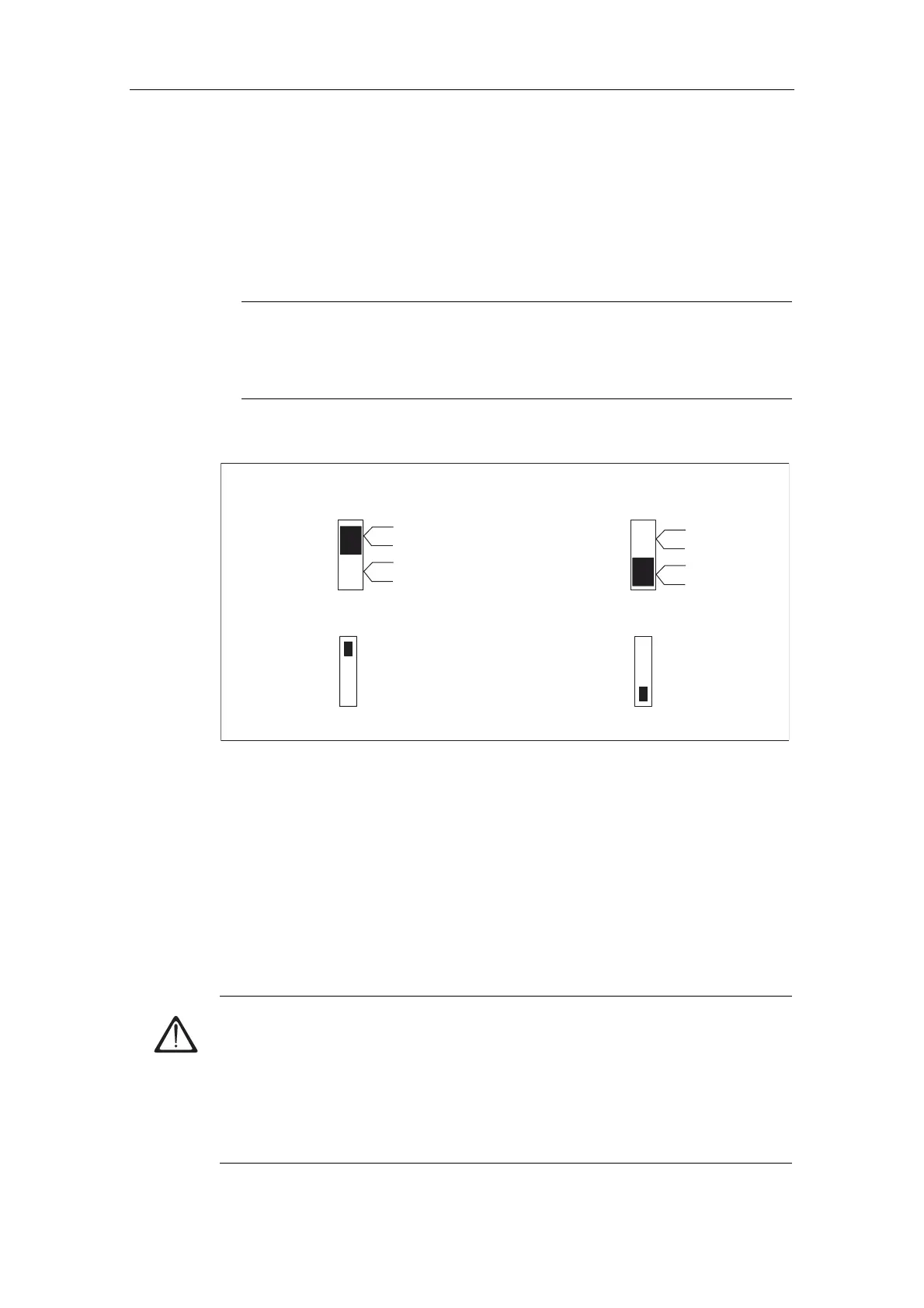

Figure 7-8 Bus connector: Enabled and disabled terminating resistor
5HPRYLQJEXVFRQQHFWRUV
With a looped-through bus cable, you can unplug the bus connector from the
PROFIBUS-DP interface at any time, without interrupting data communication on
the network.
3RVVLEOHGDWDWUDIILFHUURUV
:DUQLQJ
Data traffic error might occur on the bus!
A bus segment must always be terminated at both ends with the terminating
resistor. This, for example, is not the case if the last slave with bus connector is off
power. Since the bus connector draws its power from the station, the terminating
resistor has no effect.
Please make sure that power is always supplied to stations on which the
terminating resistor is active.

Siemens CPU 313C Specifications

General

MPI Interface	Yes
Number of digital inputs	24
Number of digital outputs	16
Number of analog inputs	4
Number of analog outputs	2
Supply voltage	24 V DC
High-speed counters	Yes
Bit Operations Execution Time	0.1 µs
Word Operations Execution Time	0.2 µs
Power Consumption	5 W
Dimensions (W x H x D)	40 x 125 x 130 mm
Operating Temperature	0 to 60 °C
Communication Interfaces	MPI
Programming Languages	LAD, FBD, STL
Product type designation	CPU 313C
Weight	490 g
