S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
A5E00105492-03
5-29
([DPSOH6ZLWKORDGSRZHUVXSSO\IURP36

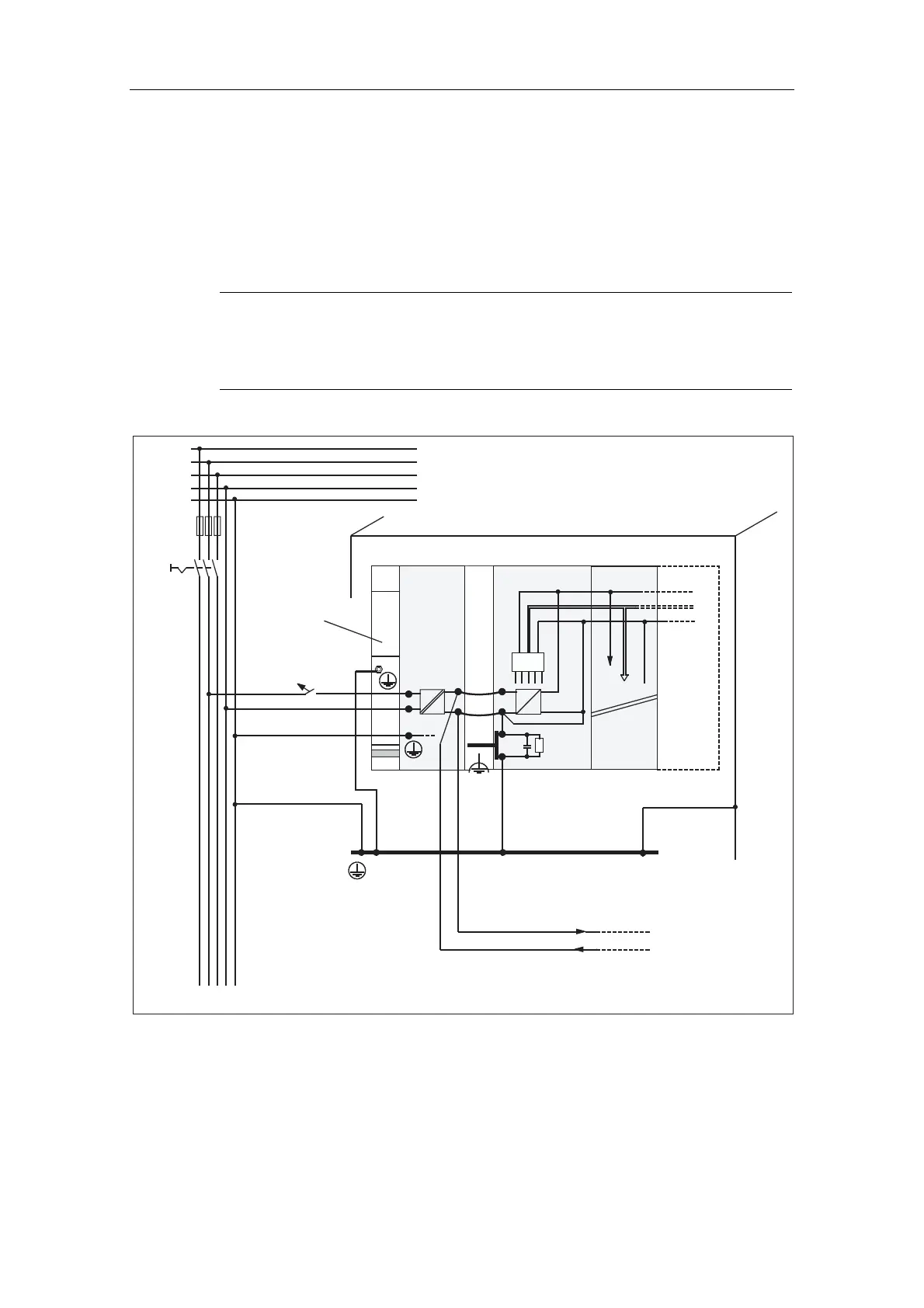

The figure below shows the overall S7-300 configuration (load power supply unit
and grounding concept), with TN-S mains supply.
Apart from powering the CPU, the PS 307 also supplies the load current for the
24 VDC modules.
1RWH
The arrangement of supply connections displayed does not correspond with the
physical arrangement; it was merely selected to give you a clear overview.
N
M
L1
M
PS
S7-300 CPU
µP
L1
L2
L3
N
PE
SM
Rail
Low-voltage distribution
e. g. TN-S system (3 x 400 V)
Ground bus in cabinet
DC 24 V load circuit for DC modules
L+
Signal modules
Cabinet
Figure 5-13 Example: S7-300 with load power supply from PS 307

Siemens CPU 313C Specifications

General

MPI Interface	Yes
Number of digital inputs	24
Number of digital outputs	16
Number of analog inputs	4
Number of analog outputs	2
Supply voltage	24 V DC
High-speed counters	Yes
Bit Operations Execution Time	0.1 µs
Word Operations Execution Time	0.2 µs
Power Consumption	5 W
Dimensions (W x H x D)	40 x 125 x 130 mm
Operating Temperature	0 to 60 °C
Communication Interfaces	MPI
Programming Languages	LAD, FBD, STL
Product type designation	CPU 313C
Weight	490 g
