Siemens CPU 313C Hardware And Installation Guide

,QVWDOODWLRQ
S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
A5E00105492-03
6-5
'LPHQVLRQRIWKHPRXQWLQJKROHV

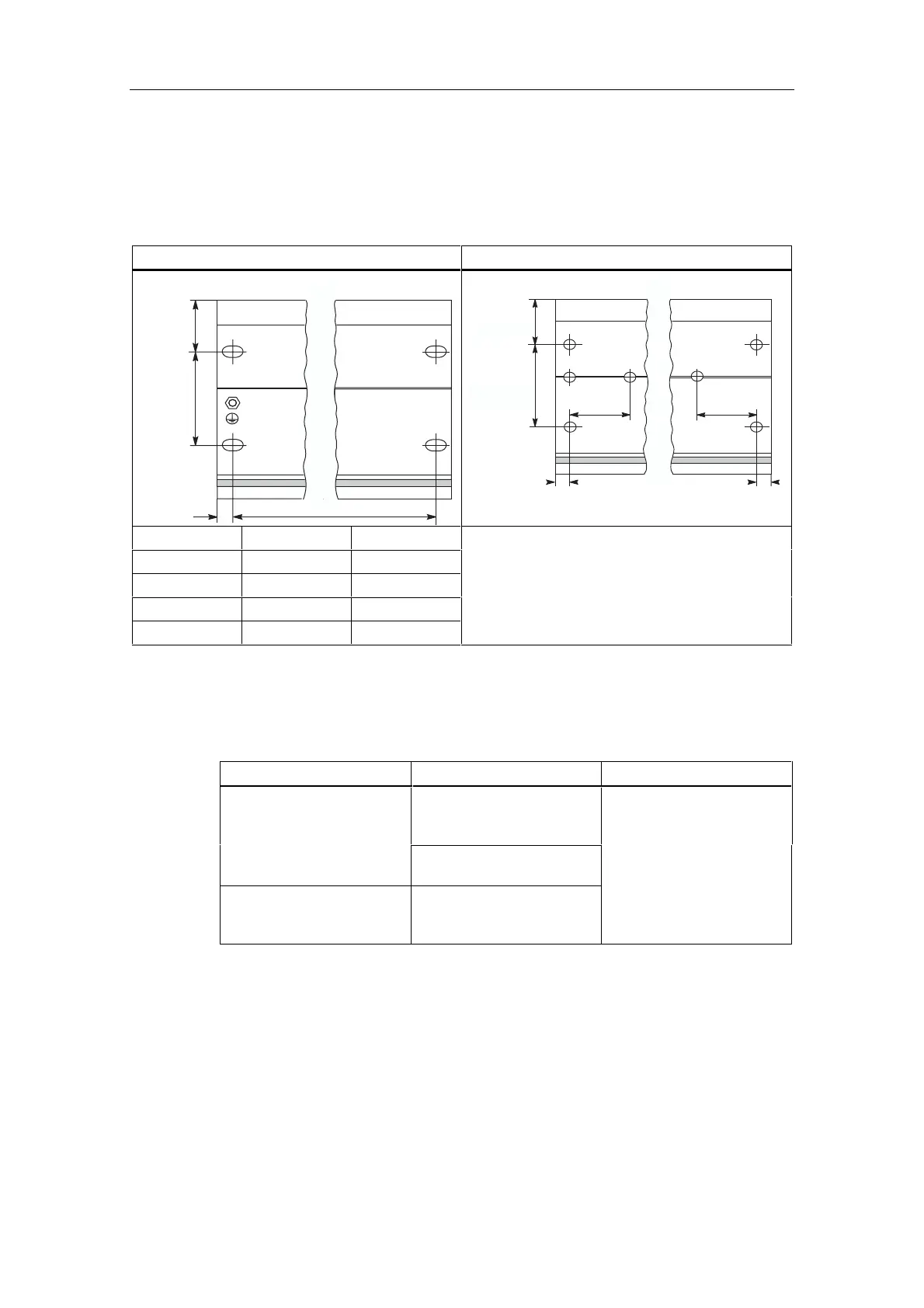

The mounting hole dimensions for the rail are shown in the table below.
Table 6-3 Mounting holes for rails
³6WDQGDUG´UDLO PUDLO
32.5 mm
57.2 mm
a
b
32,5 mm
57,2 mm
15 mm
ca.
500 mm
ca.
500 mm
15 mm
_ _ __
32.5 mm
57.2 mm
Length of rail Dimension a Dimension b
160 mm 10 mm 140 mm
482.6 mm 8.3 mm 466 mm
530 mm 15 mm 500 mm
830 mm 15 mm 800 mm
–
)L[LQJVFUHZV
You can use the following type of screw to mount the rails:
)RU 7\SHRIVFUHZ 'HVFULSWLRQ
Cylindrical head screw M6 to
ISO 1207/ISO 1580
(DIN 84/DIN 85)
Lateral fixing screws
M6 hexagonal head screw to
ISO 4017 (DIN 4017)
additional fixing screws
(only 2 m rail)
Cylindrical head screw M6 to
ISO 1207/ISO 1580
(DIN 84/DIN 85)
Choose a suitable screw
length for your assembly.
You also need size 6.4
washers to ISO 7092
(DIN 433)


Siemens CPU 313C Specifications

General

MPI Interface	Yes
Number of digital inputs	24
Number of digital outputs	16
Number of analog inputs	4
Number of analog outputs	2
Supply voltage	24 V DC
High-speed counters	Yes
Bit Operations Execution Time	0.1 µs
Word Operations Execution Time	0.2 µs
Power Consumption	5 W
Dimensions (W x H x D)	40 x 125 x 130 mm
Operating Temperature	0 to 60 °C
Communication Interfaces	MPI
Programming Languages	LAD, FBD, STL
Product type designation	CPU 313C
Weight	490 g
