Siemens CPU 313C Hardware And Installation Guide

:LULQJ
S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
A5E00105492-03
7-13
 /DEHOLQJWKH0RGXOH,2
,QWURGXFWLRQ
The labeling strips are used to document the assignment between inputs/outputs of
the modules and the sensors/actuators of your plant.
You must use the labeling strips, depending on the module:
Table 7-7 Assigning the labeling strips to modules
0RGXOH /DEHOLQJVWULS
2UGHU1R
Signal modules (not 32-channel),
Function modules,
Communication module CP 342-2
6ES7 392-2XX00-0AA0
Signal modules (32-channel) 6ES7 392-2XX10-0AA0
/DEHOLQJDQGLQVHUWLQJODEHOLQJVWULSV
1. Label the strips with the addresses of the sensors/actuators.
2. Slide the labeled strips into the front panel.
CPU
PS

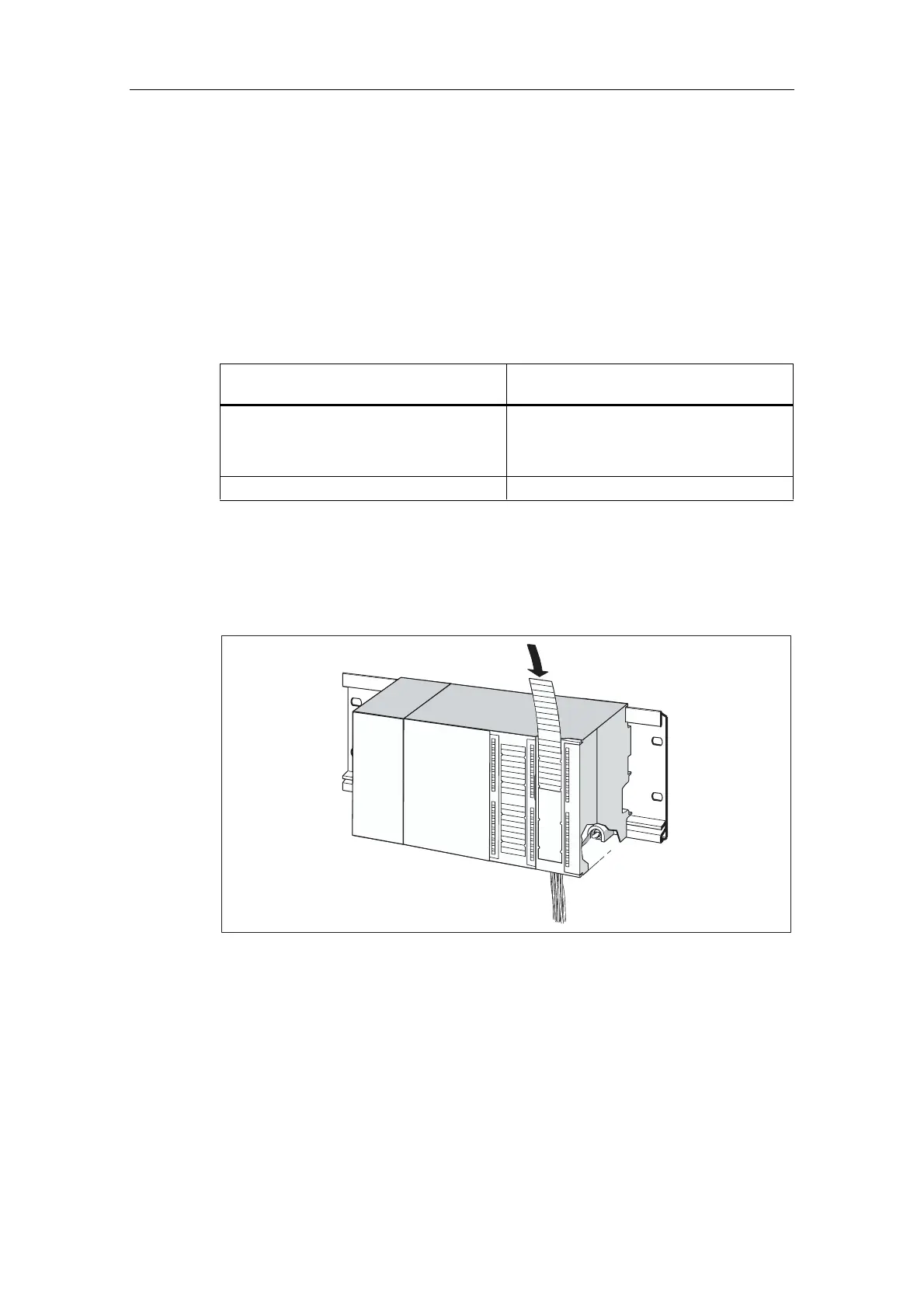

Figure 7-5 Slide the labeled strips into the front panel
7LS
Templates for labeling strips are available on the Internet at
http://www.ad.siemens.de/csinfo under article ID 11978022.

Siemens CPU 313C Specifications

General

MPI Interface	Yes
Number of digital inputs	24
Number of digital outputs	16
Number of analog inputs	4
Number of analog outputs	2
Supply voltage	24 V DC
High-speed counters	Yes
Bit Operations Execution Time	0.1 µs
Word Operations Execution Time	0.2 µs
Power Consumption	5 W
Dimensions (W x H x D)	40 x 125 x 130 mm
Operating Temperature	0 to 60 °C
Communication Interfaces	MPI
Programming Languages	LAD, FBD, STL
Product type designation	CPU 313C
Weight	490 g
