Siemens CPU 313C Hardware And Installation Guide

&RPPLVVLRQLQJ
S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
A5E00105492-03
9-33
([DPSOH

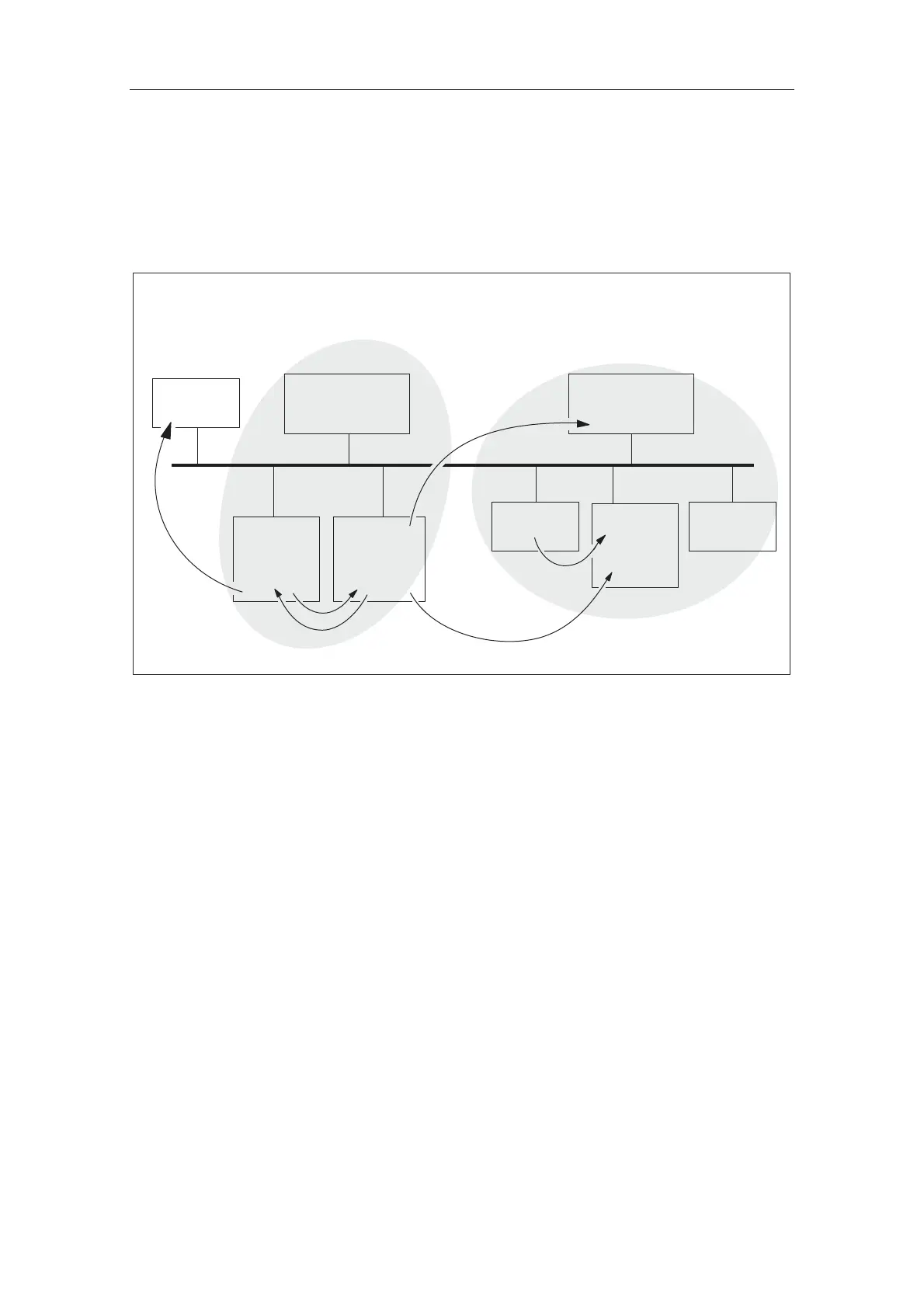

The sample in the figure below shows the relationships you can configure for direct
data exchange. In the figure, all DP masters DP slaves are a CPU 31x-2 DP/31xC-
2 DP respectively. Note that other DP slaves (ET 200M, ET 200X, ET 200S) can
only operate as sending station.
CPU
DP master 1
PROFIBUS
CPU
DP slave 3
DP slave 5
CPU
DP slave 1
DP master
system 1
DP master
system 2
CPU
DP master 2
CPU
DP slave 2
CPU
DP slave 4
Figure 9-8 Direct data exchange with CPUs 31x-2 DP/31xC-2 DP

Siemens CPU 313C Specifications

General

MPI Interface	Yes
Number of digital inputs	24
Number of digital outputs	16
Number of analog inputs	4
Number of analog outputs	2
Supply voltage	24 V DC
High-speed counters	Yes
Bit Operations Execution Time	0.1 µs
Word Operations Execution Time	0.2 µs
Power Consumption	5 W
Dimensions (W x H x D)	40 x 125 x 130 mm
Operating Temperature	0 to 60 °C
Communication Interfaces	MPI
Programming Languages	LAD, FBD, STL
Product type designation	CPU 313C
Weight	490 g
