S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
5-18 A5E00105492-03
 ,QVWDOOLQJDQ6ZLWK*URXQGHG5HIHUHQFH3RWHQWLDO
,QWURGXFWLRQ
In an S7-300 configuration with grounded reference potential occurring interference
current is dissipated to the ground conductor/ to ground. A grounding slide contact
is used for this except with CPU 31xC.
1RWH
Your CPU already is supplied complete with a grounded reference potential,
so if you wish to install an S7-300 with grounded reference potential, then you do
not need to make any changes to your CPU.
*URXQGHGUHIHUHQFHSRWHQWLDORIWKH&38[
The diagram illustrates an S7-300 configuration with ungrounded reference
potential.
M
L+
M
10M
<100 nF
M
1
3
2

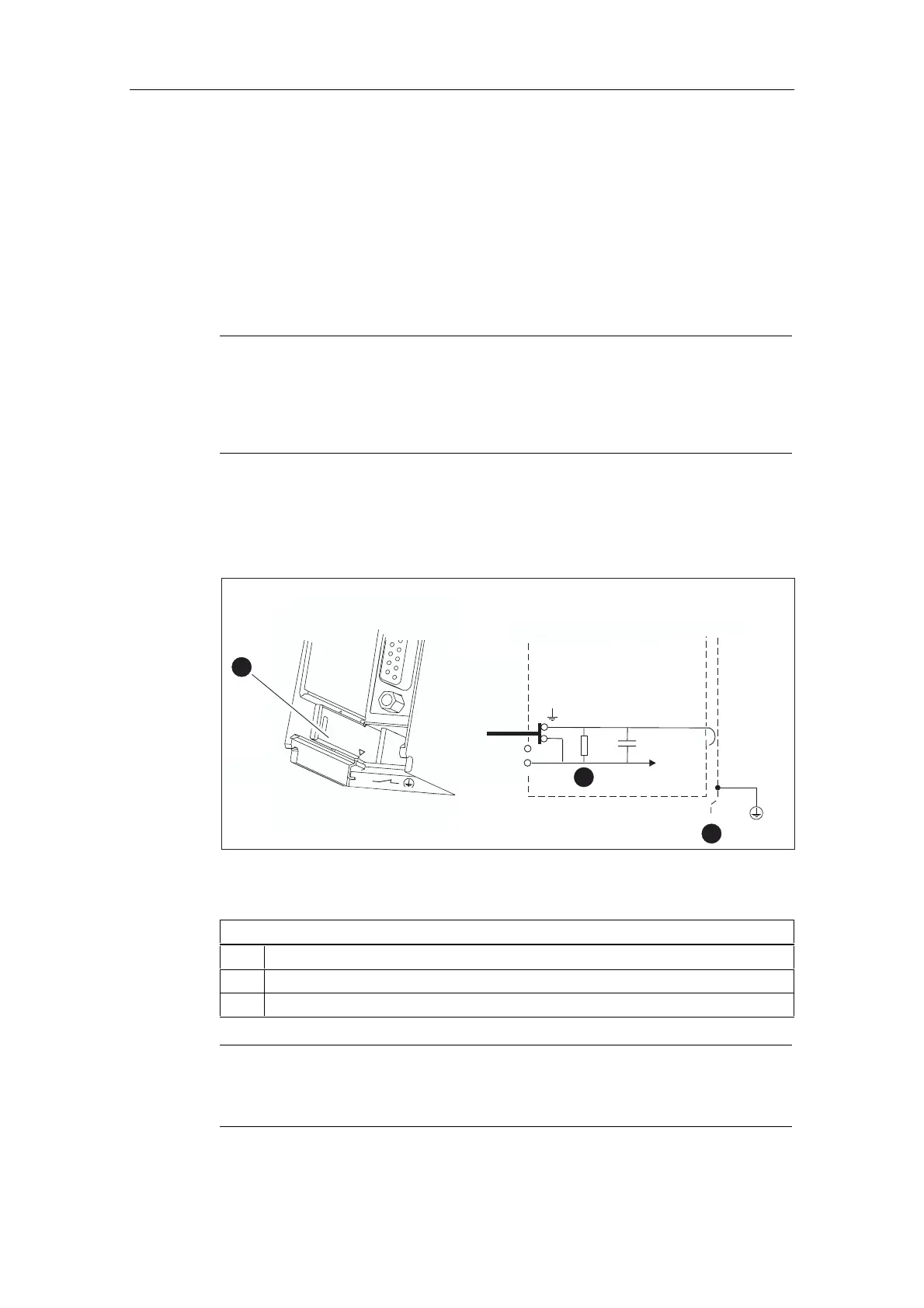

Figure 5-7 CPU with grounded reference potential (as supplied)
7KHGLDJUDPLOOXVWUDWHVXQGHUQXPEHU
 Grounding slide contact in grounded state
 Ground of internal CPU circuitry
 Rail
1RWH
If you configure an S7-300 with
g
rounded reference potential,
y
ou must not pull out
the grounding slide contact.

Siemens CPU 313C Specifications

General

MPI Interface	Yes
Number of digital inputs	24
Number of digital outputs	16
Number of analog inputs	4
Number of analog outputs	2
Supply voltage	24 V DC
High-speed counters	Yes
Bit Operations Execution Time	0.1 µs
Word Operations Execution Time	0.2 µs
Power Consumption	5 W
Dimensions (W x H x D)	40 x 125 x 130 mm
Operating Temperature	0 to 60 °C
Communication Interfaces	MPI
Programming Languages	LAD, FBD, STL
Product type designation	CPU 313C
Weight	490 g
