Siemens CPU 313C Hardware And Installation Guide

&RPPLVVLRQLQJ
S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
A5E00105492-03
9-7
&RQQHFWLQJWKH3*WRVHYHUDOQRGHV
6WDWLRQDU\3*
1. Use bus connectors to connect a stationary PG in the MPI subnet to the other
nodes of the MPI subnet.

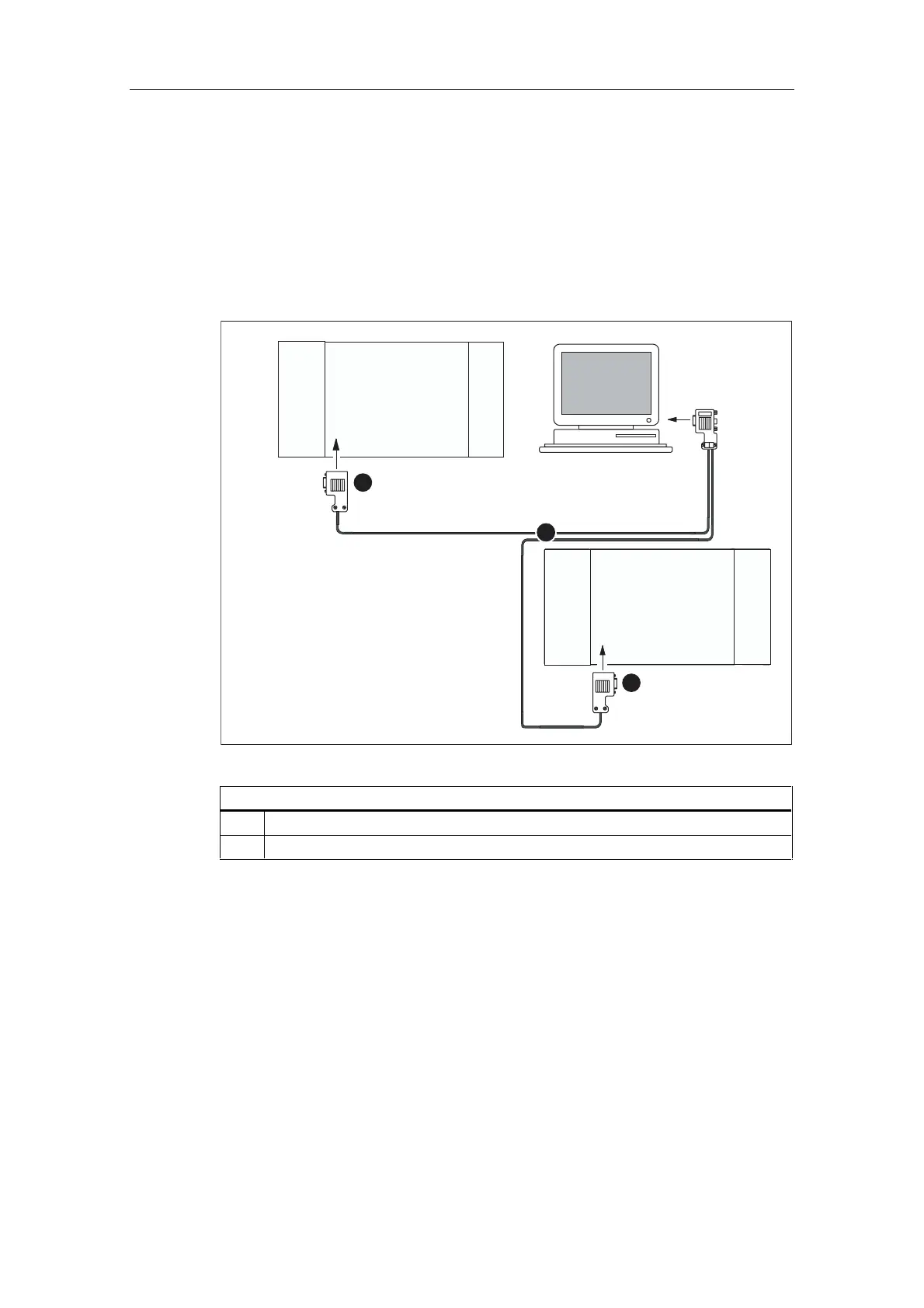

The following picture illustrates two networked S7-300s which are connected to
one another using bus connectors.
PG
SF
BUSF
DC5V
FRCE
RUN
ST OP
SIEM EN S
CPU
PS
2
SM
SM
2
1
CPU
PS
Figure 9-2 Connecting a PG to multiple S7-300 PLCs
7KHGLDJUDPLOOXVWUDWHVXQGHUQXPEHU
 PROFIBUS bus cable
 Connector with inserted terminating resistor


Siemens CPU 313C Specifications

General

MPI Interface	Yes
Number of digital inputs	24
Number of digital outputs	16
Number of analog inputs	4
Number of analog outputs	2
Supply voltage	24 V DC
High-speed counters	Yes
Bit Operations Execution Time	0.1 µs
Word Operations Execution Time	0.2 µs
Power Consumption	5 W
Dimensions (W x H x D)	40 x 125 x 130 mm
Operating Temperature	0 to 60 °C
Communication Interfaces	MPI
Programming Languages	LAD, FBD, STL
Product type designation	CPU 313C
Weight	490 g
