S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
6-10 A5E00105492-03
,QVHUWLQJVORWQXPEHUV
1. Hold the corresponding slot number in front of the relevant module.
2. Insert the pin into the opening on the module (1).
3. Press the slot number into the module (2). The slot number breaks off from the
wheel.
The figure below illustrates this procedure. The slot number labels are included
with the CPU.
1
2
CPU
PS

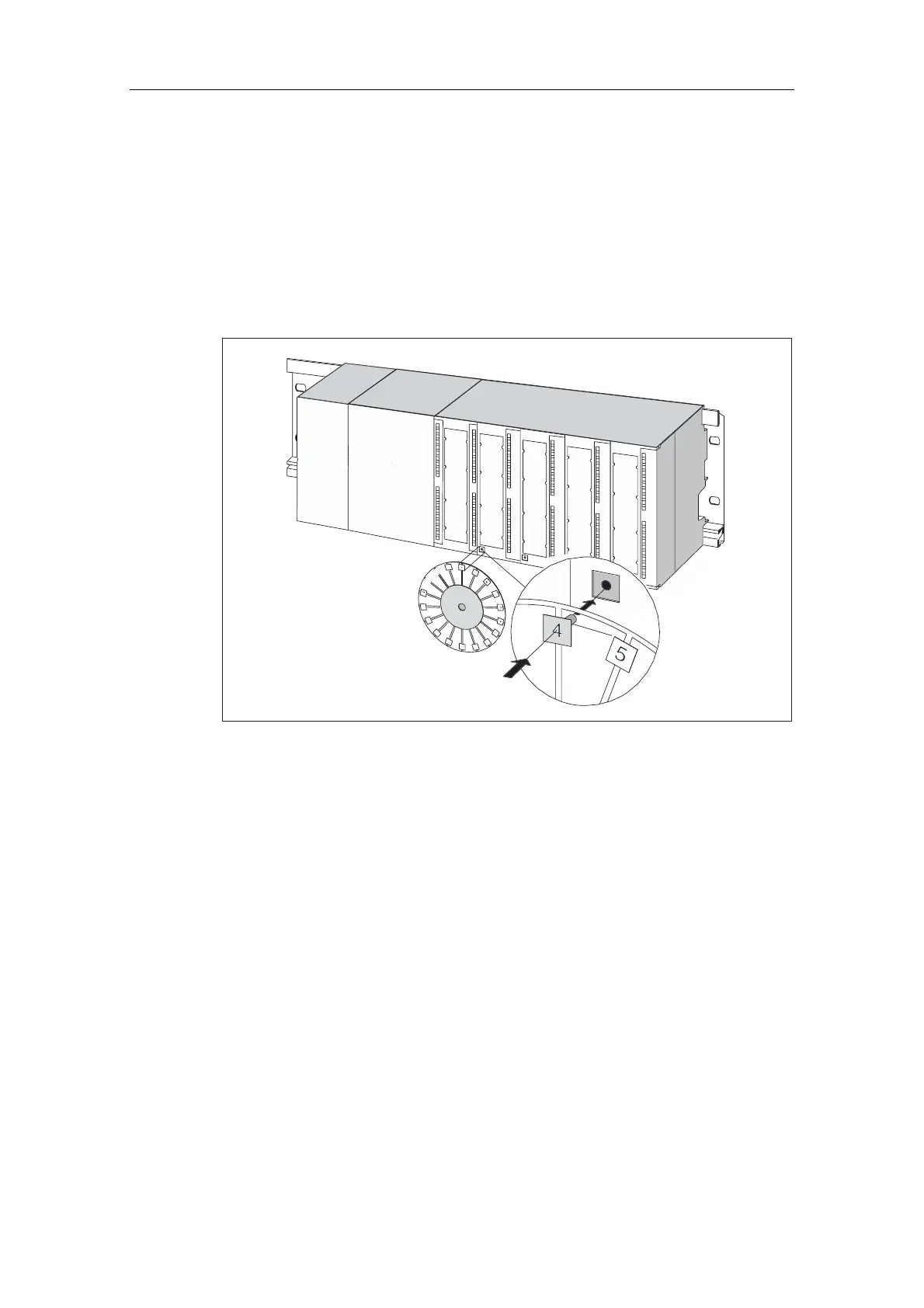

Figure 6-3 Inserting slot numbers in modules

Siemens CPU 313C Specifications

General

MPI Interface	Yes
Number of digital inputs	24
Number of digital outputs	16
Number of analog inputs	4
Number of analog outputs	2
Supply voltage	24 V DC
High-speed counters	Yes
Bit Operations Execution Time	0.1 µs
Word Operations Execution Time	0.2 µs
Power Consumption	5 W
Dimensions (W x H x D)	40 x 125 x 130 mm
Operating Temperature	0 to 60 °C
Communication Interfaces	MPI
Programming Languages	LAD, FBD, STL
Product type designation	CPU 313C
Weight	490 g
