Siemens CPU 313C Hardware And Installation Guide

&RQILJXULQJ
S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
A5E00105492-03
5-21
([DPSOH&38[&

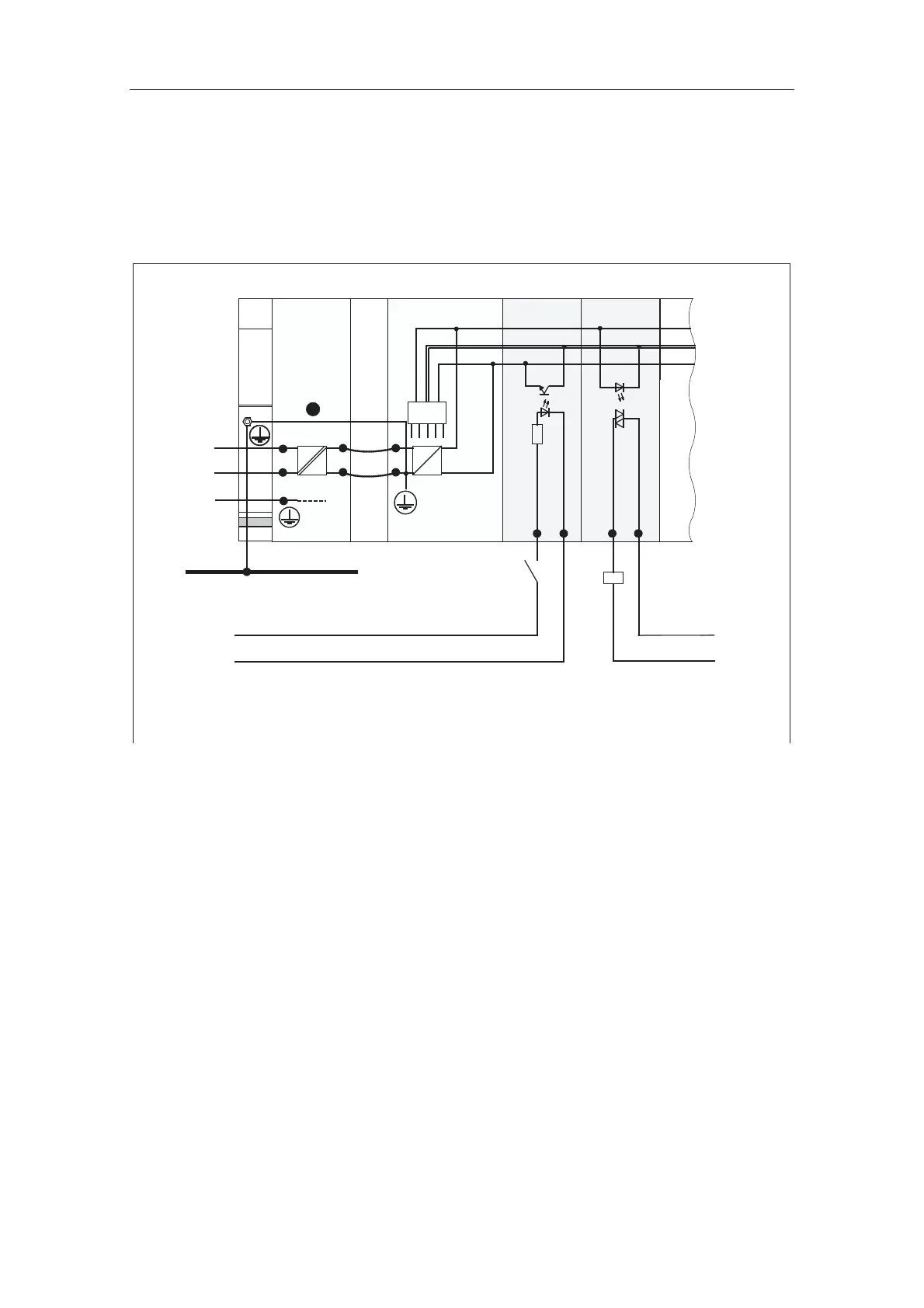

The figure below shows a sample configuration of a CPU 31xC with isolated
modules. The connection is automatically generated for the CPU 31xC (1).
N
L1
L+
M
PS
S7-300 CPU
µP
L1
N
M
external
L+
U
internal
M
internal
Data
L1
N
DI
DO
PE
Ground bus
in cabinet
AC 230 V load
power supply
DC 24 V load power supply
1
Figure 5-9 Configuration with isolated modules

Siemens CPU 313C Specifications

General

MPI Interface	Yes
Number of digital inputs	24
Number of digital outputs	16
Number of analog inputs	4
Number of analog outputs	2
Supply voltage	24 V DC
High-speed counters	Yes
Bit Operations Execution Time	0.1 µs
Word Operations Execution Time	0.2 µs
Power Consumption	5 W
Dimensions (W x H x D)	40 x 125 x 130 mm
Operating Temperature	0 to 60 °C
Communication Interfaces	MPI
Programming Languages	LAD, FBD, STL
Product type designation	CPU 313C
Weight	490 g
