2BStructure and function
22BAccessories
3
47 |
138
Building Technologies
007004_t_en_--
Fire Safety
2015-11-04

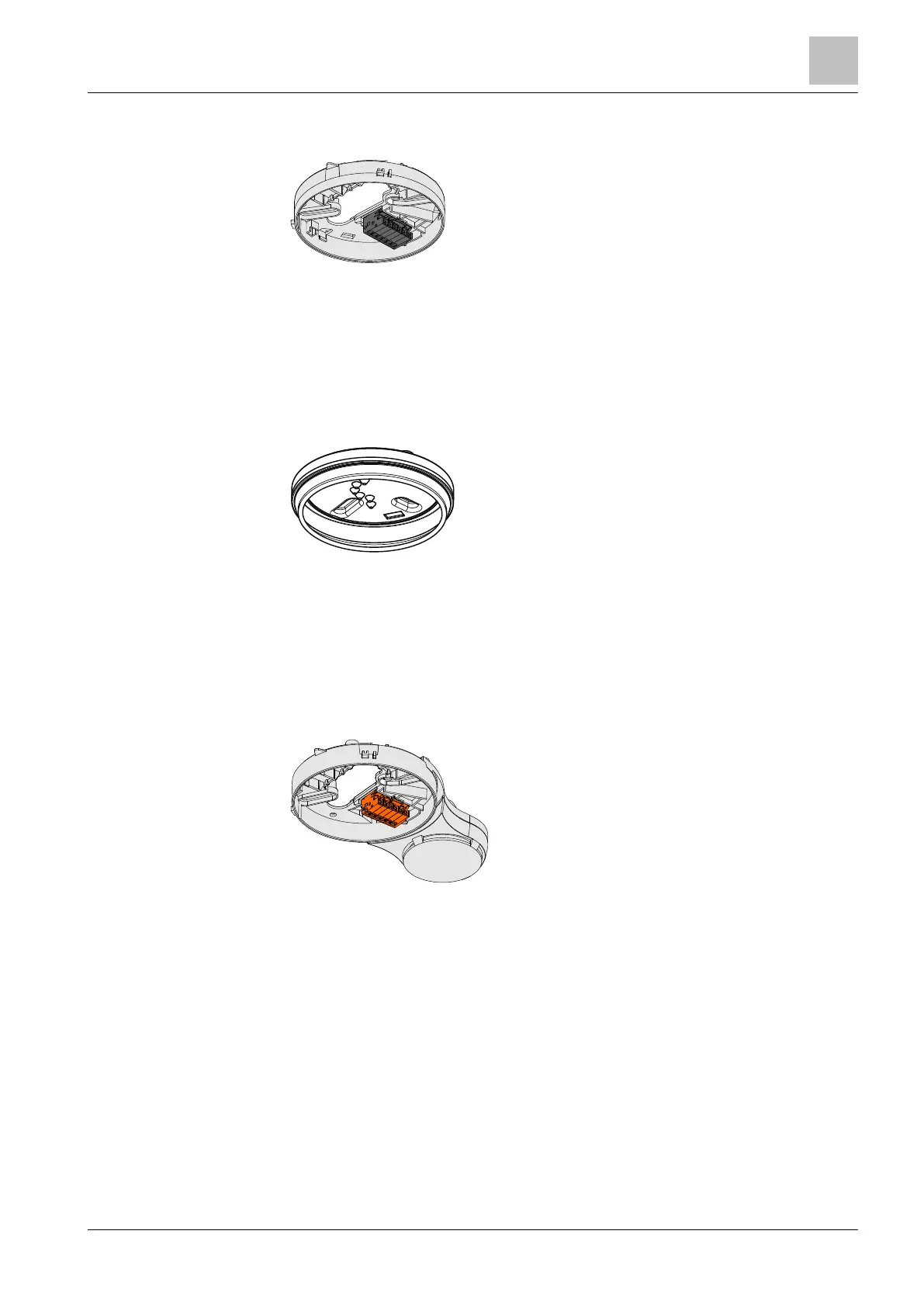

3.7.4 Collective detector base, flat FDB202
For the mounting of point detectors
For the recess-mounted cable entry
Directly attached to the mounting surface
Collective
Gray terminal block
Compatible with:
Order no.: S54319-F3-A1
See also
Flat detector base FDB202/222 [➙ 74]
3.7.5 Sealing element FDBZ295
To protect an alarm sounder or point detector against dirt
and splash water
Cannot be used in conjunction with designation plate
FDBZ291
A detector base FDB2x1 or FDB2x1-AA must be used in
addition to the alarm sounder or point detector
Compatible with:
Order no.: S54319-F10-A1
See also
Sealing element FDBZ295 [➙ 78]
3.7.6 Addressed sounder base FDSB291
For acoustic alarming in the case of an event
For the FDnet detector line
Orange terminal block
With two micro terminals
For the recess-mounted cable entry
For surface-mounted cable entry, up to 6 mm cable
diameter
Compatible with:
Not compatible with:
You will find more information in document 007025
Order no.: A5Q00001647
See also
Applicable documents [➙ 9]
