4BMounting / Installation
40BBase adapter FDB241
5
85 |
138
Building Technologies
007004_t_en_--
Fire Safety
2015-11-04
5.10 Base adapter FDB241
Base adapter FDB241 can be used to install the point detector FDOOT241-A3 or
FDOOT241-A4 on detector bases SPF3600 or DB1131A. The point detectors
FDOOT241-A3 and FDOOT241-A4 can be used to replace point detectors from
the AnalogPLUS and SIGMALOOP detector families. You will find more
information in the 'List of compatibility' and in document A6V10323158.
The existing detector type can be set with a jumper.
The base adapter FDB241 cannot be used together with the detector heating unit.
Mounting and removal of base adapter FDB241 on detector base

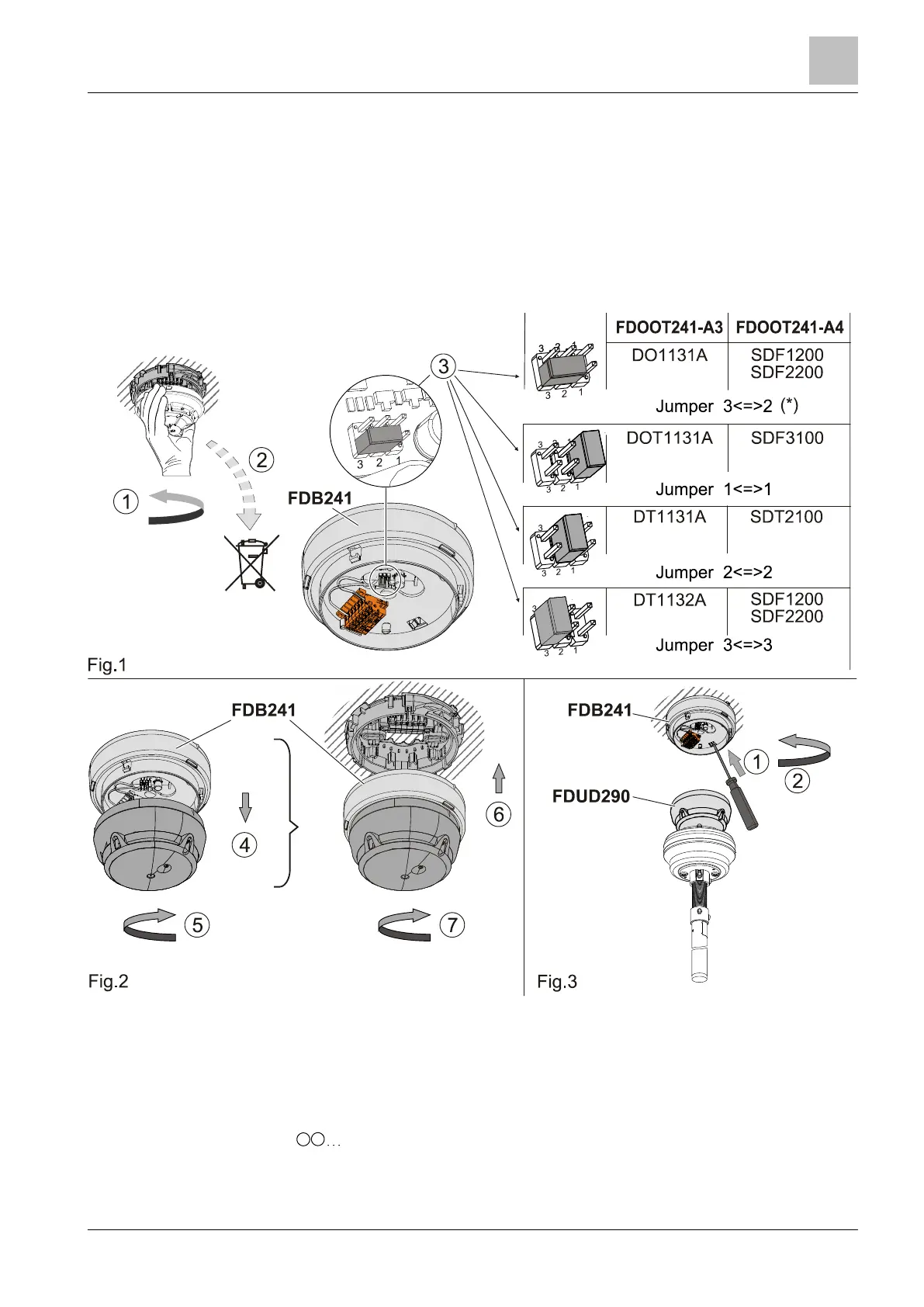

Fig. 1
Removal and disposal of existing detector
Jumper position on base adapter for existing detector type
Fig. 2
Mounting of base adapter on detector and detector base
Fig. 3
Disengaging lock to remove FDB241 with tools
Mounting sequence
*
Jumper position when delivered: 3<=>2
