5.13 Base adapter FDB299
● The base adapter FDB299 can be used to install the detector FDOOT241-A9
on the existing detector base SPF600 or DB1101A.
● The base adapter FDB299 cannot be used together with the detector heating
unit.
Mounting and removal of base adapter FDB299 on detector base

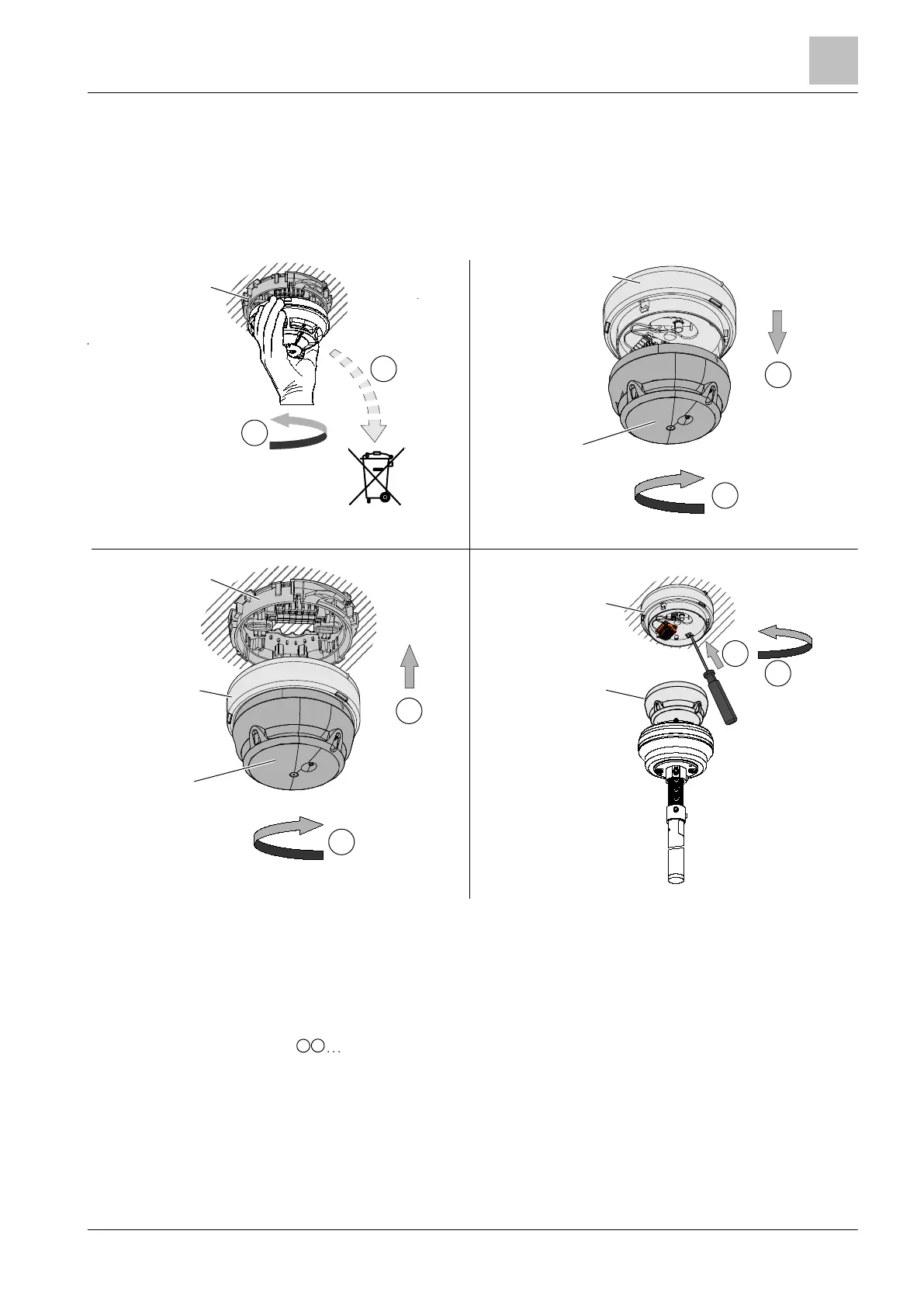

Fig. 1 Removal and disposal of existing detector
Fig. 2 Mounting of the base adapter on the detector
Fig. 3 Mounting on the detector base
Fig. 4 Disengaging lock to remove FDB299 with tools
Mounting sequence
Fig.3
Fig.1 Fig.2
Fig.4
4
5
6
1
2
3
FDB299
DB1101A
SPF600
DB1101A
SPF600
FDB299
FDOOT241-A9
FDOOT241-A9
FDUD290
2
FDB299
1
2
1
