EMC-compliant installation (examples)
47 |

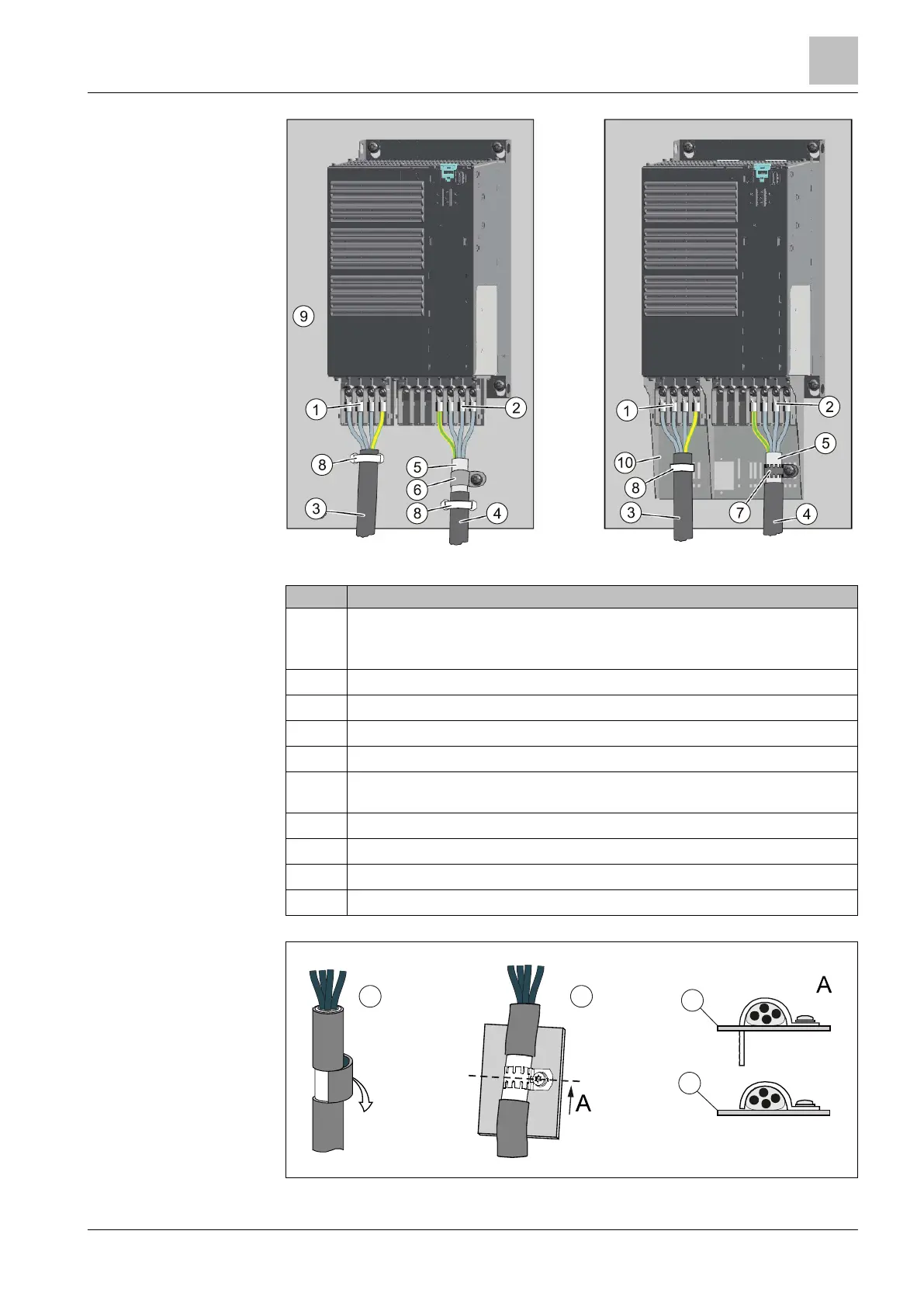

Figure 22: EMC-compliant wiring IP20
1
Line connection cable (unshielded) for Power Modules with integrated line filter.
If you use an external line filter, you will need a shielded cable between the line filter and
the Power Module.
2
Motor connection
3
Line supply cable (unshielded)
4
Motor connection cable (shielded)
5
Cable shield
6
Cable clamps for establishing the connection between the shield and the mounting plate
over a large surface area
7
Serrated collar
8
Cable tie
9
Metal mounting plate (unpainted and with a good electrical conductivity)
10
Shield plate (option)
