Building Technologies Basic Documentation LME7... CC1P7105enr
4 Technical data 17.04.2018
Ionization probe
LME7...
X10-05/2
X10-05/1

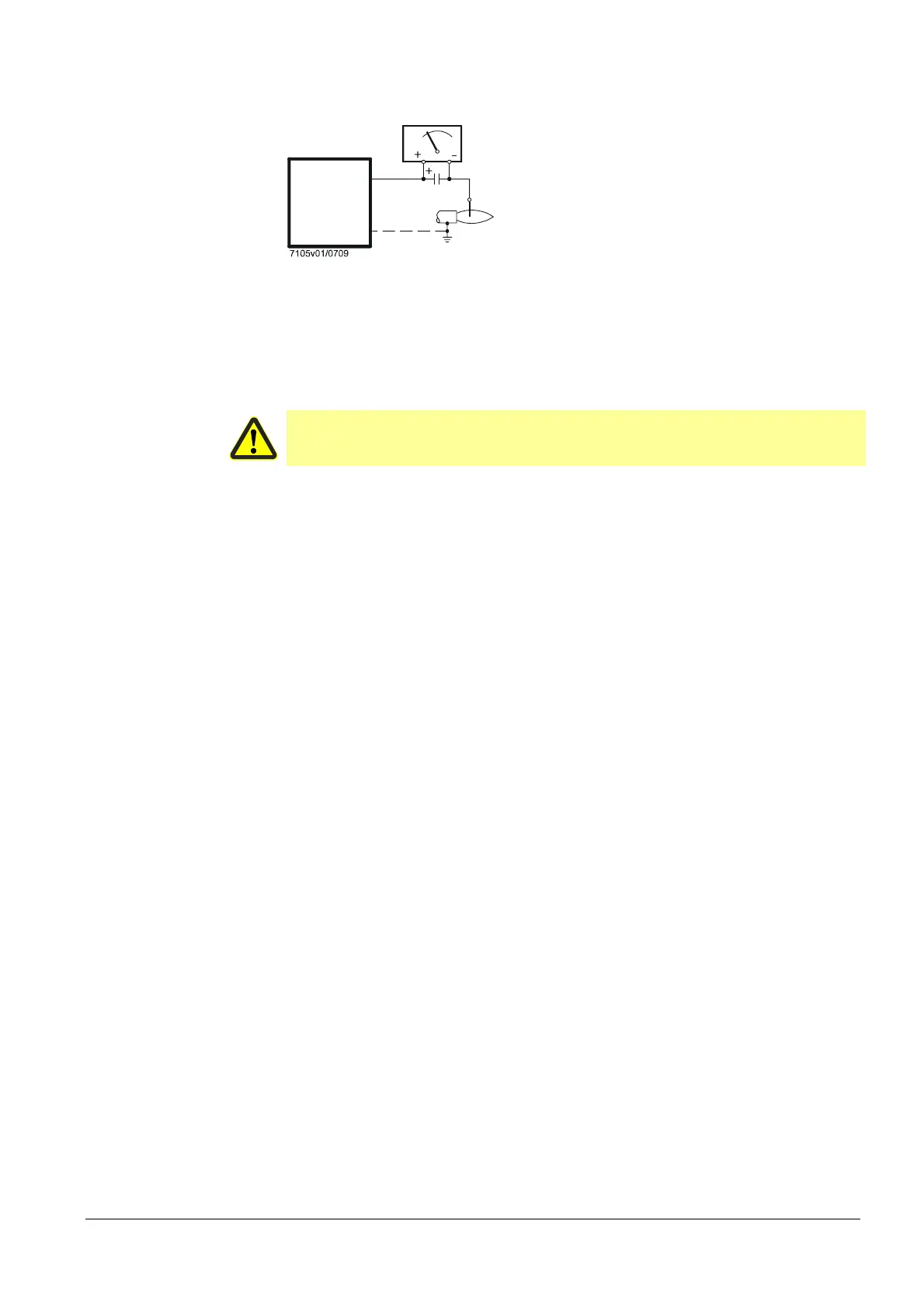

Figure 4: Measuring circuit for ionization probe
Legend
C Electrolytic condenser 100...470 µF; DC 10...25 V
ION Ionization probe
M Microammeter Ri max. 5,000 ς
Warning!
Simultaneous operation of QRA and ionization probe is not permitted!
If not observed, there is a risk of impairment of safety functions.
Measuring circuit for detector
current measurement
