Siemens LME7 Series - Display of Operating Position

58/106
Building Technologies Basic Documentation LME7... CC1P7105en
13 Operation via AZL2 17.04.2018
13.4.1.3. Display of operating position
P
Vhmins%
Bild14/0707

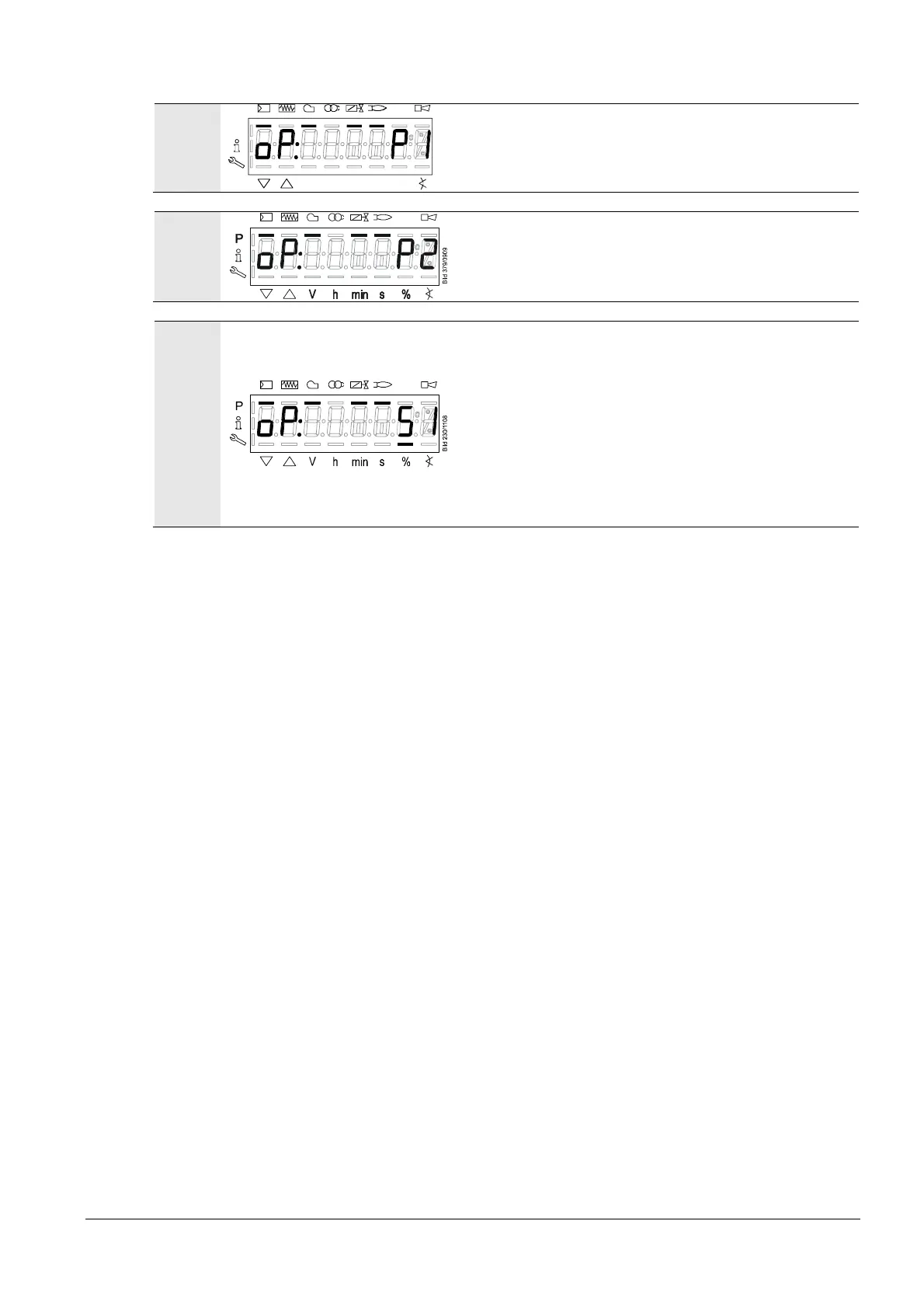

Display oP: P1 means stage 1.
Display after oP is unit-specific.
Display oP: P2 means stage 2.
Display after oP is unit-specific.
Display oP: means modulating operation.
Display after oP: is unit-specific.
Display shows the relative value of the actual position of
actuator (51).
Position of actuator 0° = 0 ς value of potentiometer = 0%
display.
Position of actuator high-fire >0° = >0 ς <1000 ς value of
potentiometer = 100% display.
