13.9 Operating variants of the parameters
The parameters stored in the burner control LME7 can be displayed and changed on
the parameter level.
VSD
A
F
>1 s
Press button combination
VSD
A
F
to display
000: Int.
With , select the parameter group 100:
PArA.
With , select the parameter group 200:
PArA.
Pressing the
/reset
button takes you to
parameter 226: Preignition time.
13.9.1 Parameters without index, with direct display

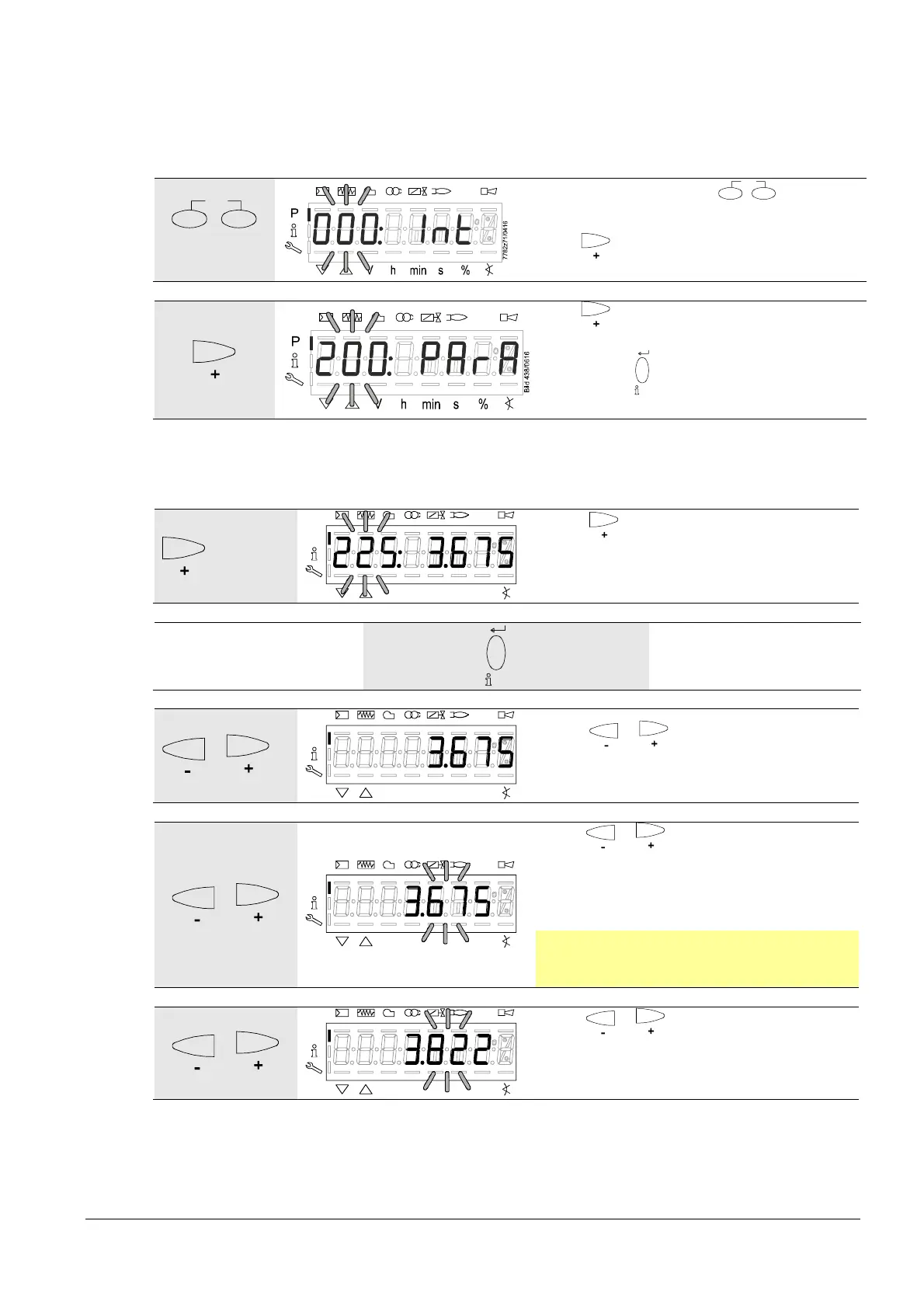

13.9.1.1. Example of parameter 225 (prepurge time) on the parameter level
P
Vh
min
s%
Bild166/1107
Press for prepurge time.
Display: Parameter 225: blinks, value 3.675
does not.
/reset
or
P
Vh
min
s%
Bild167/1107
Press or for editing mode.
Display: 3.675
or
P
Vh
min
s%
Bild168/1107
Press or to shift the former prepurge
time to change mode one place to the left.
Display: Prepurge time 3.675 blinks.
Note:
To detect display errors, the value appears
one place shifted to the left.
or
P
Vh
min
s%
Bild169/1107
Press or for the required prepurge
time.
Display: Prepurge time 3.822 blinks.
