13.6.1 Display of info level
/reset
1…3 s
Press
/reset
until InFo appears.
When releasing
/reset
, you are on the info level.
The info level displays information about the basic unit and operation in general.
Β
Note!
On the info level, you can press or to display the next or the previous parameter.
In place of the button, you can also press
/reset
for <1 second.
Β
Note!
You can press
ESC
or
/reset
for >8 seconds to return to the normal display.
Β
P
Vhmins%
Bild27e/0807
Parameter
Parameter value

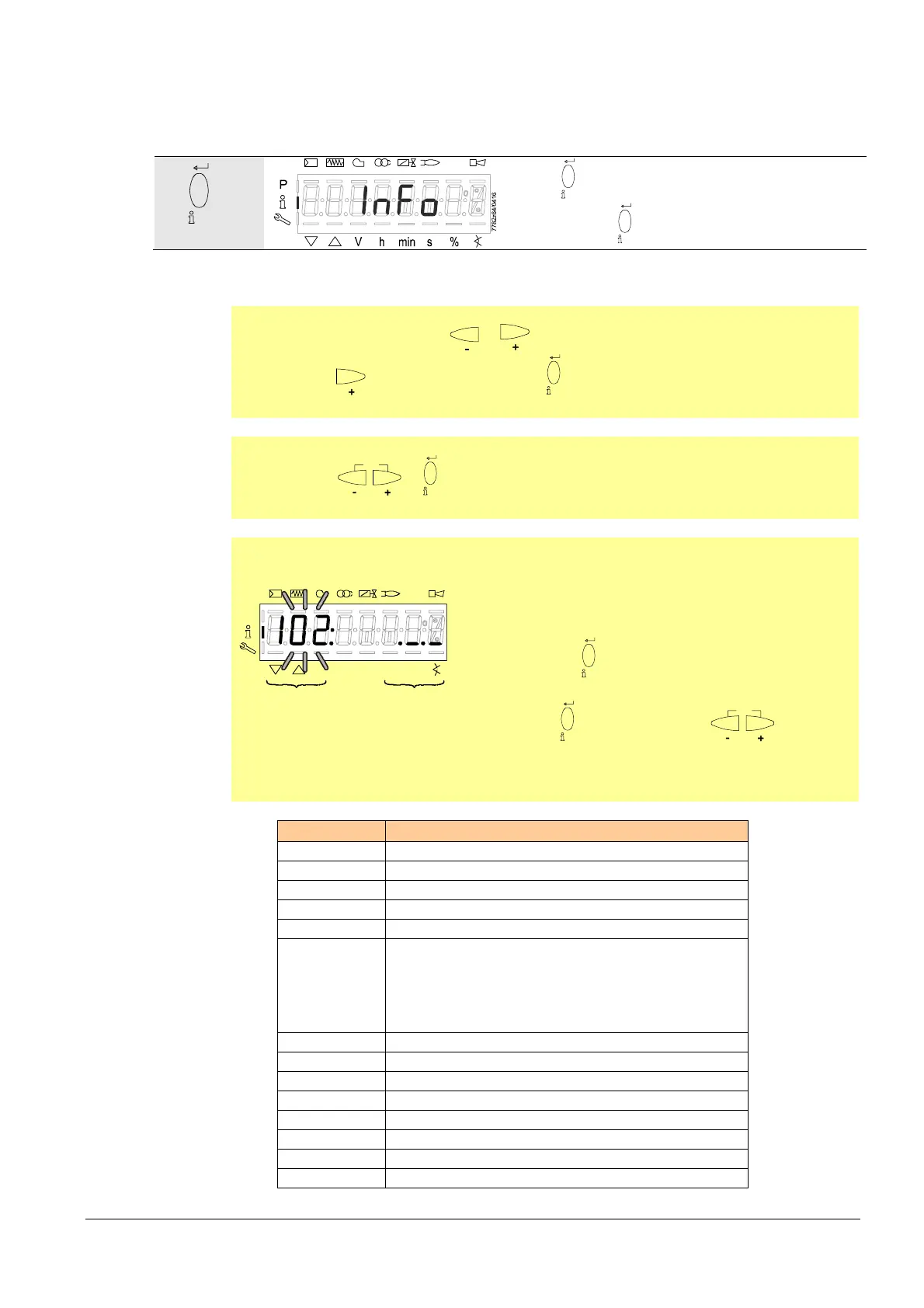

Figure 20: Info level
Note!
No change of value on the info level.
If the display shows .
_
.
_
together with the parameter,
the value may consist of more than 5 digits.
When pressing
/reset
for >1 second and <3 seconds, the
value will be displayed.
By pressing
/reset
for >3 seconds or
ESC
, you
return to the selection of the parameter no. (parameter
number blinks).
No.
Parameter
Info level
102 Identification date
103 Identification number
113 Burner identification
123 Minimum output control step
140 Mode display of display and operating unit AZL2
1 = standard (program phase)
2 = flame 1 (QRA / ION)
3 = flame 2 (QRB / QRC)  not used
4 = active power (power value)
164 Number of startups resettable
166 Total number of startups
170.00 Switching cycles relay K12
170.01 Switching cycles relay K11
170.02 Switching cycles relay K2
170.03 Switching cycles relay K1
171 Max. switching cycles relay
