Normal display is the standard display in normal operation.
15.2.1 Display in standby mode

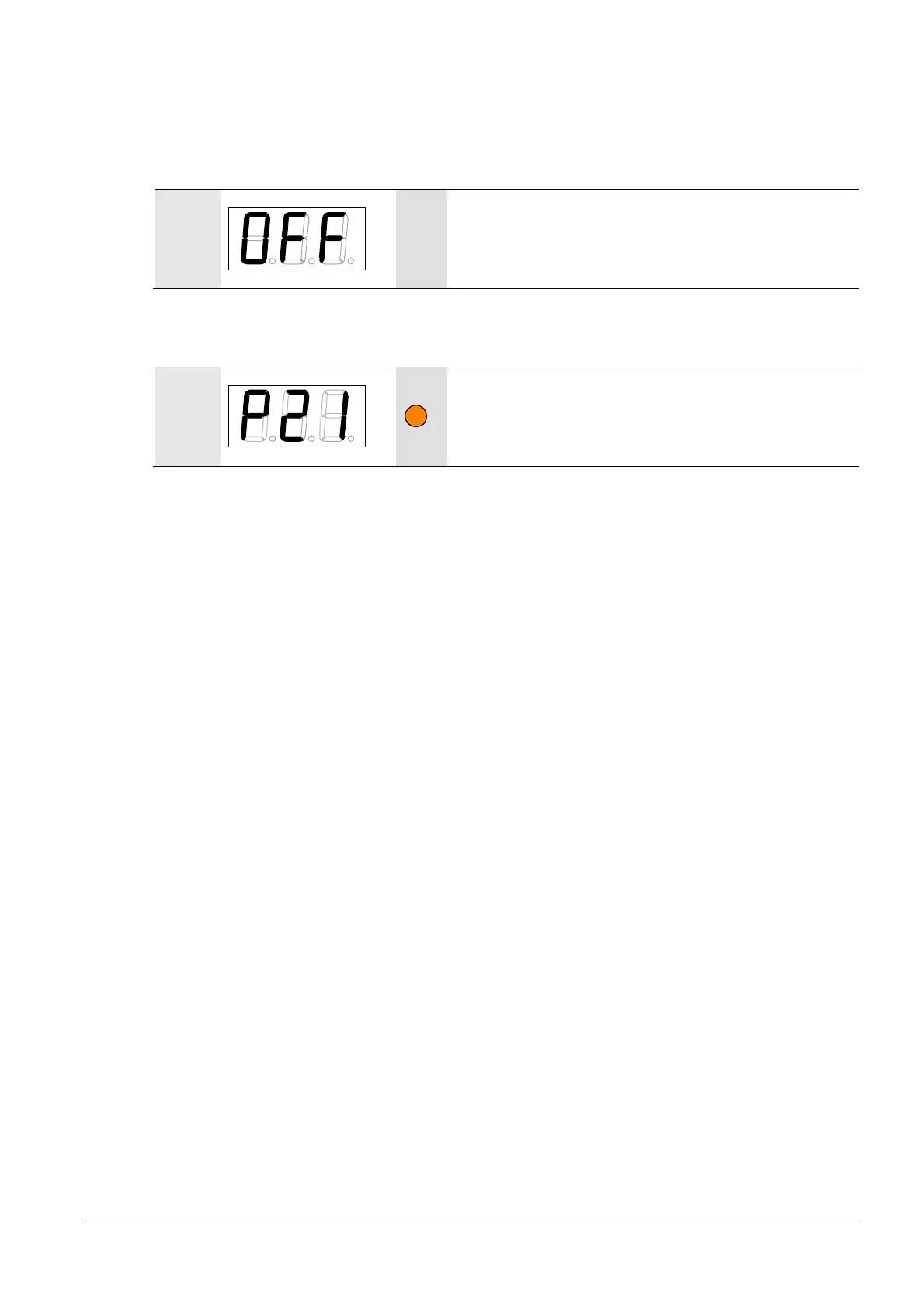

LCD Bild 02/0908
Unit is in standby mode.
15.2.2 Display during startup / shutdown
15.2.2.1. Display of program phases
LCD Bild 03/0908
The unit is in Phase 21. The individual program phases are
displayed in accordance with the program sequence.
For color display of signal lamp, see List of phase display.
