Introduction
2.2 Product overview
SCALANCE X-300
Operating Instructions, 10/2010, A5E01113043-10
21

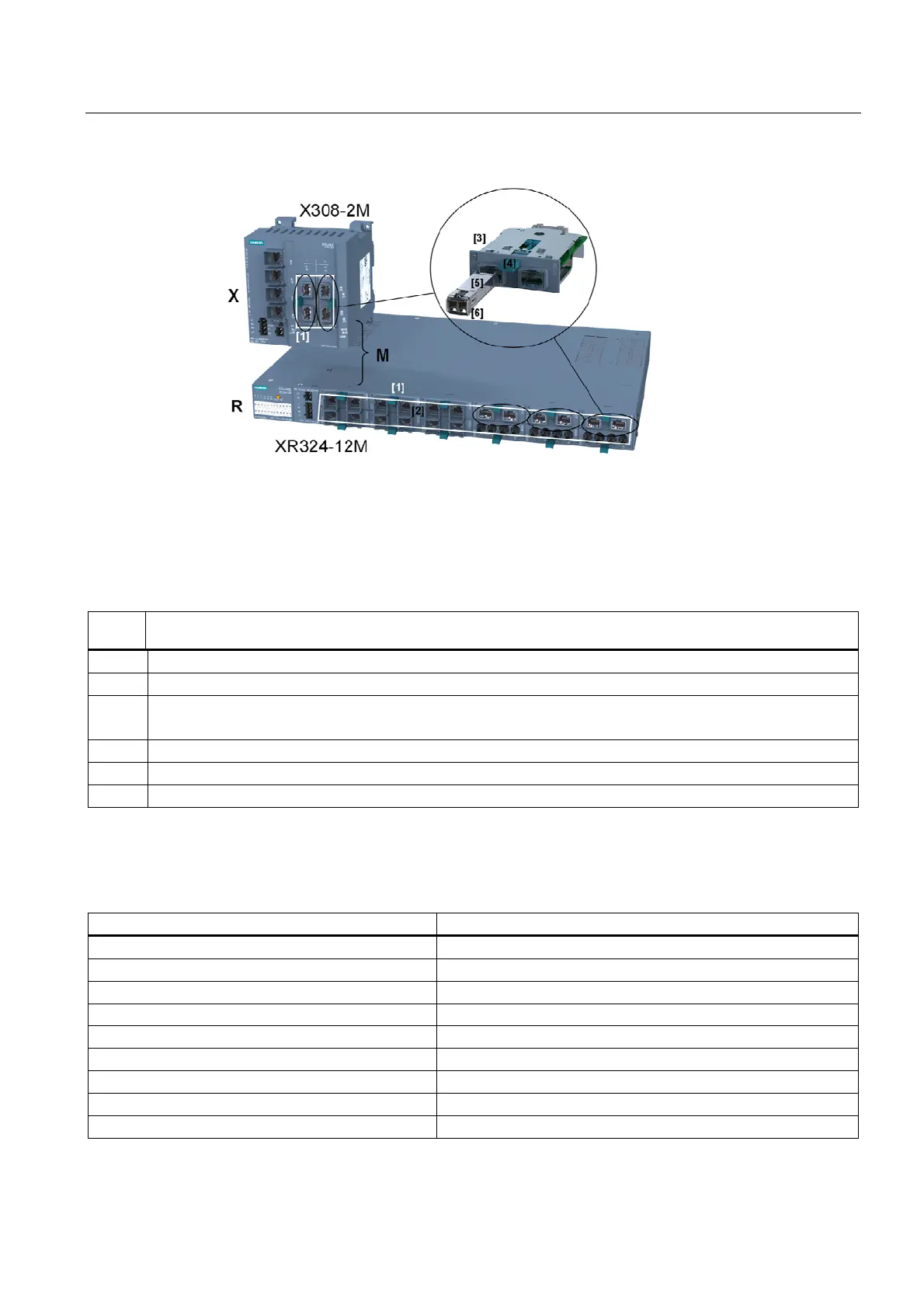

Figure 2-1 Designs of the IE Switch X-300, example with modular devices (M)
The figure shows the X308-2M and XR324-12M switches with slots for media modules
marked
Table 2- 1 Legend
No. in
Fig.
Components for the modular devices (M):
[1] Module slots for MM900 media modules
[2] Slots for 2-port MM900 media modules
[3] SFP media module (MM992-2SFP) for MM900 media modules
The SFP transceivers (small form-factor pluggable) may only be used in the SFP media module.
[4] Grip on the media module for installing/removing
[5] SFP transceiver
[6] Clip on the SFP for installation/removal
2.2.3 X-300 product group
Type Order number
X304-2FE 6GK5 304-2BD00-2AA3
X306-1LD FE 6GK5 306-1BF00-2AA3
X307-3 6GK5 307-3BL00-2AA3
X307-3LD 6GK5 307-3BM00-2AA3
X308-2 6GK5 308-2FL00-2AA3
X308-2LD 6GK5 308-2FM00-2AA3
X308-2LH 6GK5 308-2FN00-2AA3
X308-2LH+ 6GK5 308-2FP00-2AA3
X310 6GK5 310-0FA00-2AA3
