SCALANCE X-300
Operating Instructions, 10/2010, A5E01113043-10
251
Graphics
11
11.1 Dimension drawing
Note
The IE Switches X-300 are available in small, medium and large variants.
The dimension drawings are shown below.
Small design

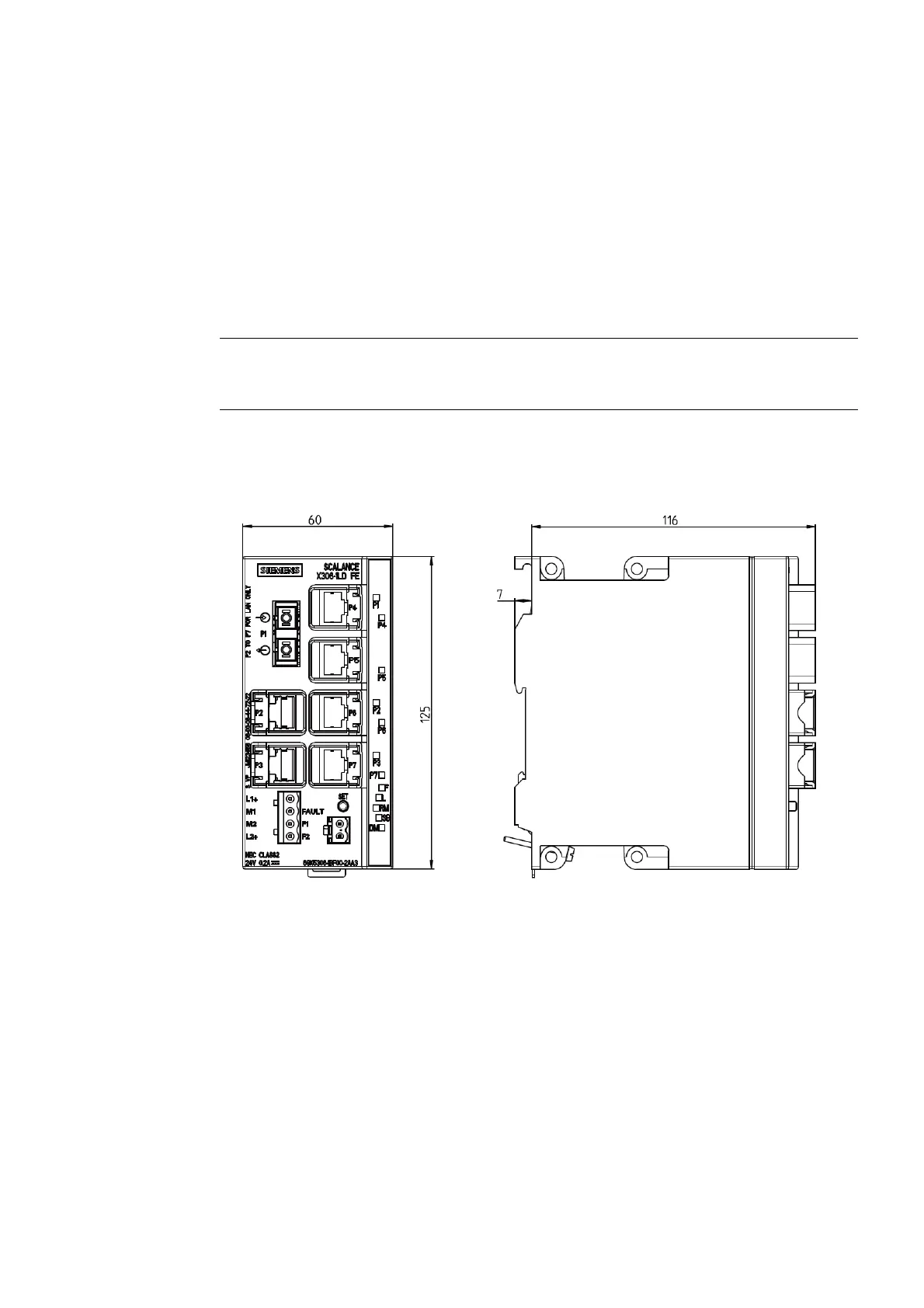

Figure 11-1 Small design dimension drawing (example used here SCALANCE X306-1LD FE)
