Removing the C-PLUG from the IE Switch X-300
It is only necessary to remove the C-PLUG if the IE Switch develops a fault.
The C-PLUG can be removed from the slot using flat pliers, tweezers, or a small screwdriver.

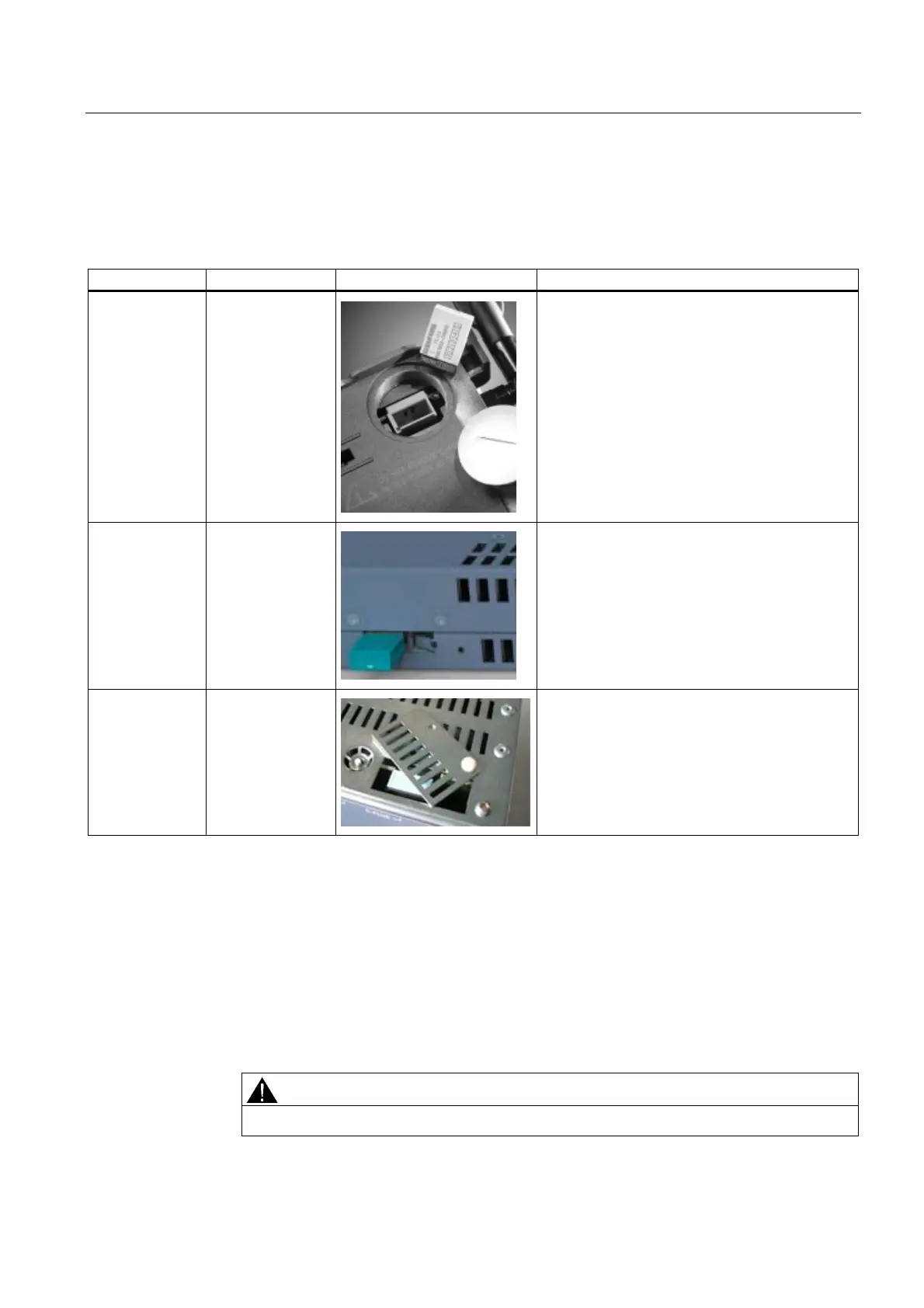

Product group Slot Figure
X-300
X-300M
Rear of the device
1. Remove the screw cover.
2. Remove the C-PLUG.
3. Close the screw cover again correctly.
XR-300M Rear of the device
- right
1. Remove the cover.
2. Remove the C-PLUG.
3. Close the cover again correctly.
X-300EEC Top of the housing 1. Open the slider.
2. Remove the C-PLUG.
3. Close the slider.
4.5 Components of the product
Unpacking, checking
1. Make sure that the package is complete.
2. Check all the parts for transport damage.
WARNING
Do not use any parts that show evidence of damage!
