11.9 XR-300M PoE dimension drawings
SCALANCE X-300
Operating Instructions, 10/2010, A5E01113043-10
273

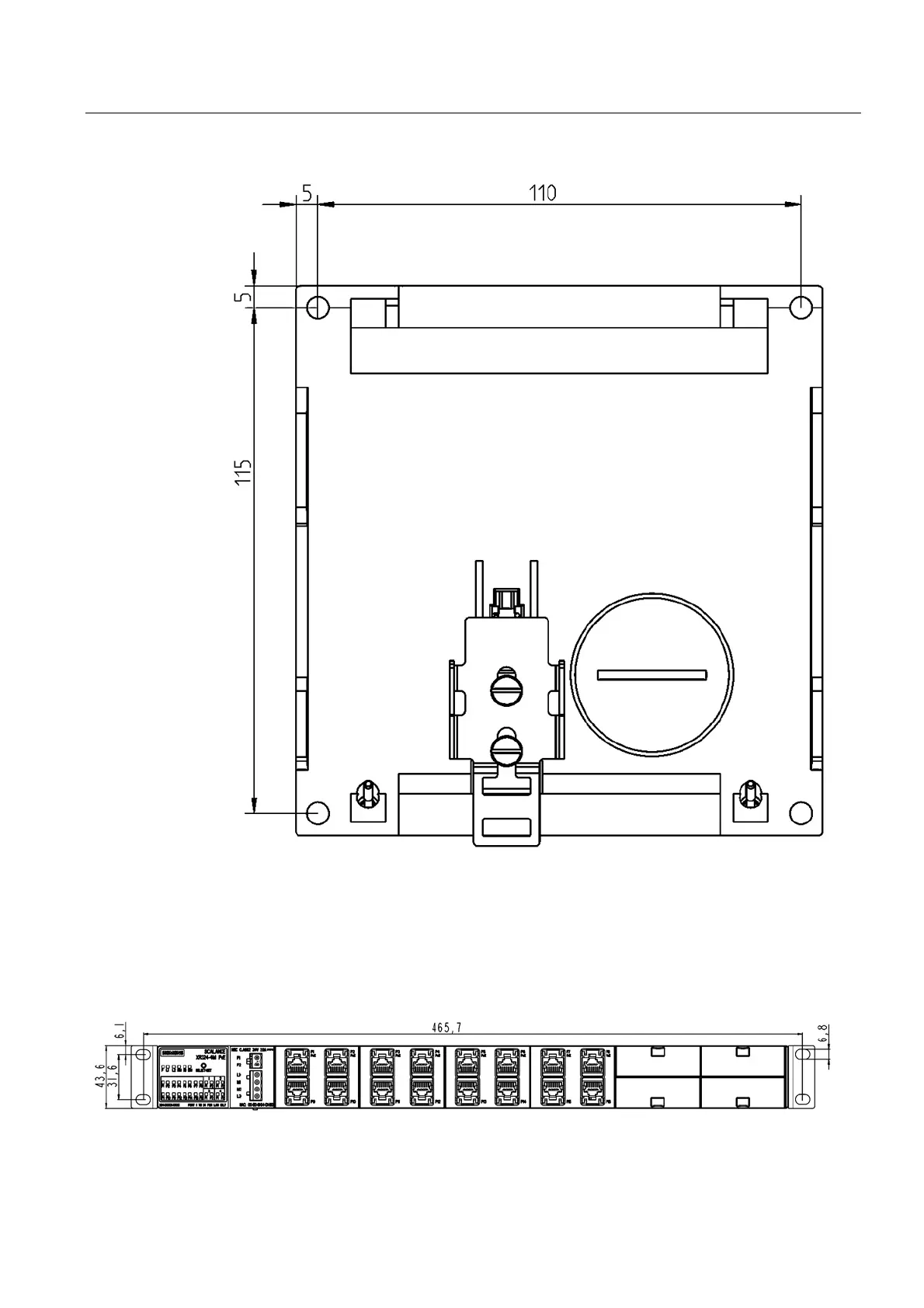

Figure 11-30 X308-2M PoE: Drilling template
11.9 XR-300M PoE dimension drawings
All dimensions in the drawings are in millimeters.
Figure 11-31 XR324-4M PoE: Front view
