Siemens SCALANCE X-300 Series

Description of the device
4.2 Product groups
SCALANCE X-300
Operating Instructions, 10/2010, A5E01113043-10
45
4.2 Product groups
4.2.1 X-300 product group
4.2.1.1 SCALANCE X304-2FE product characteristics
Possible attachments
The SCALANCE X304-2FE has four RJ-45 jacks and two FO ports (for multimode fiber) for
the connection of end devices or other network segments.

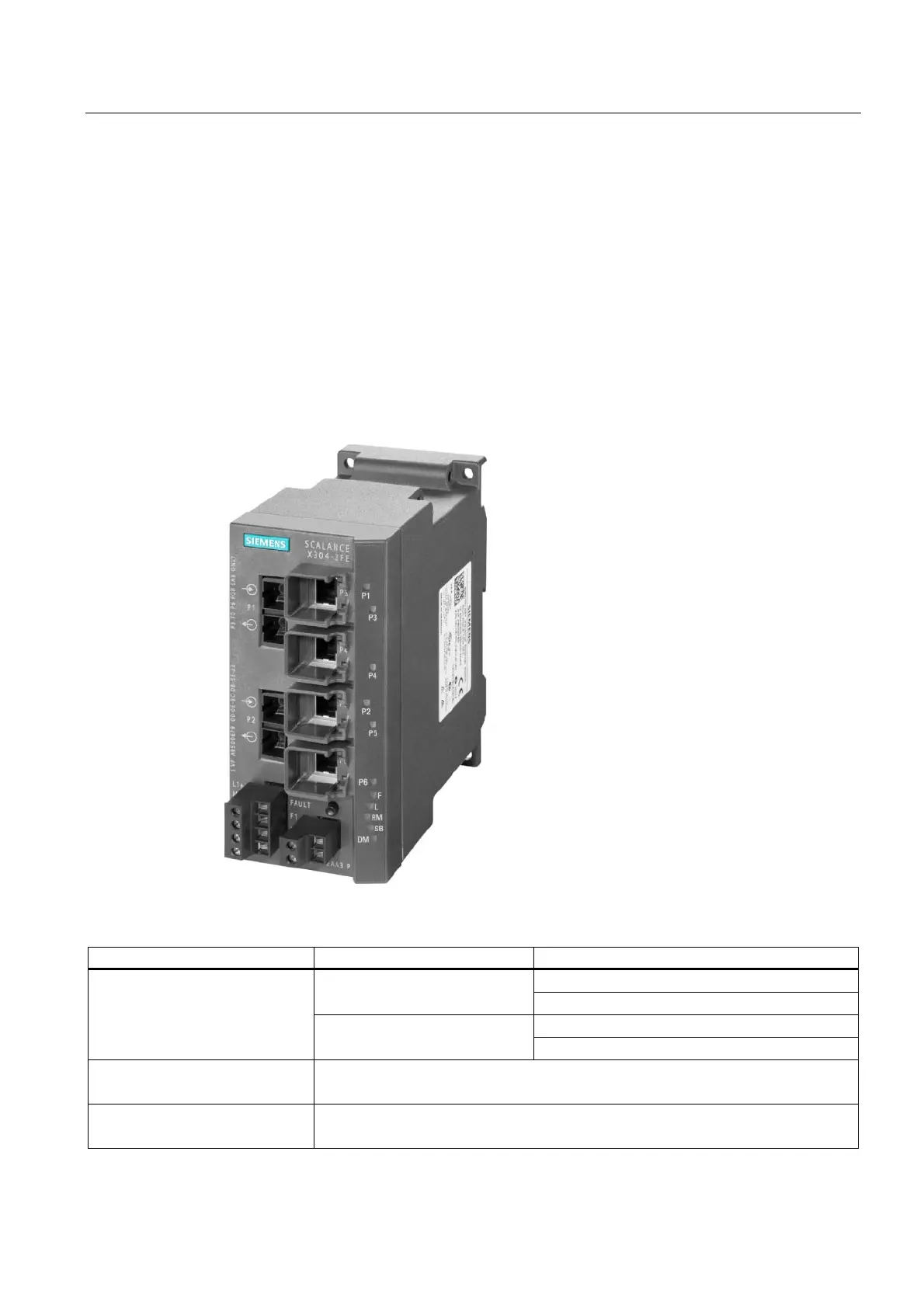

Figure 4-1 X304-2FE
Column 1 2
P3 P1
P4
P5
Port number
P2
P6
Connection type
electrical
No marking → Fast Ethernet port
*
1
) marking → gigabit Ethernet port
Connection type
optical
*
2
) marking → Fast Ethernet port
*
3
) marking → gigabit port
