PROFIBUS data transfer
6.5 Integration with the GSD file
3WL/3VL circuit breakers with communication capability - PROFIBUS
126 System Manual, 03/2011, A5E01051353-02
Example
The figure below shows the configuration tool of STEP7 HW Config with which both the
automation system of S7 and its fieldbuses can be configured.
To insert a SENTRON circuit breaker, either a CPU with integral PROFIBUS DP interface or
a PROFIBUS DP CP card in the rack must be configured and assigned to PROFIBUS DP.

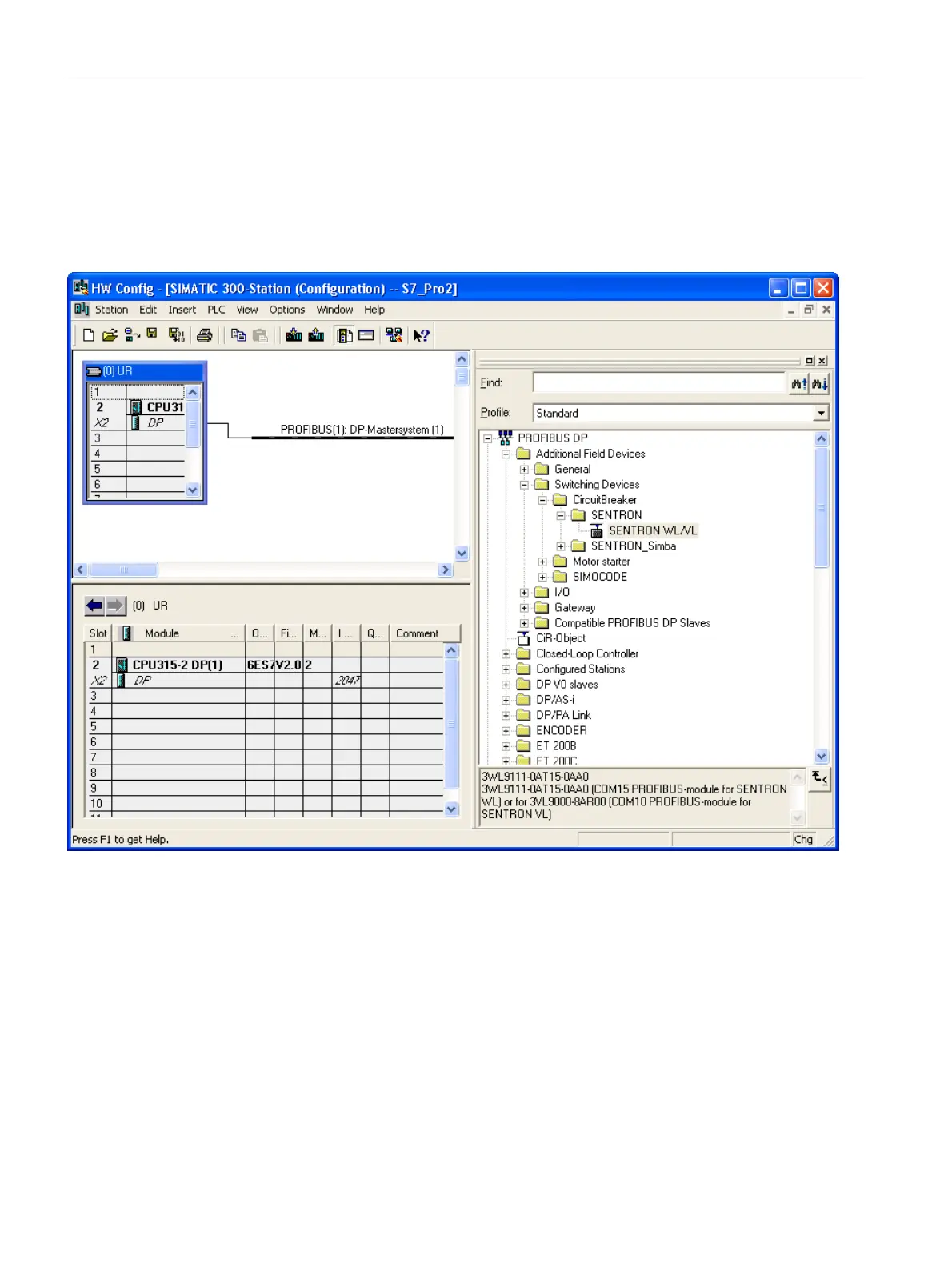

Figure 6-2 Configuration tool of STEP7 HW Config
