Data transfer to the PLC
7.3 Functional sequences/description of functions
3WL/3VL circuit breakers with communication capability - PROFIBUS
164 System Manual, 03/2011, A5E01051353-02

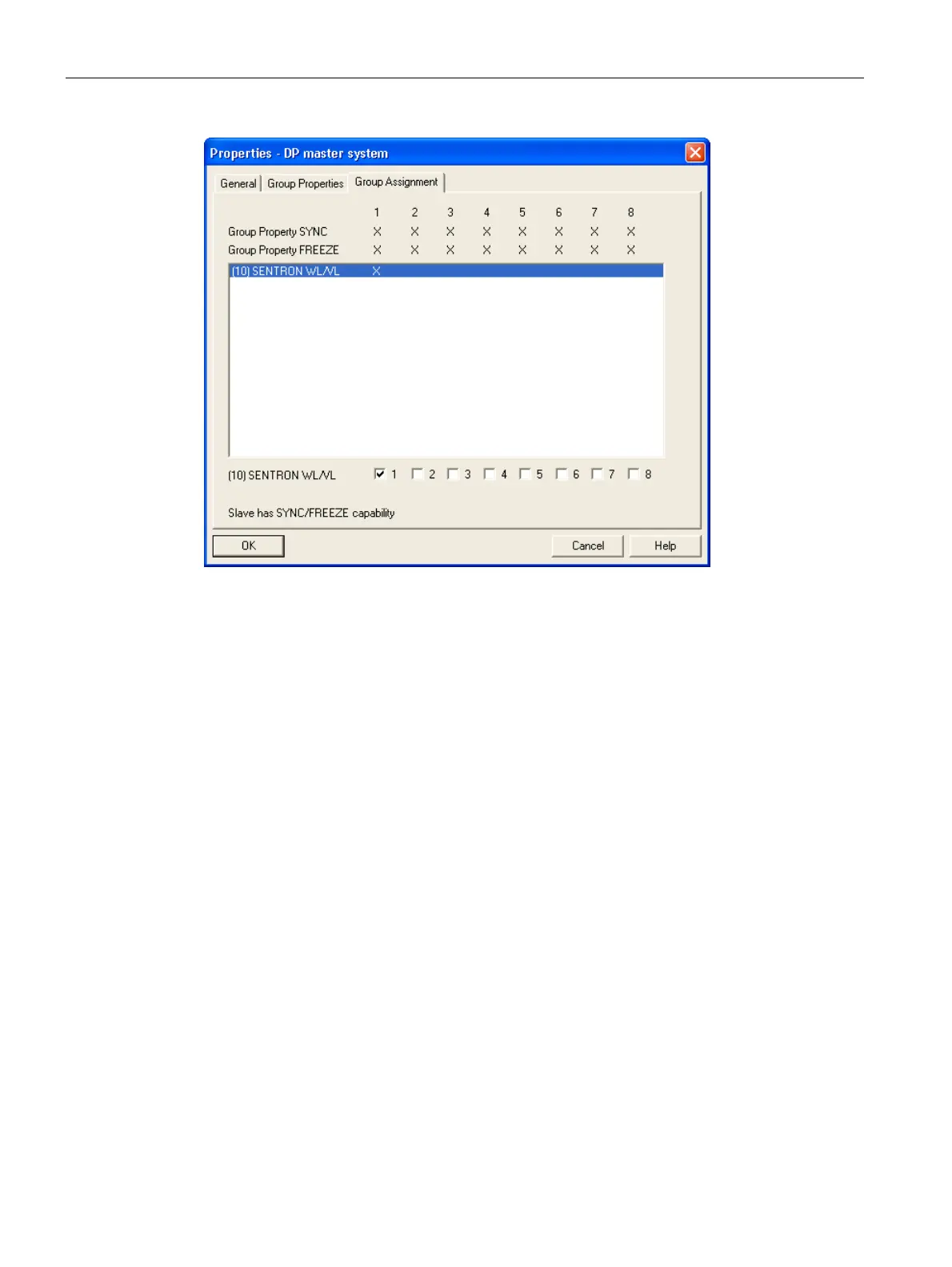

Figure 7-3 Group_Group Assignment
7.3 Functional sequences/description of functions
7.3.1 Diagnostic messages
Diagnostics
By requesting diagnostics data, the DP master checks in the startup phase whether the DP
slave is available and ready for parameterization. The diagnostics data communicated by the
DP slave consists of a diagnostics data section defined in EN 50170, and specific DP slave
diagnostic information. The DP slave informs the DP master of its operating state
(PROFIBUS DP-related) via the diagnostics data, and of the cause for the diagnostic
message in a diagnostics case.
