3WL air circuit breakers
3.5 External CubicleBUS modules
3WL/3VL circuit breakers with communication capability - PROFIBUS
72 System Manual, 03/2011, A5E01051353-02
3.5.4 Configuration of the digital output module
Digital configurable output module
The digital configurable output module has six outputs. The outputs are configured
exclusively per software.

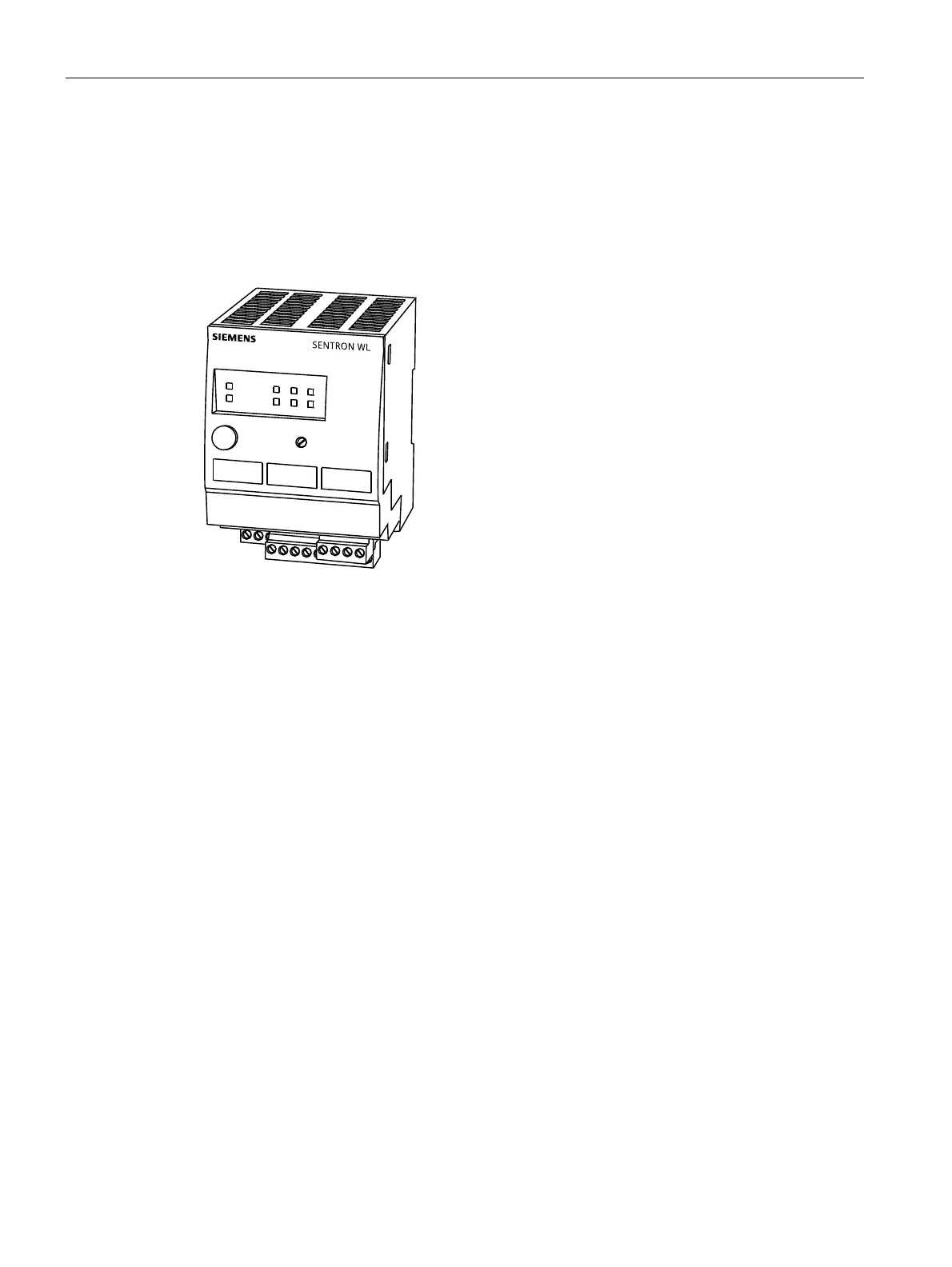

Figure 3-19 Digital configurable output module
Configuration
In contrast to the modules with rotary coding switch, the outputs are assigned per software
instead of by means of a selector switch. Switch ES Power is available as configuration
software. A separate node "Config. output module" is available in the navigation tree of the
tool. The events listed in the adjacent table can be assigned to the outputs via these nodes
using drop-down fields.
Assigning the outputs
The first three outputs of the module can be assigned up to six events that are connected to
the output via an OR logic operation. This allows, for example, the implementation of a group
signal if the switch is in overload excitation or if a warning for phase unbalance is present.
The last three outputs can only be assigned one of the events direct.
Events
Status messages, alarms, tripped signals, threshold violation signals, triggers of the
waveform buffer, bits that are directly addressable via PROFIBUS, and the active parameter
set are available as events for configuration.
