Data transfer to the PLC
7.1 Interface to S7-300 and control/diagnosis via PROFIBUS
3WL/3VL circuit breakers with communication capability - PROFIBUS
146 System Manual, 03/2011, A5E01051353-02
7.1.2 Hardware configuration in HW Config

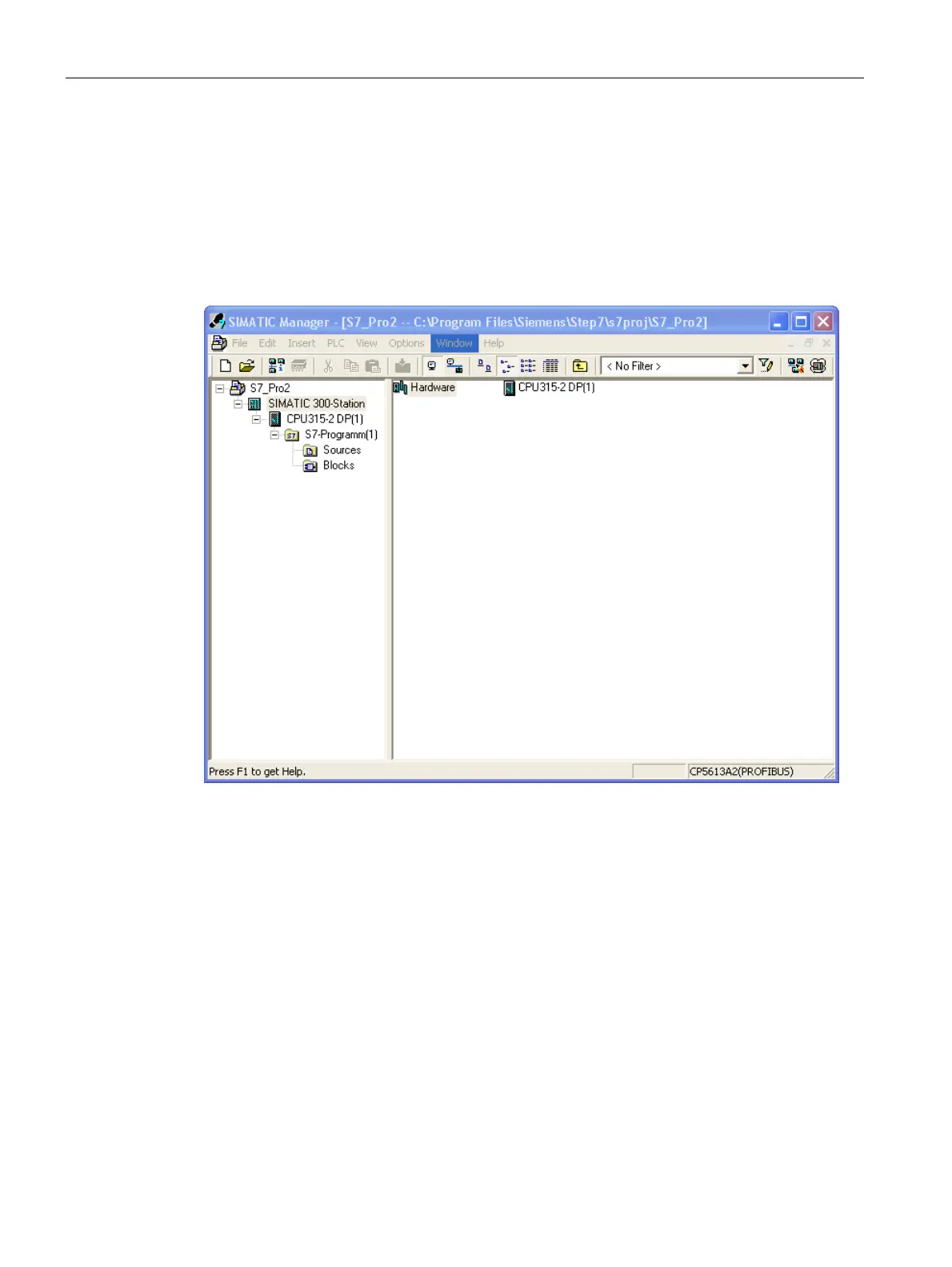

Step 1 Starting HW Config
Start HW Config by double-clicking on "Hardware" in the generated project structure under
"Project Name > Station Name"
In the example, "S7_Pro2 > SIMATIC 300-Station"
