7 - Documentation
Using the Ladder, Network, and SF Header
Editor
Ladder Header
505 SoftShop provides a simple way to document ladder while you are
creating or editing your program. The maximum number of characters
you can enter for each header is 16K.
Double-click the Ladder Header icon in the active logic program
window (see Figure 7.1). The Ladder Header dialog box is displayed
(see Figure 7.2). Type in your header. Select OK when you're finished.

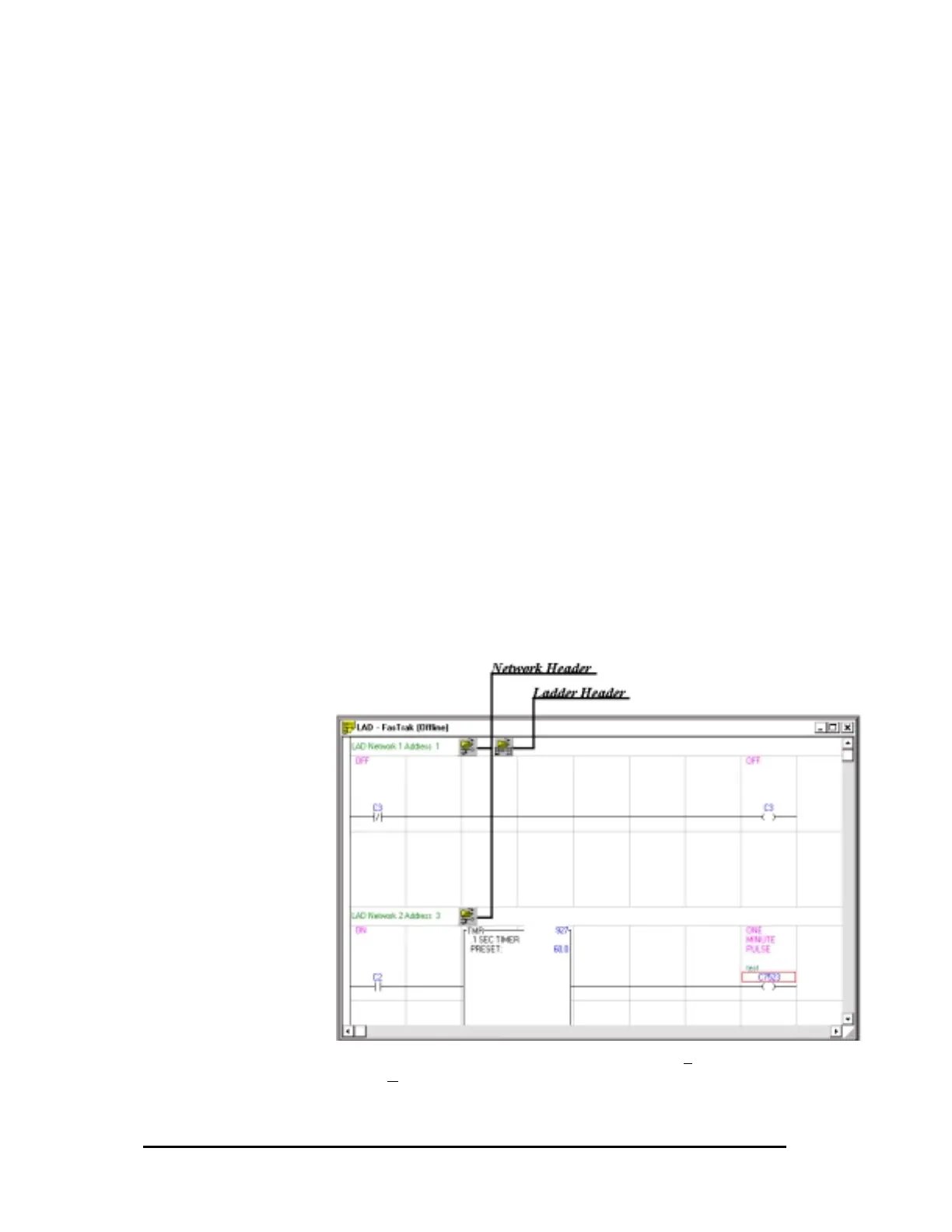

Figure 7.1
To see ladder headers in the active logic program, select Program Setup
from the Options menu. Click Ladder Headers in the Logic Editor box
and click OK.
