Profibus Operations
Profibus Operations allows you to change the operations mode from
Operate to Stop, or Stop to Operate. You can also select from
Synchronous to Asynchronous, or Asynchronous to Synchronous.
The Profibus Operations mode can be selected from the Profibus-DP I/O
dialog box (Figure 5.7) by:
1. Clicking on the Profibus Ops. Button or selecting Profibus
Operations from the PLC Utilities menu.
Result: The Profibus Operations dialog box appears (Figure
5.9).

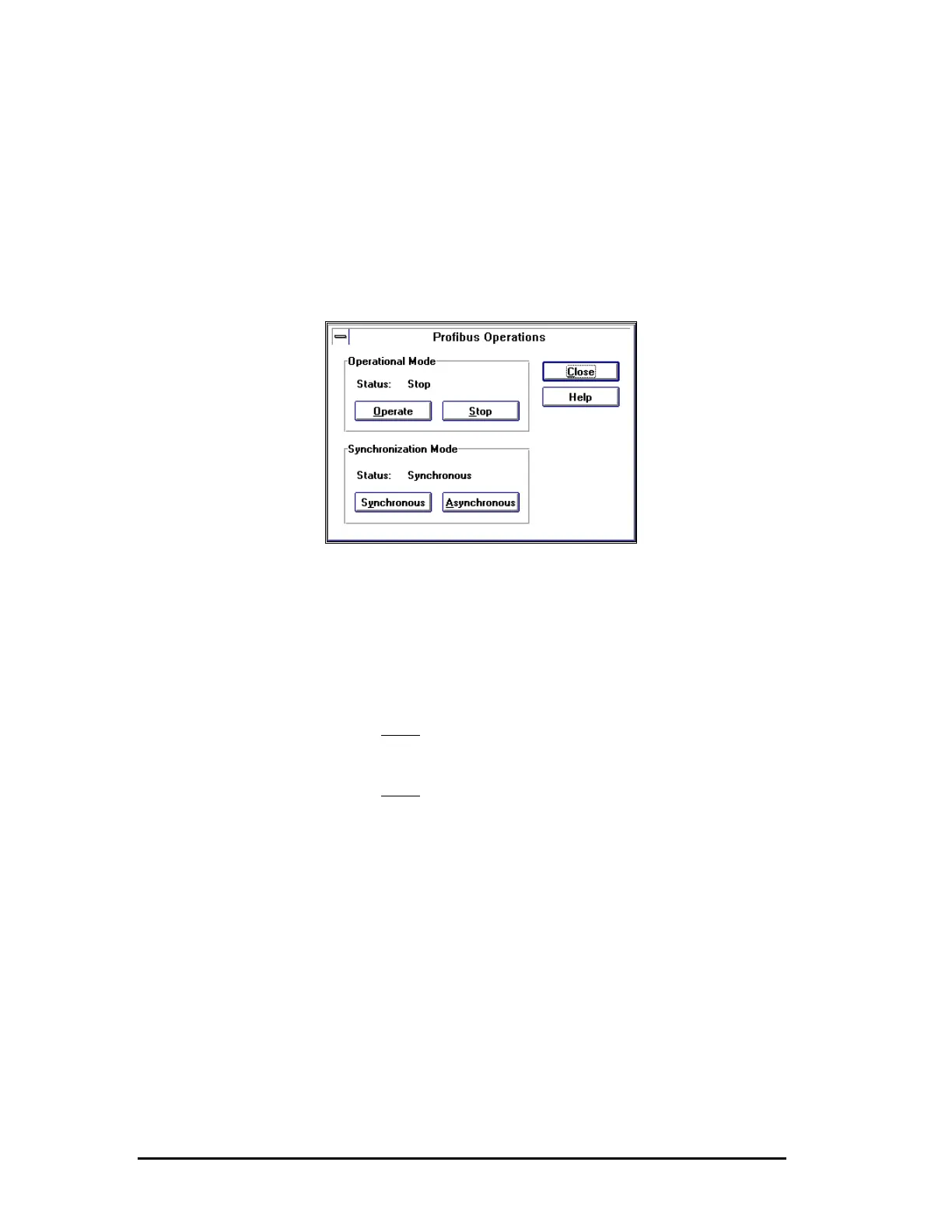

Figure 5.9
Find Configured I/O
To find configured I/O:
1. Select PLC Configuration from the PLC Utilities menu.
Result: The PLC Configuration dialog box appears (Figure 5.2).
2. Select the
Find I/O
button under I/O configuration on the PLC
Configuration dialog box.
Result: The Find I/O Address dialog box appears (Figure 5.10).
Figure 5.10
3. Enter an X, Y, WX, or WY address and click on the Find Next
button.
4. Find will first search 505 I/O, then search PROFIBUS I/O.
When the address is found, you can click on the Find Next
button to find the next location of the address.
