144 •
••
• 8 - Analog Alarms Simatic 505 SoftShop

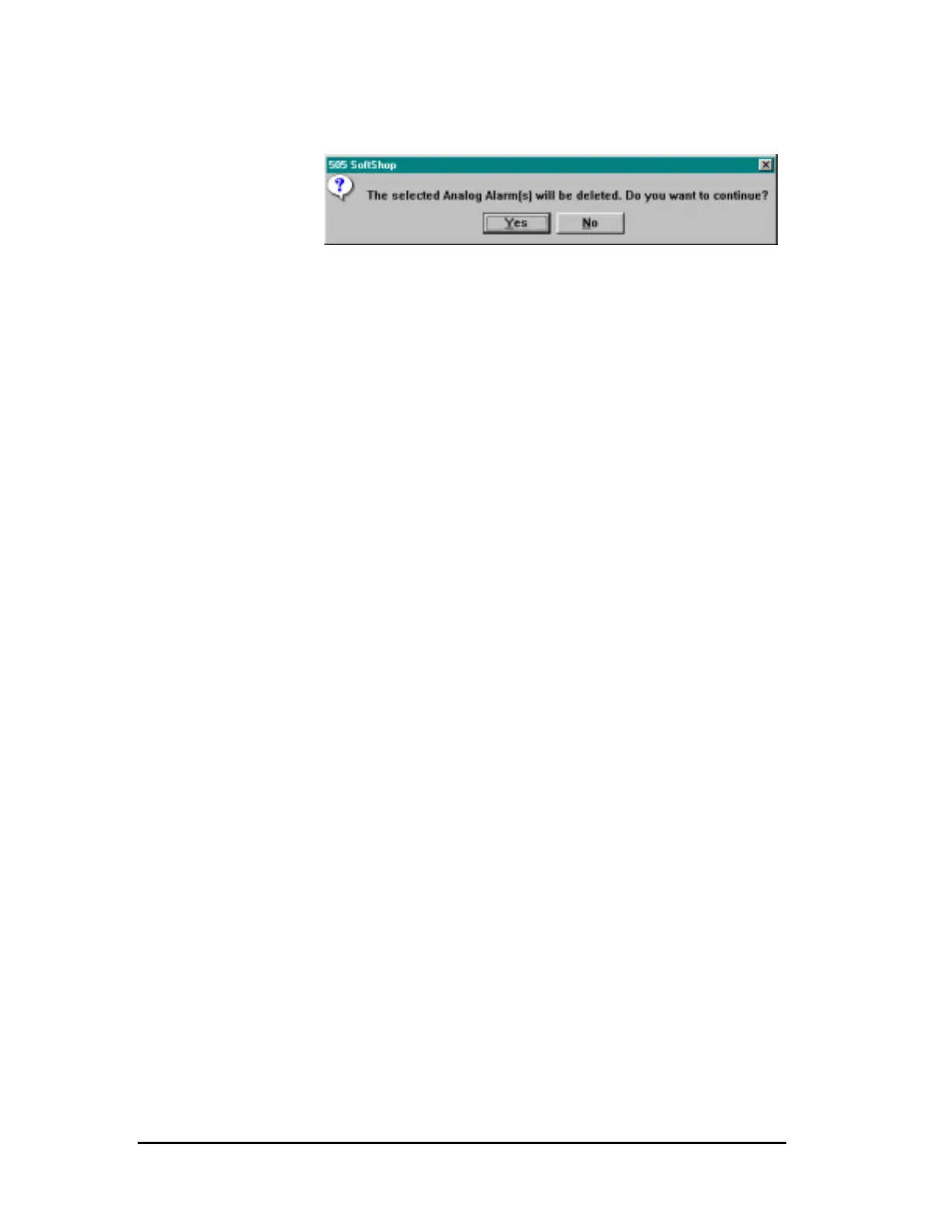

Tab to the Delete button and press Enter. The following dialog
box appears (Figure 8.3).
Figure 8.3
3. Select Yes to delete the analog alarm, or No to return to the
previous dialog box.
Copy and Paste Alarms
To Copy and Paste an Alarm:
1. Click Alarm from the View menu (Alt+V, A).
2. The Analog Alarm Directory dialog box appears (see Figure
8.1). The dialog box shows the Loop Mode, Alarm number (1-
512) depending on the processor type, Alarm Title, and
Enable/Disable state.
3. Select the Alarm number that you want to Copy by using the left
mouse button or the Arrow keys on the keyboard. The drag and
left mouse button or Shift + arrow key can be used to select
multiple Alarm numbers. Click on the dialog box Copy button to
place the selected Alarm number in the clipboard.
4. Move the cursor to the desired location and click on the dialog
box Paste button to paste the clipboard contents into the new
location.
