Using the SF Program and Subroutine Editor
The SF Program and Subroutine Editor gives you the ability to display,
access, and/or modify program using special functions. See Chapter 7 of
the 545/555/575 Programming Reference Manual (Order Number:
PPXSS505-8101-1) for all Special Function instructions.
To access the Special Function Program Editor:
1. Click Special Function Program Editor from the View menu
(Alt+V, F). The Special Function Program dialog box appears
(see Figure 6.1a).

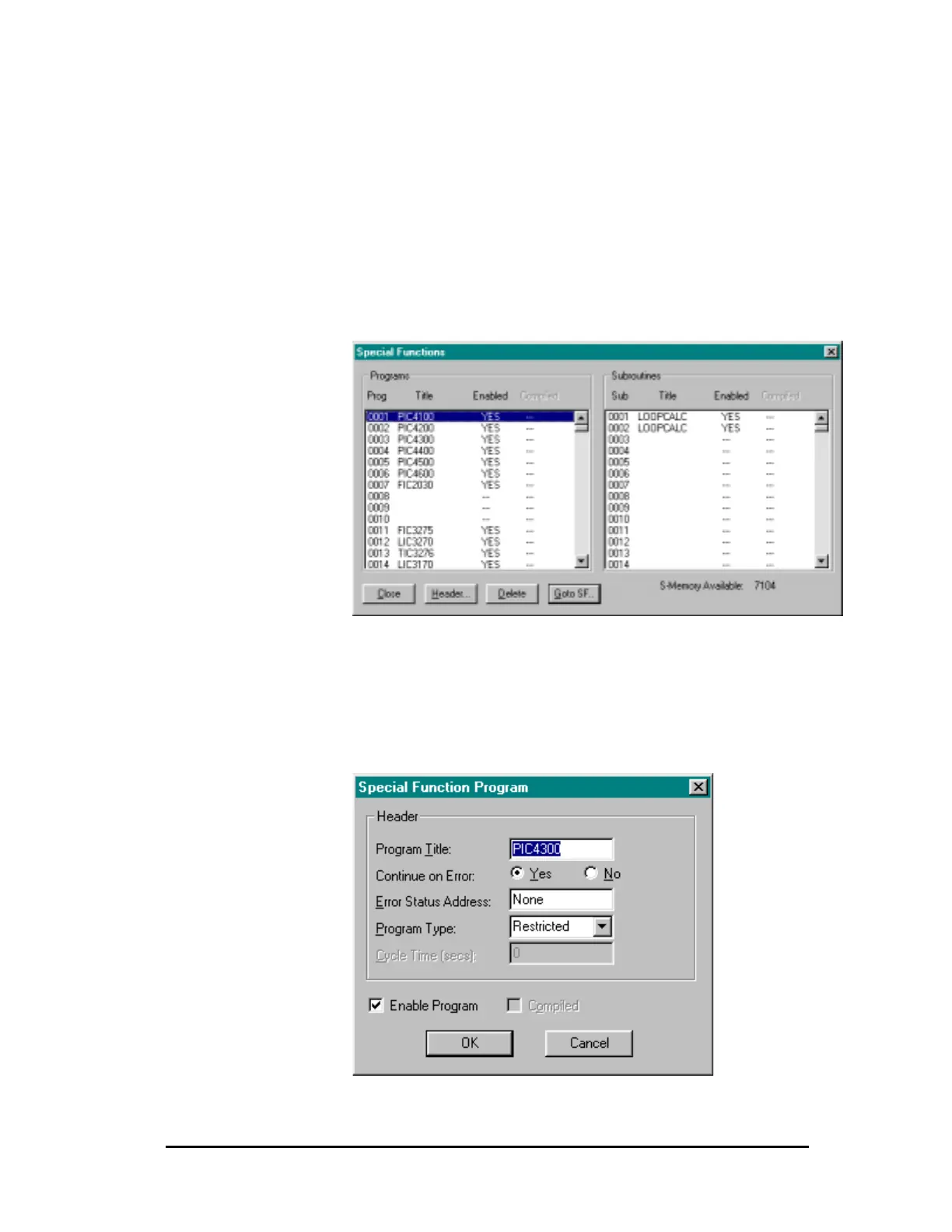

Figure 6.1a
2. Select the Special Function Program that you want to enter
(Program 1, Program 2, etc.) by using the left mouse button or
the Tab and Arrow keys on the keyboard. (Note: If a Header
has already been programmed, skip ahead to item number 10.)
3. Now Click on the Header button and the following dialog box
appears (see Figure 6.2).
Figure 6.2
