Siemens SIMATIC 505 - Page 18

10 •
••
• 2 - Installation Simatic 505 SoftShop
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
FOIL
SHIELD
BRAID
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
FOIL
SHIELD
BRAID
Drainwire
Copperfoil
Shield
Connector Shell
P1 P2
Drainwire
Copperfoil
Shield
Connector Shell
2 - Transmit (TD)
3 - Receive (RD)
4 - RTS
5 - CTS
6 - DSR
8 - DCD
20 - DTR
7 - Signal Ground
Prg Device Controller

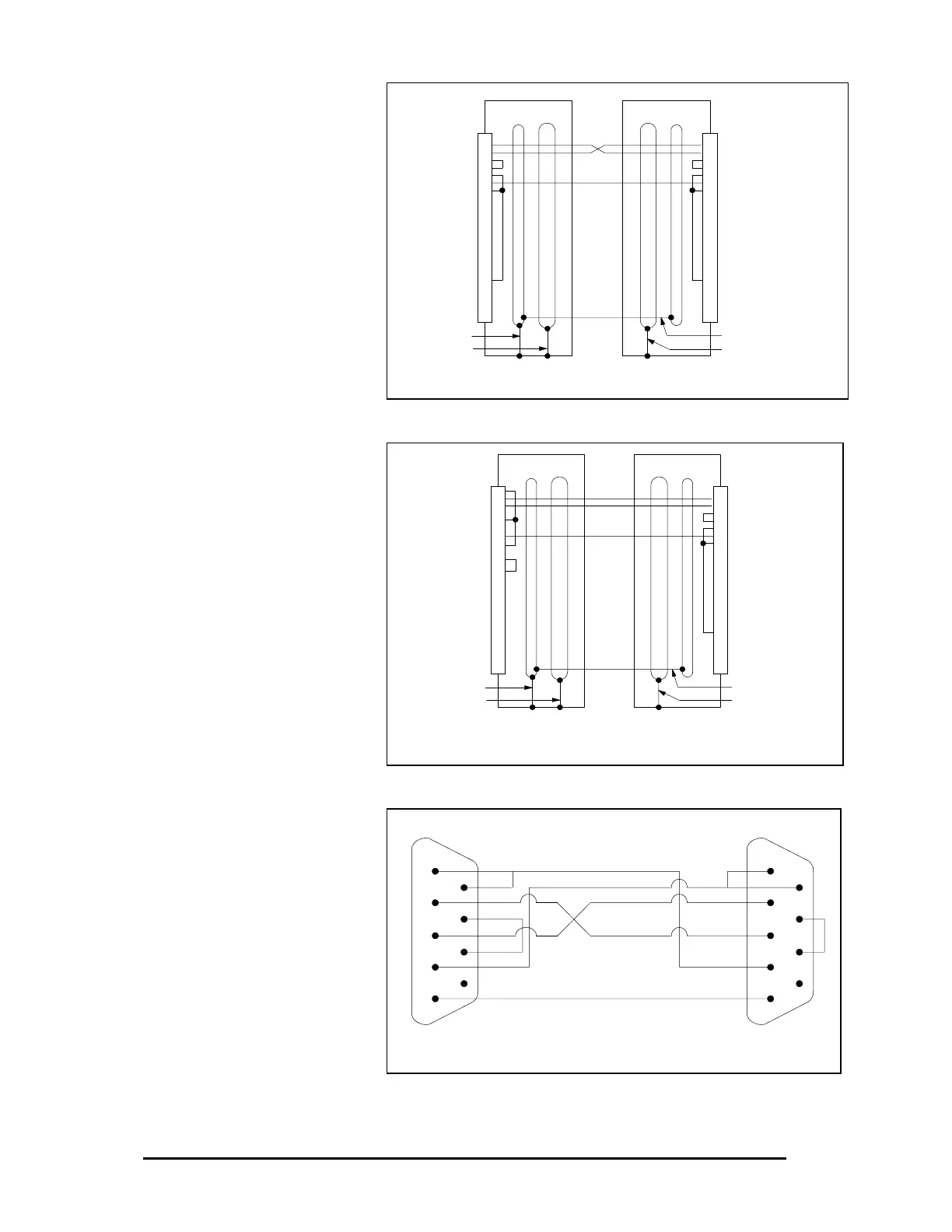

2.1 RS-232-C 25-Pin to 25-Pin Figure Cable
FOIL
SHIELD
BRAID
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
FOIL
SHIELD
BRAID
Drainwire
Copperfoil
Shield
Connector Shell
P1 P2
Drainwire
Copperfoil
Shield
Connector Shell
2 - Transmit (TD)
3 - Receive (RD)
4 - RTS
5 - CTS
6 - DSR
8 - DCD
20 - DTR
7 - Signal Ground
1
2
3
4
5
6
7
8
9
2 - Receive (RD)
3 - Transmit (TD)
5 - Signal Ground
Figure 2.2 RS-232-C 9-Pin to 25-Pin Cable
DSR
RX DATA
RTS
TX DATA
CTS
DTR
9-Pin D-Type
Female Connector
9-Pin D-Type
Female Connector
Figure 2.3 RS-232-C 9-Pin to 9-Pin Cable
