12 •
••
• FTLogger PLC WorkShop for Simatic TI505
For the mapping to be successful, the fields names must map to the table
names. The fields that are mapped must be of type “Text” for address,
tag, and description and “Memo” for the comment field. The lengths of
the fields must be less than or equal to FasTrak’s lengths for all fields
except the comment field. The maximum character length is:
• Address = 64
• Tag = 32
• Description = 96
Failure to provide a valid mapping prevents the device from being added.
Modifying Devices
1. To modify a device, click Modify Device from the Device
Source Configuration screen.

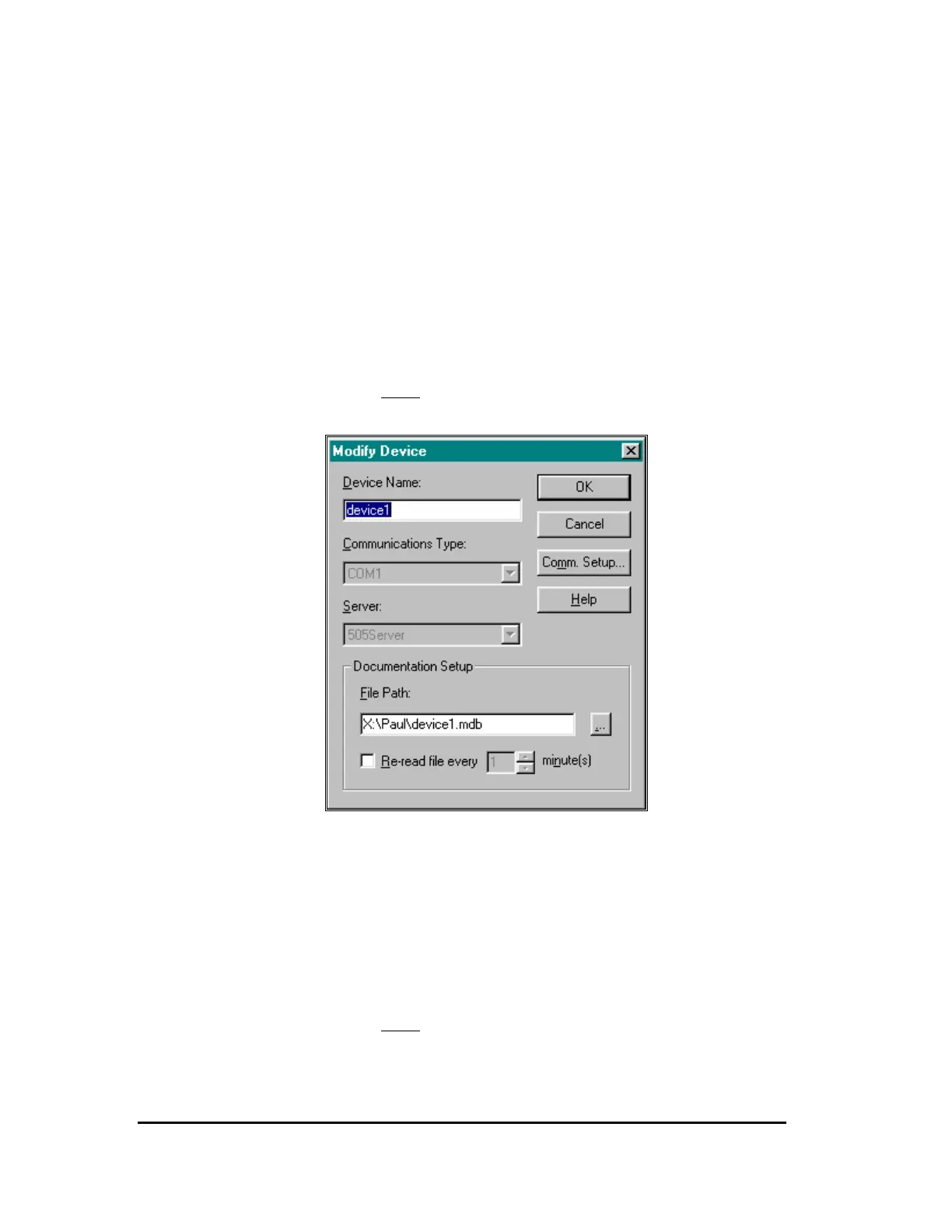

Result: The Modify Device screen appears (Figure 14).
Figure 14
2. Enter information in the Device Name and Documentation
Setup fields. If the device is offline, you can change the
Communications Type field.
3. Click OK to send the configuration to the server.
Deleting Devices
1. To delete a device, click Delete Device from the Device Source
Configuration screen.
Result: The Delete Devices screen appears (Figure 15).
