• FTLogger PLC WorkShop for Simatic TI505
addresses, and the general file format are verified. This action causes the
import process to be slightly slower. To start the import process, click the
OK button.
Documentation can also be exported by selecting File → Import
Documentation from the menu.
Using the Log Sheet
The Log Sheet displays information about the devices such as address,
tag, description, value, timestamp, and status. You can change the way
the data is presented and determine your status - online or offline.

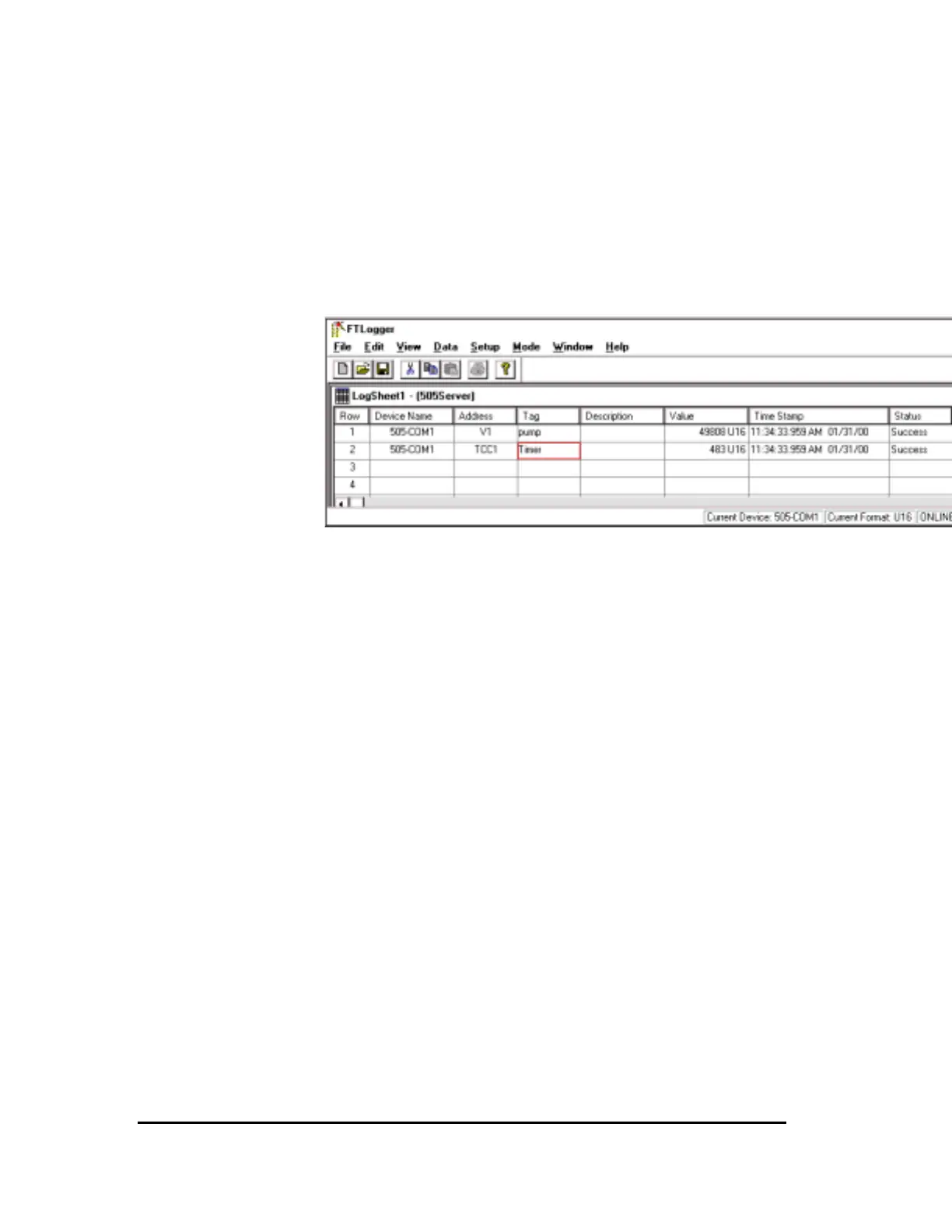

Figure 16
Column Layout
Each log window is a spreadsheet with columns that can be sized in
different methods.
• Click and hold the left mouse button when between the
columns. Move the cursor to the right or left to increase or
decrease the column.
• Double-click between the columns. This action adjusts the left
column to display the largest string within this column. When
no strings are displayed in the column, no adjustment is made.
Row
Each row represents a single address from a single device that is
configured in the server from which the log window is connected.
Currently, rows are not sizeable.
Device Name
The device name changes the current device on the status bar. Click in
this column to start an auto-search for all the device names for the log
window server. Select the device name when it appears.
Address
The address corresponds to the device in the Device Name column of the
same row. If a device name is not listed, the address applies to the current
device listed on the status bar. Press any key or click in this column to
