PLC WorkShop for Simatic TI505 FTTrend •
••
• 11

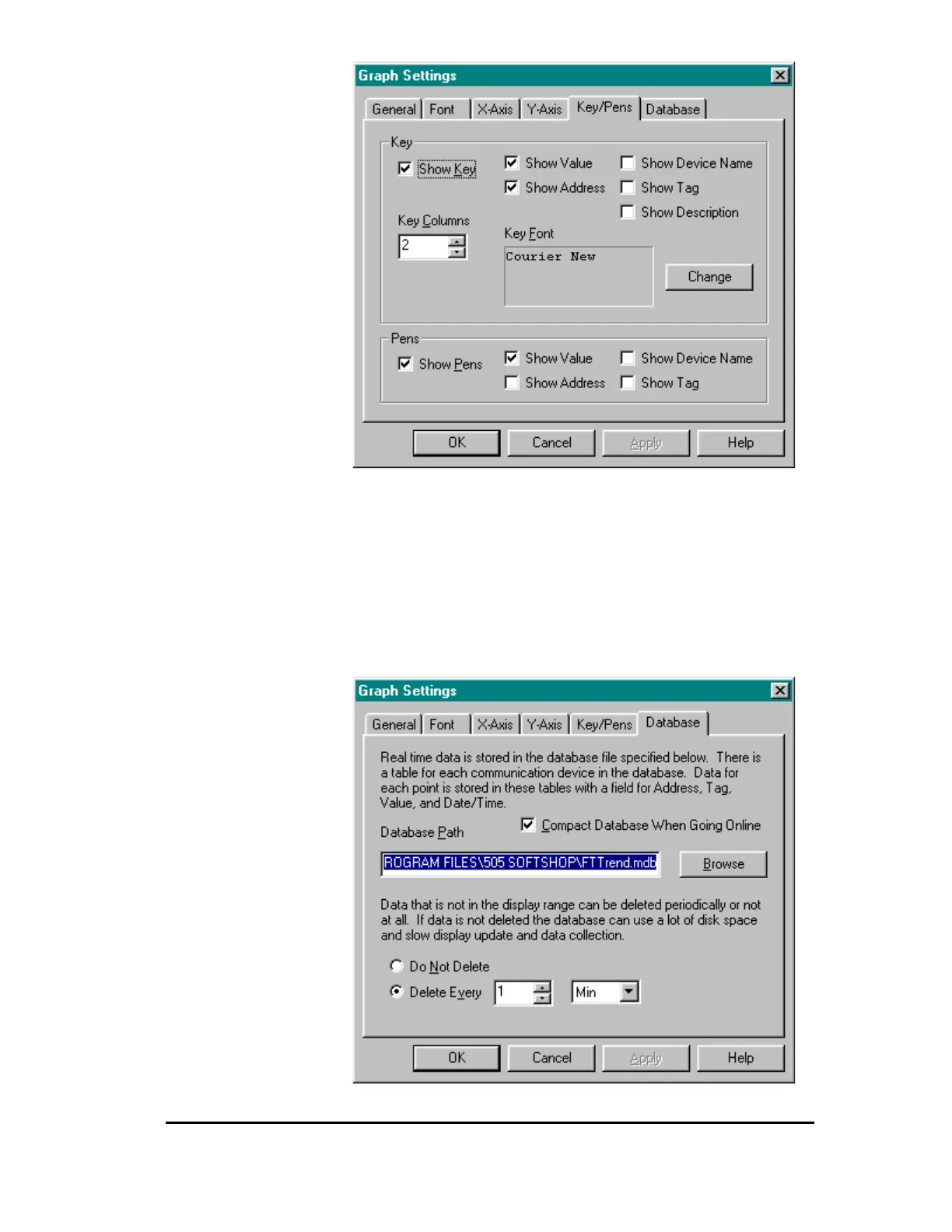

Figure 14
Database Tab
FTTrend can display real time data as well as data stored in a database.
When FTTrend is in the real data mode it's data is also stored in a
database. This provides the ability to not only see the most current data
plotted but past data as well.
The settings under Graph Settings Database tab (Figure 15) is where the
database options are selected.
Figure 15
