4.2 Installation
ET 200M
Operating Instructions, 12/2008, EWA-4NEB780600602-08
61

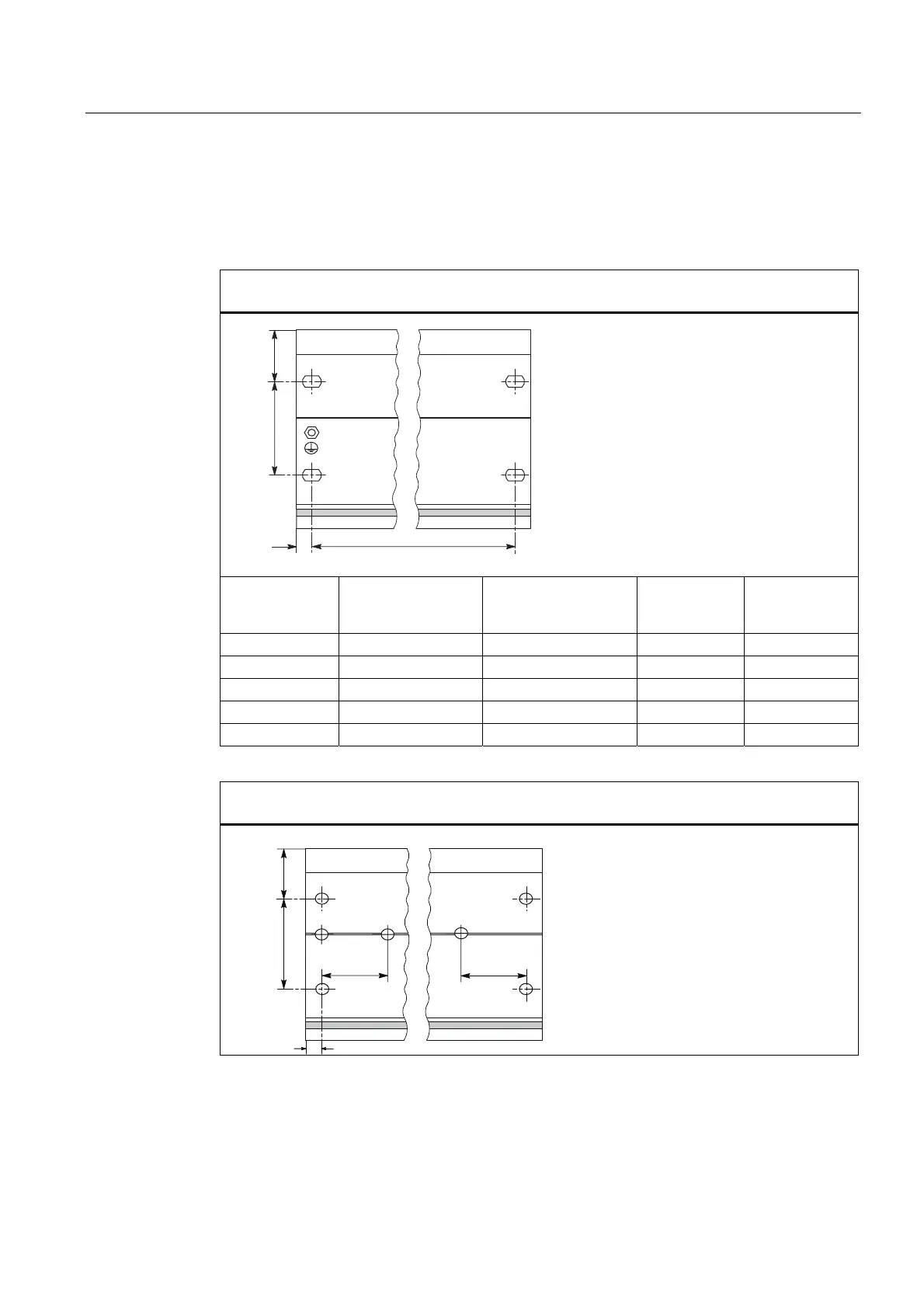

Dimensioned Drawing for Fixing Holes
The fixing-hole dimensions for the rail are shown in the following table.
Table 4- 1 Fixing holes for rails
DIN Rail
Mounting rail for the "Insertion and Removal" function
PP
PP
D
E
Length of rail DIN Rail Mounting rail for the
"Insertion and
Removal" function
Dimension a Dimension b
160 mm X — 10 mm 140 mm
482.6 mm X X 8.3 mm 466 mm
530 mm X X 15 mm 500 mm
620 mm — X 15 mm 590 mm
830 mm X — 15 mm 800 mm
2-meter rail
2-meter rail for the "Insertion and Removal" function
PP
PP
PP
PP PP
$SSUR[ $SSUR[
