Product overview
2.2 What is the ET 200MP distributed I/O system?
ET 200MP Distributed I/O System
16 System Manual, 01/2013, A5E03723484-01
Configuration example

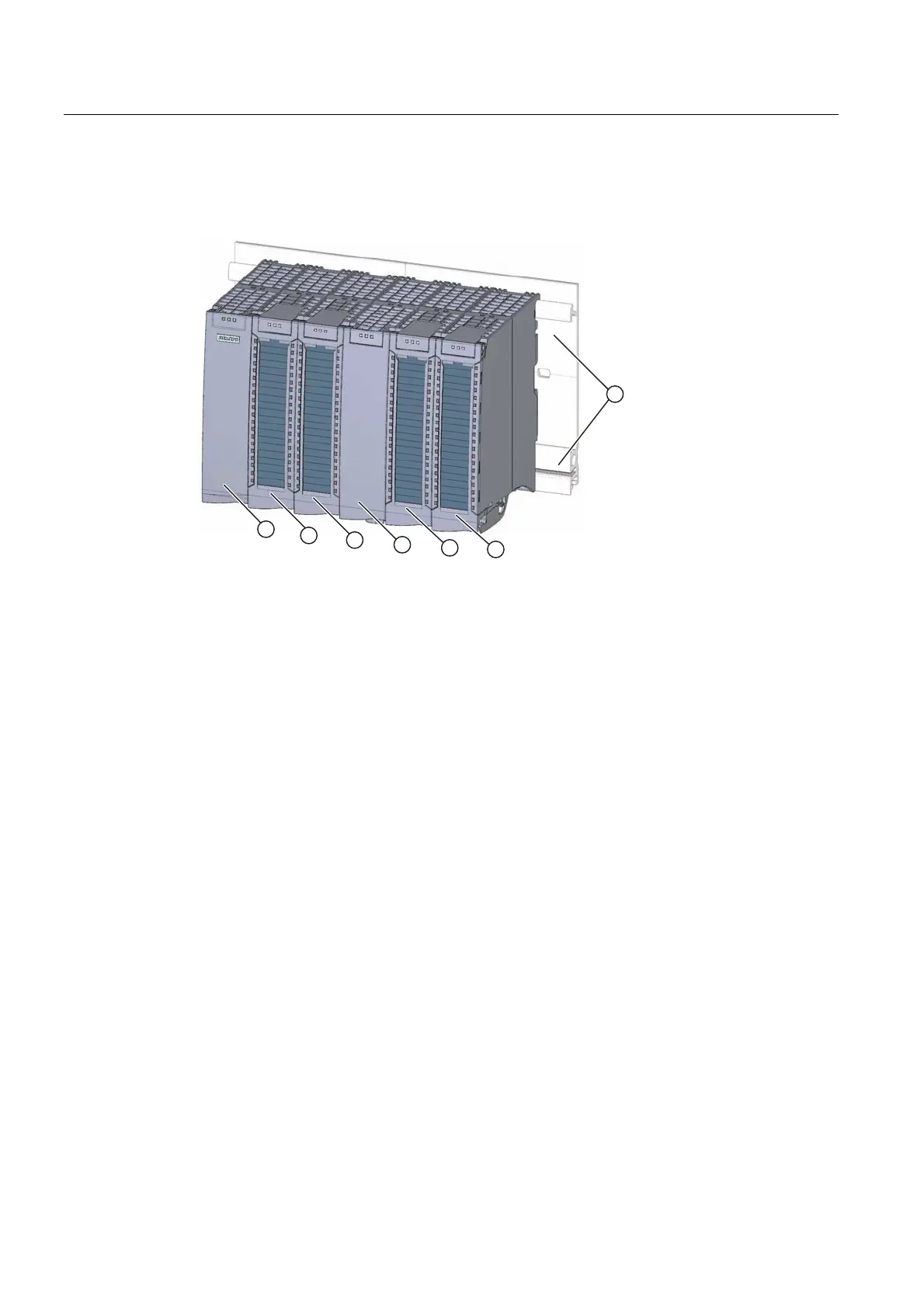

The following figure shows a configuration example of the ET 200MP distributed I/O system.







① Interface module
② I/O module
③ I/O module
④ Power supply module
⑤ I/O module
⑥ I/O module
⑦ Mounting rail with integrated top-hat rail profile
Figure 2-2 Configuration example of the ET 200MP distributed I/O system
