9.3 Coding element on the power connector of the power supply module
ET 200MP Distributed I/O System
System Manual, 01/2013, A5E03723484-01
91
Procedure
1. Orient yourself to the labeling on the power cable connector.

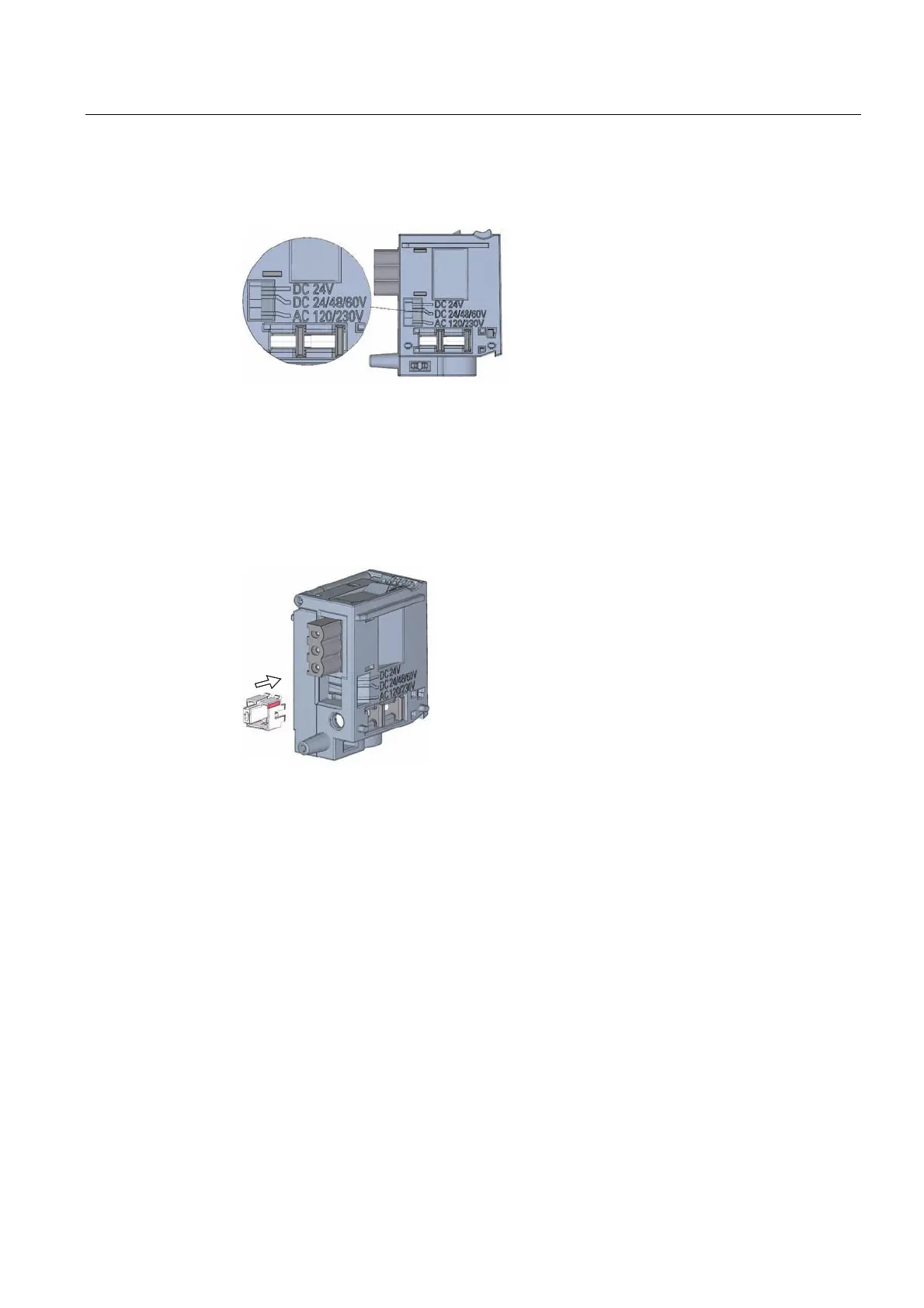

Figure 9-6 Labeling on the power cable connector
2. Orient yourself to the red marking on the coding element.
3. The coding element has 3 red markings. Turn the coding element in such a way that one
of the 3 red markings corresponds to the voltage indicated on the connector.
4. Insert the coding element into the back side of the power cable connector, until you hear
it click into place. The figure below shows you how to insert a coding element into a
power cable connector for 24 V DC.
Figure 9-7 Inserting a coding element into the power cable connector
