Parameter data records
A.2 Structure of the parameter data record 128 for the entire module
Analog input module AI Energy Meter 480VAC ST (6ES7134-6PA20-0BD0)
Manual, 12/2015, A5E36061895-AA
101

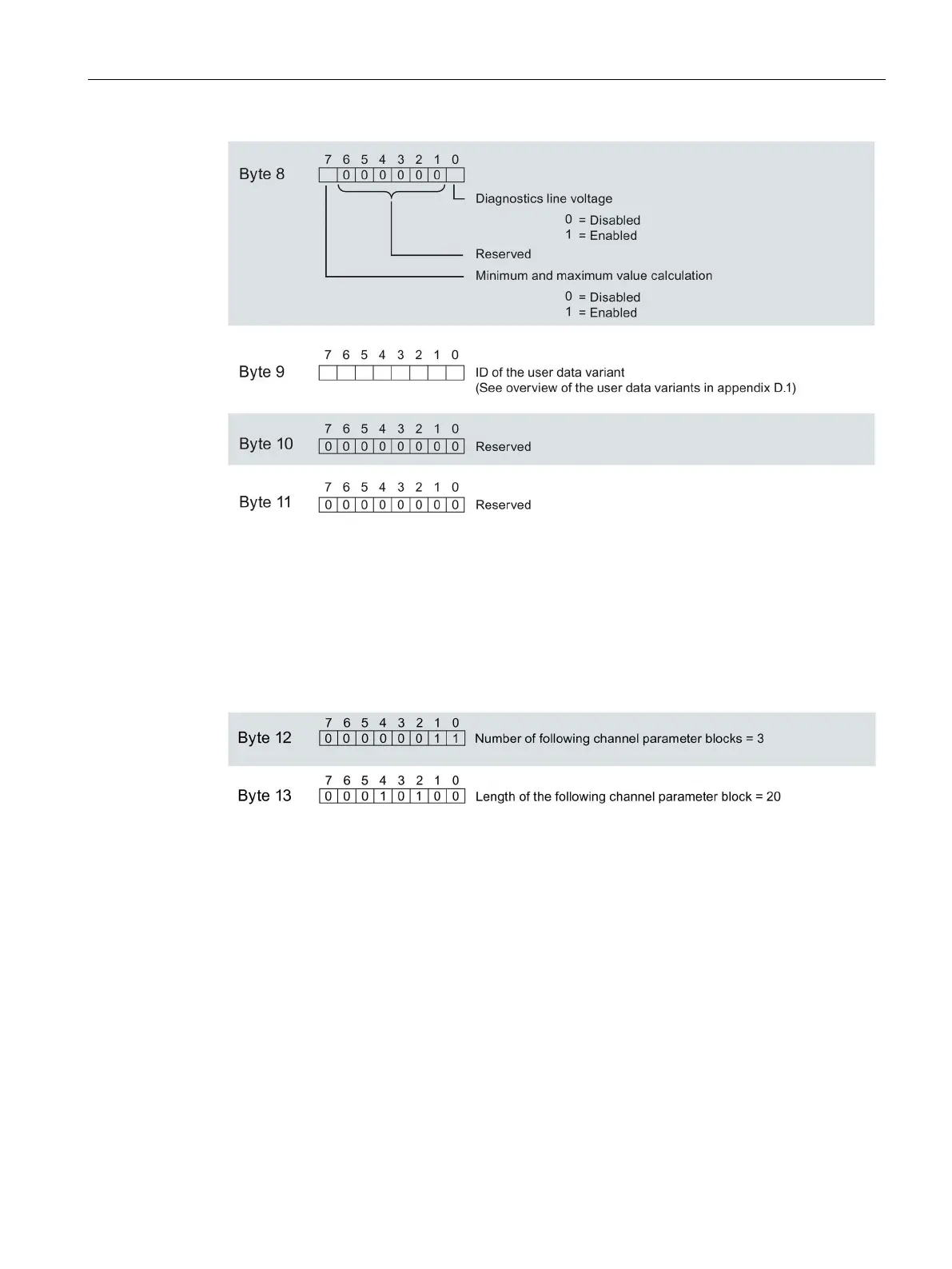

Image A-4 Module parameter block
You can find the user data variant in the section Overview of the user data variants
(Page 135).
Channel header information
The following figure shows the structure of the header information for a channel.
Image A-5 Channel header information
