Parameter data records
A.2 Structure of the parameter data record 128 for the entire module
Analog input module AI Energy Meter 480VAC ST (6ES7134-6PA20-0BD0)
102 Manual, 12/2015, A5E36061895-AA

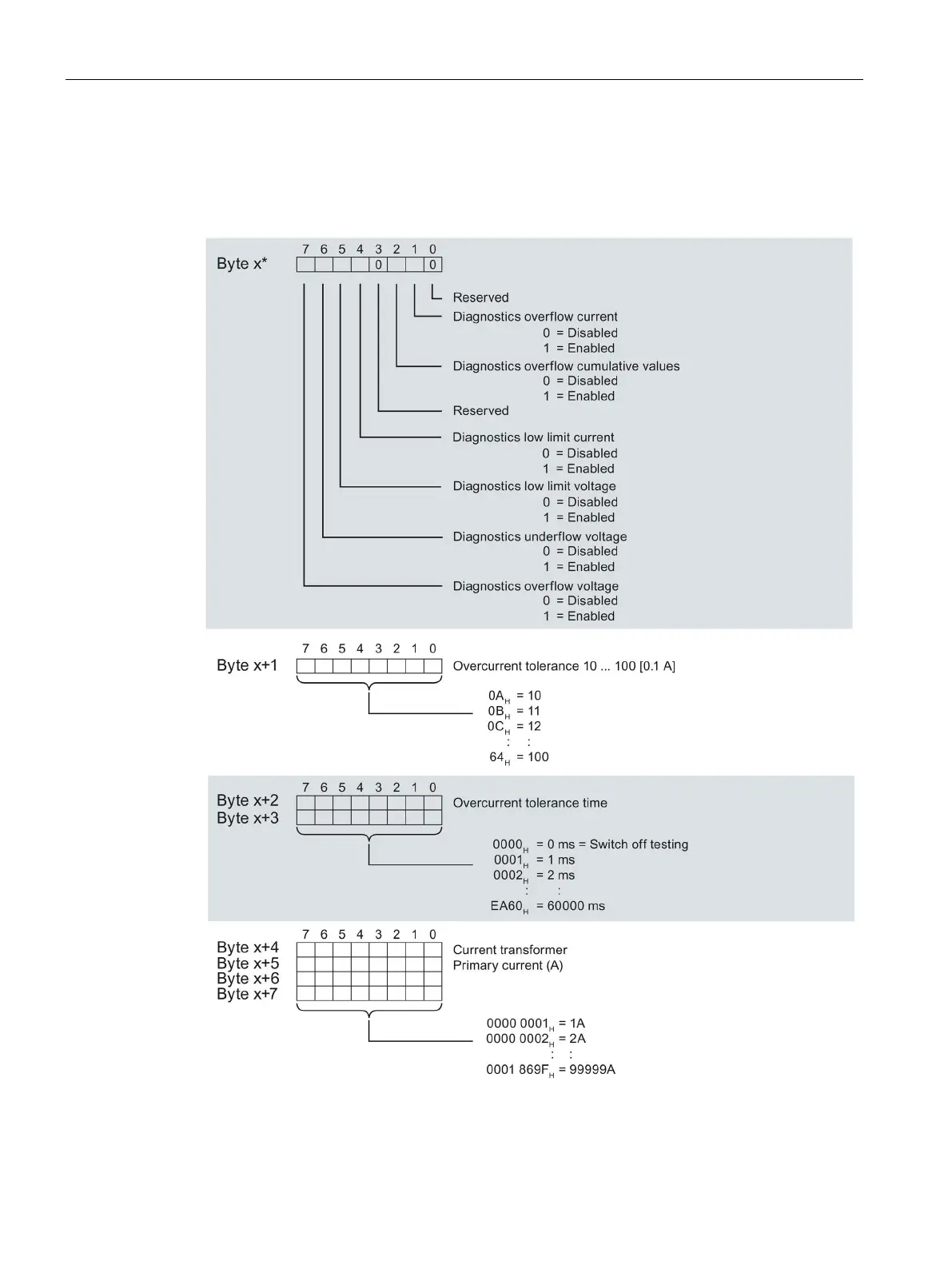

The figure below shows the structure of the channel parameter block.
Enable a parameter by setting the corresponding bit to "1".
