Parameter data records
A.2 Structure of the parameter data record 128 for the entire module
Analog input module AI Energy Meter 480VAC ST (6ES7134-6PA20-0BD0)
104 Manual, 12/2015, A5E36061895-AA

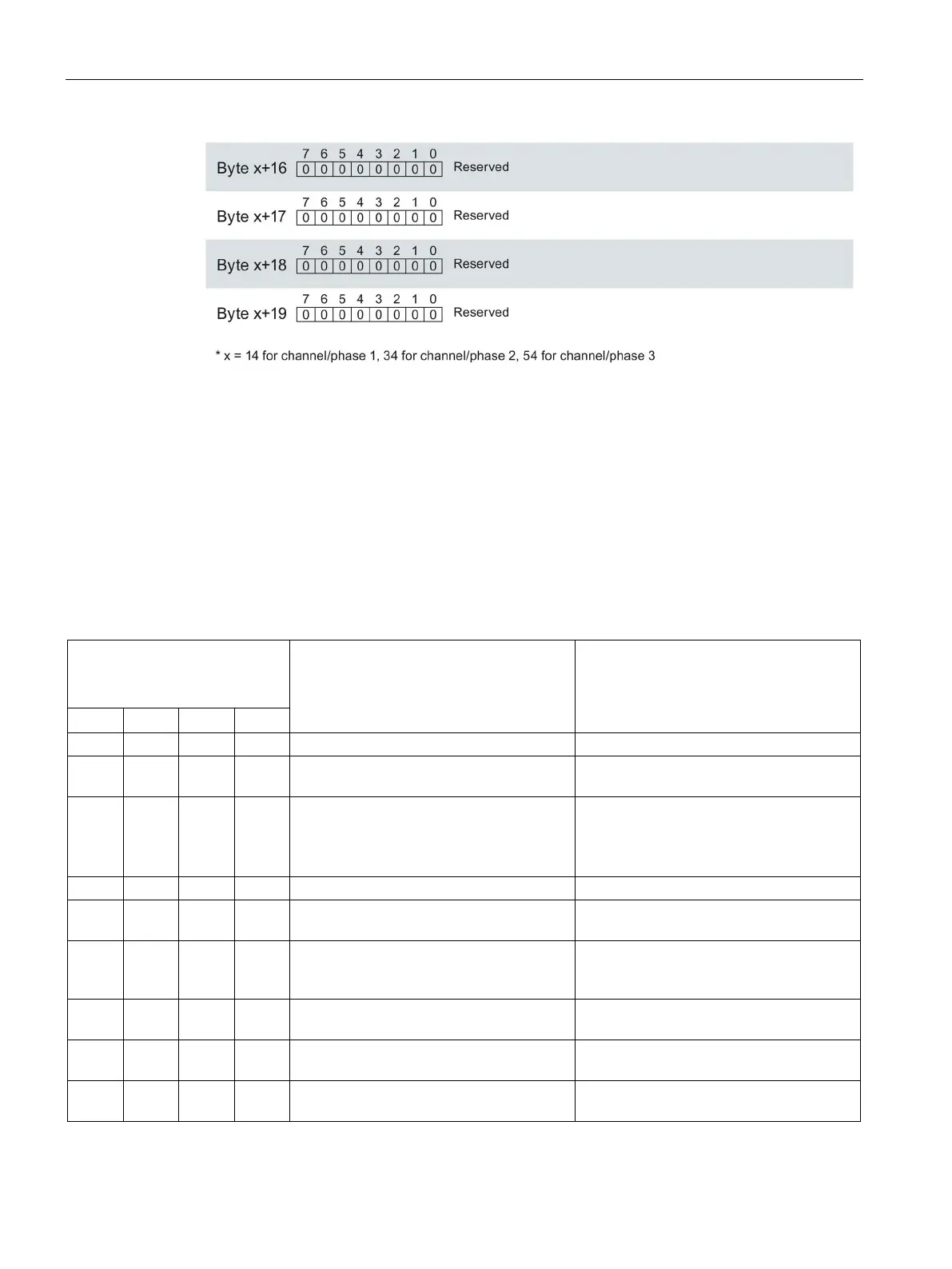

Image A-6 Channel parameter block
Error while transferring the data record
The module always checks all the values of the transferred data record. Only if all the values
were transferred without errors does the module apply the values from the data record.
The WRREC instruction for writing data records returns corresponding error codes when
errors occur in the STATUS parameter.
The following table shows the module-specific error codes and their meaning for the
parameter data record 128.
Error code in STATUS parame-
ter
(hexadecimal)
Number of the data record unknown
Enter a valid number for the data record.
DF 80 B1 00 Length of the data record incorrect Enter a valid value for the data record
length.
DF 80 B2 00 Slot invalid or cannot be accessed. Check the station whether the module is
plugged or drawn.
Check the assigned values for the parame-
ters of the WRREC instruction
Check Byte 0. Enter valid values.
DF 80 E0 02 Error in the header information Check Bytes 1 and 2. Correct the length
and number of the parameter blocks.
DF 80 E1 01 Reserved bits are not 0. Check Byte 10, 11, 14, 22, 30...34, 42,
50...54, 70...74 and set the reserved bits
DF 80 E1 02 Reserved bits are not 0. Check Byte 8 and set the reserved bits
DF 80 E1 05 Measuring range for voltage invalid. Check Byte 5. Permitted values: 01
H
to
DF 80 E1 20 Connection type invalid. Check Byte 4. Permitted values: 00
H
,
H
H
