Siemens SIMATIC HMI KTP400 Basic

Overview
1.2 Design of the PROFINET devices
Basic Panels 2nd Generation
12 Operating Instructions, 10/2016, A5E33293231-AB
1.2
Design of the PROFINET devices

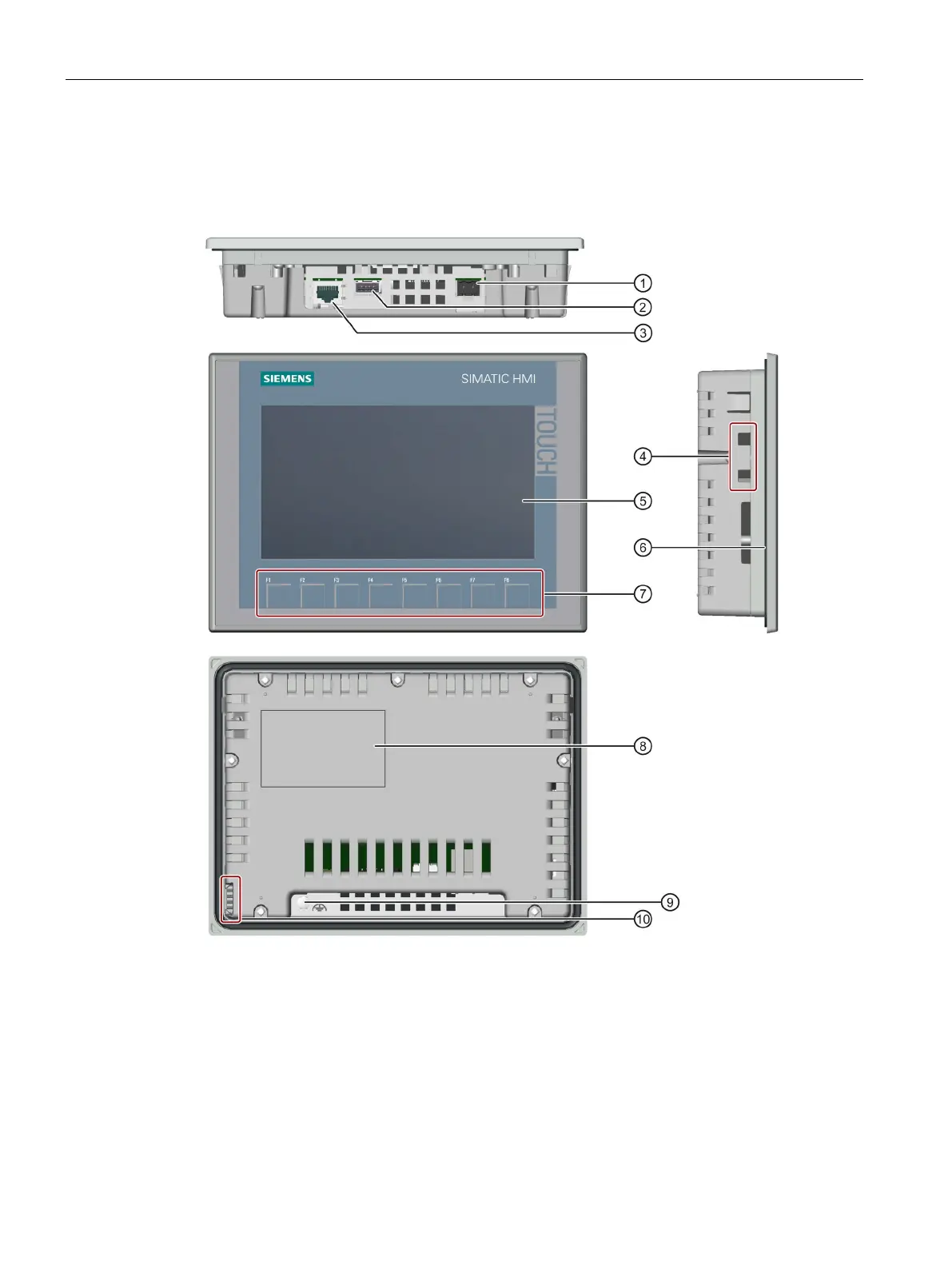

The figure below shows the design of the PROFINET devices using KTP700 Basic as an
example.
①
Power supply connection
⑥
Mounting seal
②
USB port
⑦
Function keys
③
PROFINET interface
⑧
Rating plate
④
Recesses for a mounting clip
⑨
Connection for functional ground
⑤
Display/touch screen
⑩
Guide for labeling strips
