Siemens SIMATIC HMI KTP400 Basic User Manual

Mounting and connecting
3.5 Securing the cables
Basic Panels 2nd Generation
38 Operating Instructions, 10/2016, A5E33293231-AB
3.5
Securing the cables
NOTICE
Strain relief
Contacts can be broken or wires can be torn off if cables are not provided adequate strain
relief.
Provide adequate strain relief for all cables.

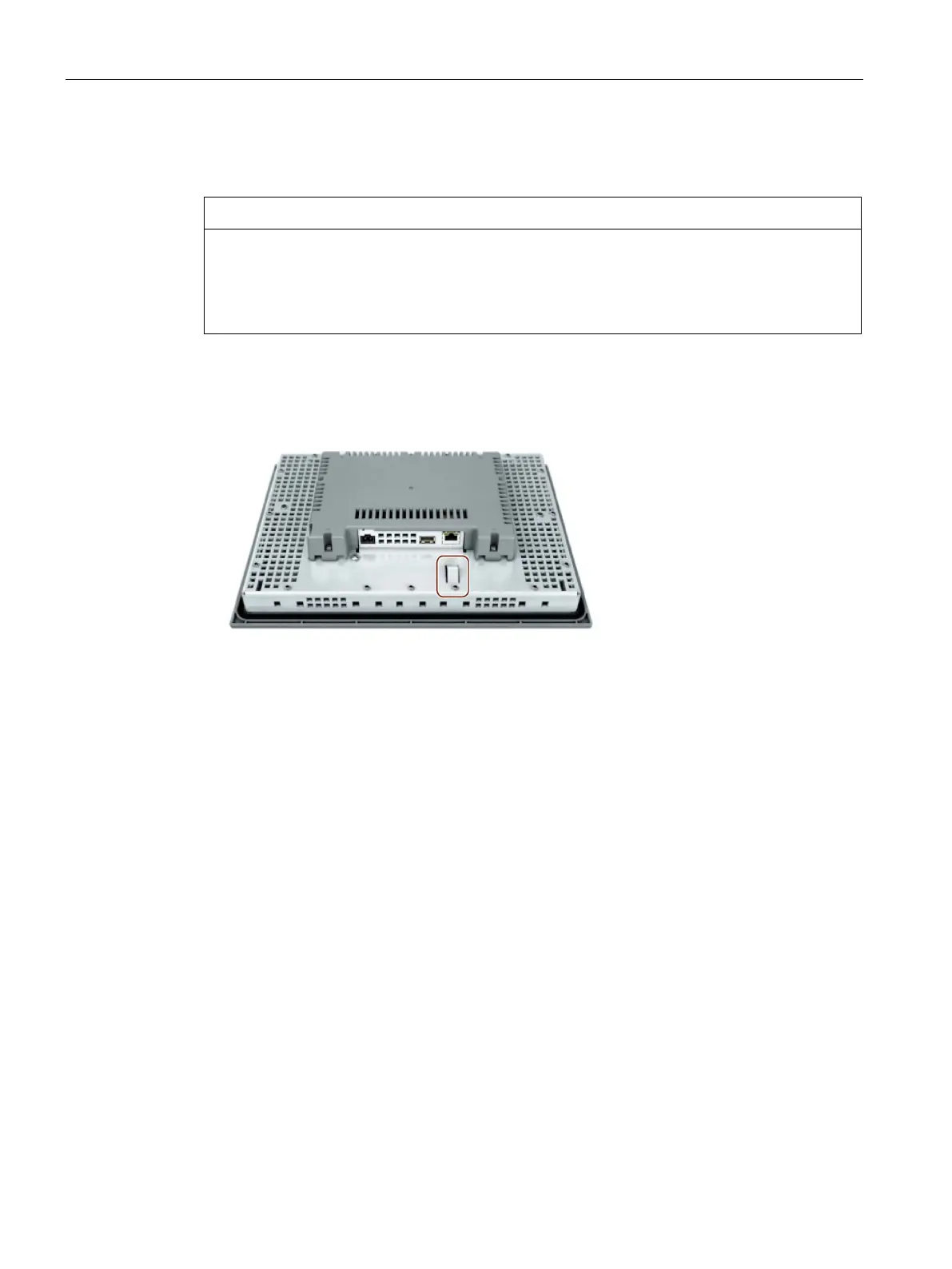

The following HMI devices come equipped with a fixing element on the back for strain relief:
● KTP900 Basic
● KTP1200 Basic
After the power-on test, use a cable tie to secure the connected cables to the marked fixing
element in order to provide strain relief.

Siemens SIMATIC HMI KTP400 Basic Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Touchscreen	Yes
Backlighting	LED
Color Depth	16-bit
Power Supply	24 V DC
Mounting	Panel mounting
Operating Temperature	0 to 50 °C
Display Size	4.3 inches
Display Colors	65K colors
Power Consumption	Approx. 3.6 W
Protection Rating	IP65 (front)
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
Interfaces	PROFINET
