Siemens SIMATIC HMI KTP400 Basic User Manual

Configuring the device
5.10 Enter time and date
Basic Panels 2nd Generation
Operating Instructions, 10/2016, A5E33293231-AB
57
5.10

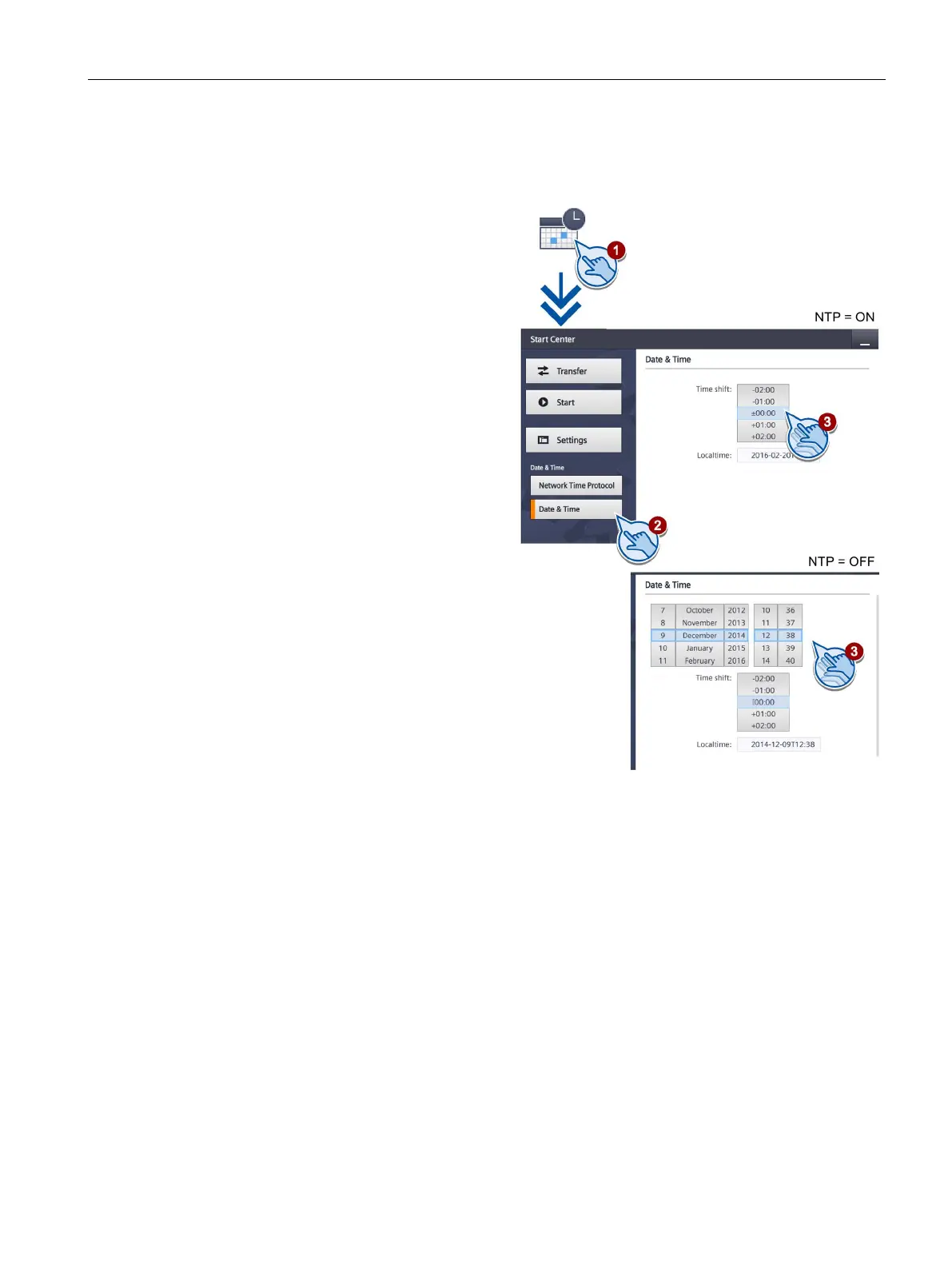

Enter time and date
1.
Touch the "Date & Time" icon.
2.
Press the "Date & Time" button.
3.
If you are using a time server
(NTP=ON), set a time shift with
the selection wheel under
"Time shift", if required.
If you are not using a time server
(NTP=OFF), set the desired time
and the desired time shift with the
selection wheel.
The resulting local time is
displayed under "Localtime".

Siemens SIMATIC HMI KTP400 Basic Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Touchscreen	Yes
Backlighting	LED
Color Depth	16-bit
Power Supply	24 V DC
Mounting	Panel mounting
Operating Temperature	0 to 50 °C
Display Size	4.3 inches
Display Colors	65K colors
Power Consumption	Approx. 3.6 W
Protection Rating	IP65 (front)
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
Interfaces	PROFINET
