Siemens SIMATIC HMI KTP400 Basic User Manual

Mounting and connecting
3.1 Preparations
Basic Panels 2nd Generation
Operating Instructions, 10/2016, A5E33293231-AB
23
Mounting in vertical format
Ambient temperature in the cabinet with vertical mounting:
● Vertical mounting (0° inclined): Maximum +40 °C
● Inclined mounting (inclined up to 35°): Maximum +35 °C
See also
Operating Conditions (Page 101)
3.1.4
Checking clearances
The following clearances are required around the HMI device to ensure sufficient self-
ventilation:

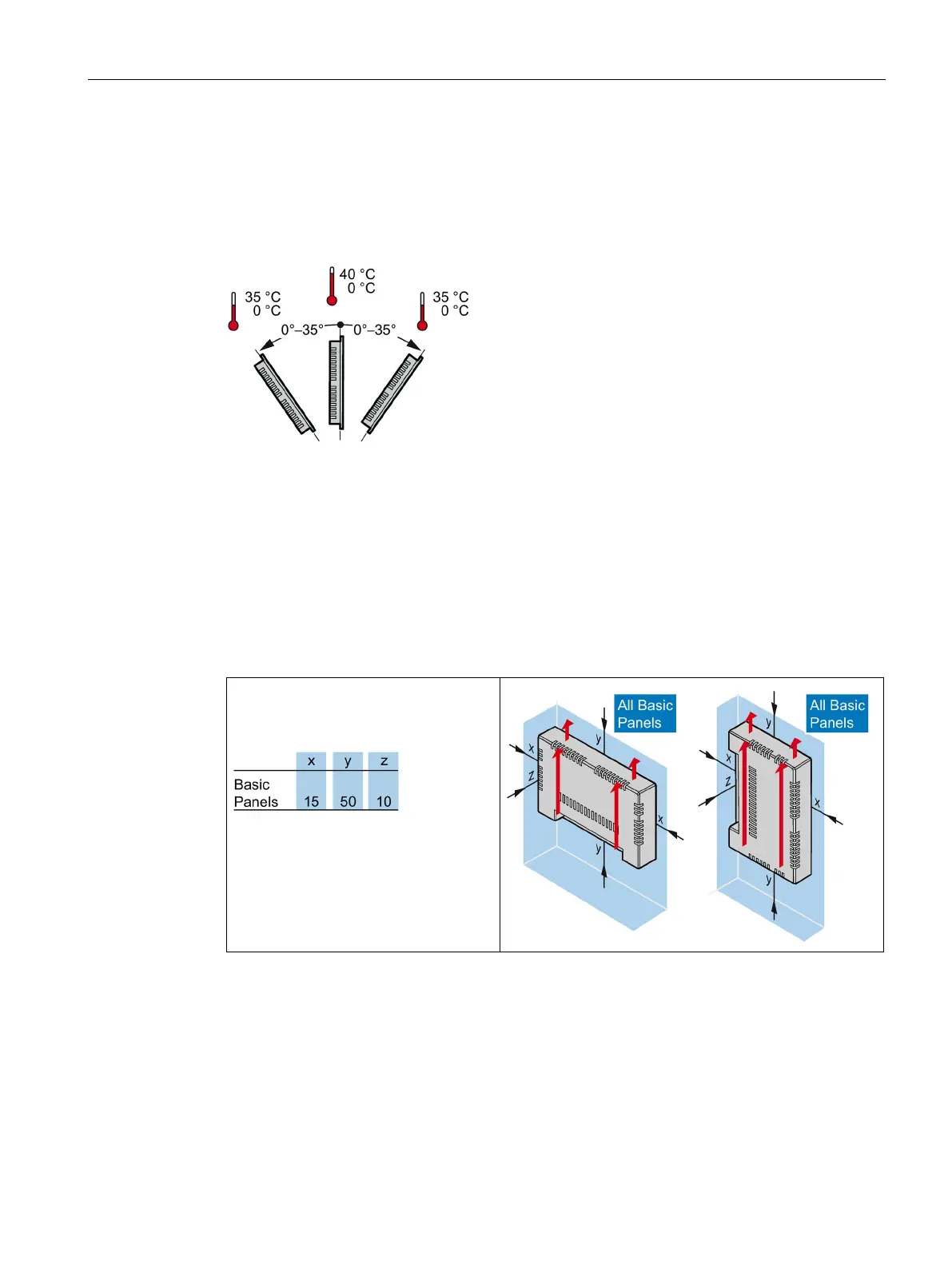

Required clearance around the
HMI devices.
All dimensions in mm

Siemens SIMATIC HMI KTP400 Basic Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Touchscreen	Yes
Backlighting	LED
Color Depth	16-bit
Power Supply	24 V DC
Mounting	Panel mounting
Operating Temperature	0 to 50 °C
Display Size	4.3 inches
Display Colors	65K colors
Power Consumption	Approx. 3.6 W
Protection Rating	IP65 (front)
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
Interfaces	PROFINET
