Configuring the device
5.17 Change network settings of PROFIBUS devices
Basic Panels 2nd Generation
64 Operating Instructions, 10/2016, A5E33293231-AB
5.17
Change network settings of PROFIBUS devices
Note
The settings for MPI or PROFIBUS DP communication are defined in the HMI device project.
Edit the transfer settings only in the follow
ing situations:
•
Initial transfer of a project.
•
If changes are made to the project but are only applied later

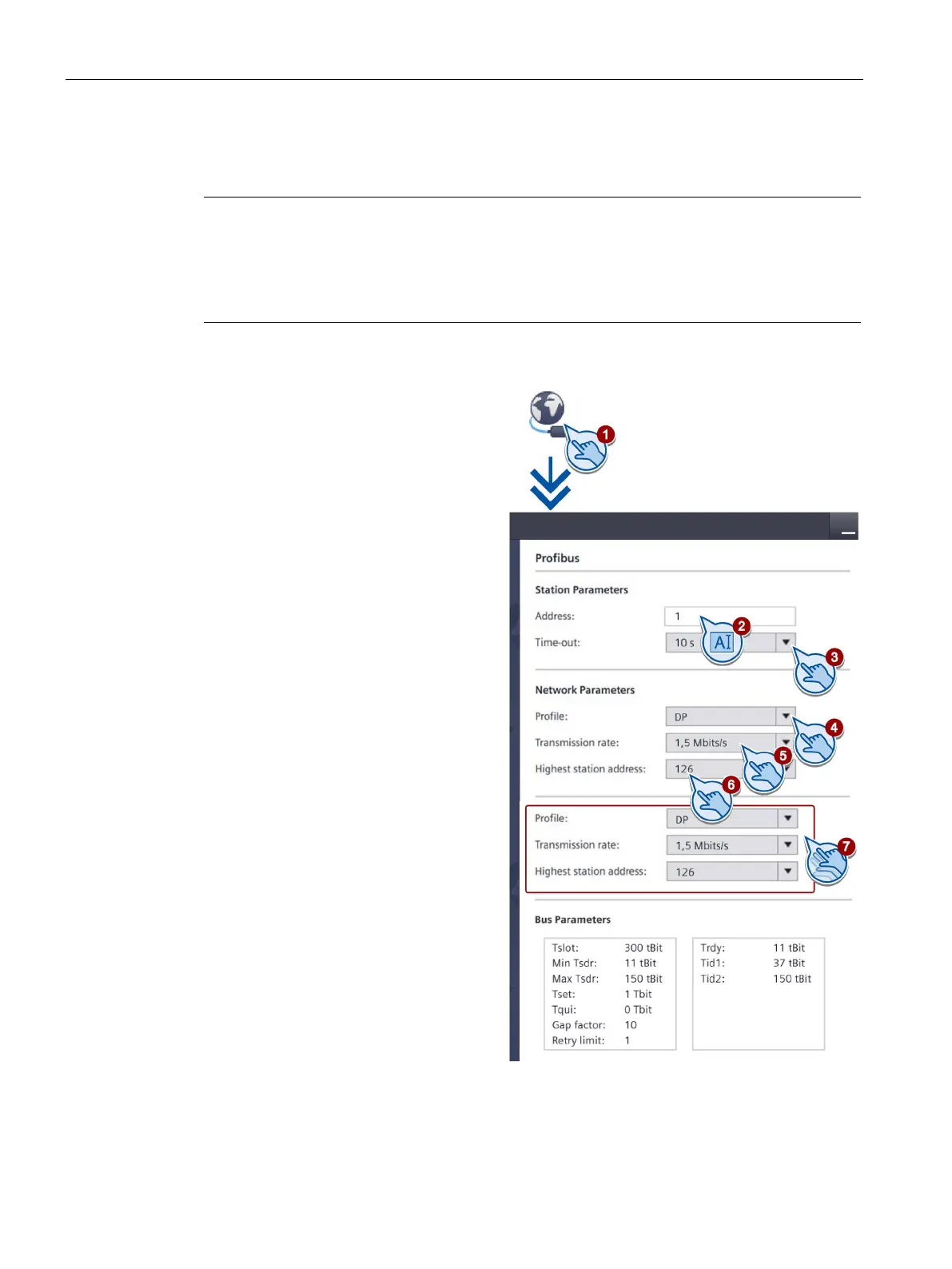

1.
Touch the "Network Interface" icon.
2.
Enter the bus address for the HMI
device in the "Address" text box.
The bus address must be unique
within the MPI/PROFIBUS DP
network.
3.
Enter the time limit for the
PROFIBUS communication in
the "Time-out" text box.
Valid values are 1 s, 10 s, 100 s.
4.
Select the profile from the "Profile"
selection box.
5.
Select the transmission rate from
the "Transmission rate" text box.
6.
Enter the highest station address
on the bus in the "Highest station
address" text box. Valid range of
values: 1 to 126.
7.
The PROFIBUS profile data is
displayed under
"Bus parameters...".

Siemens SIMATIC HMI KTP400 Basic Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Touchscreen	Yes
Backlighting	LED
Color Depth	16-bit
Power Supply	24 V DC
Mounting	Panel mounting
Operating Temperature	0 to 50 °C
Display Size	4.3 inches
Display Colors	65K colors
Power Consumption	Approx. 3.6 W
Protection Rating	IP65 (front)
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
Interfaces	PROFINET
