Configuring the device
5.22 Calibrating the touch screen
Basic Panels 2nd Generation
Operating Instructions, 10/2016, A5E33293231-AB
69

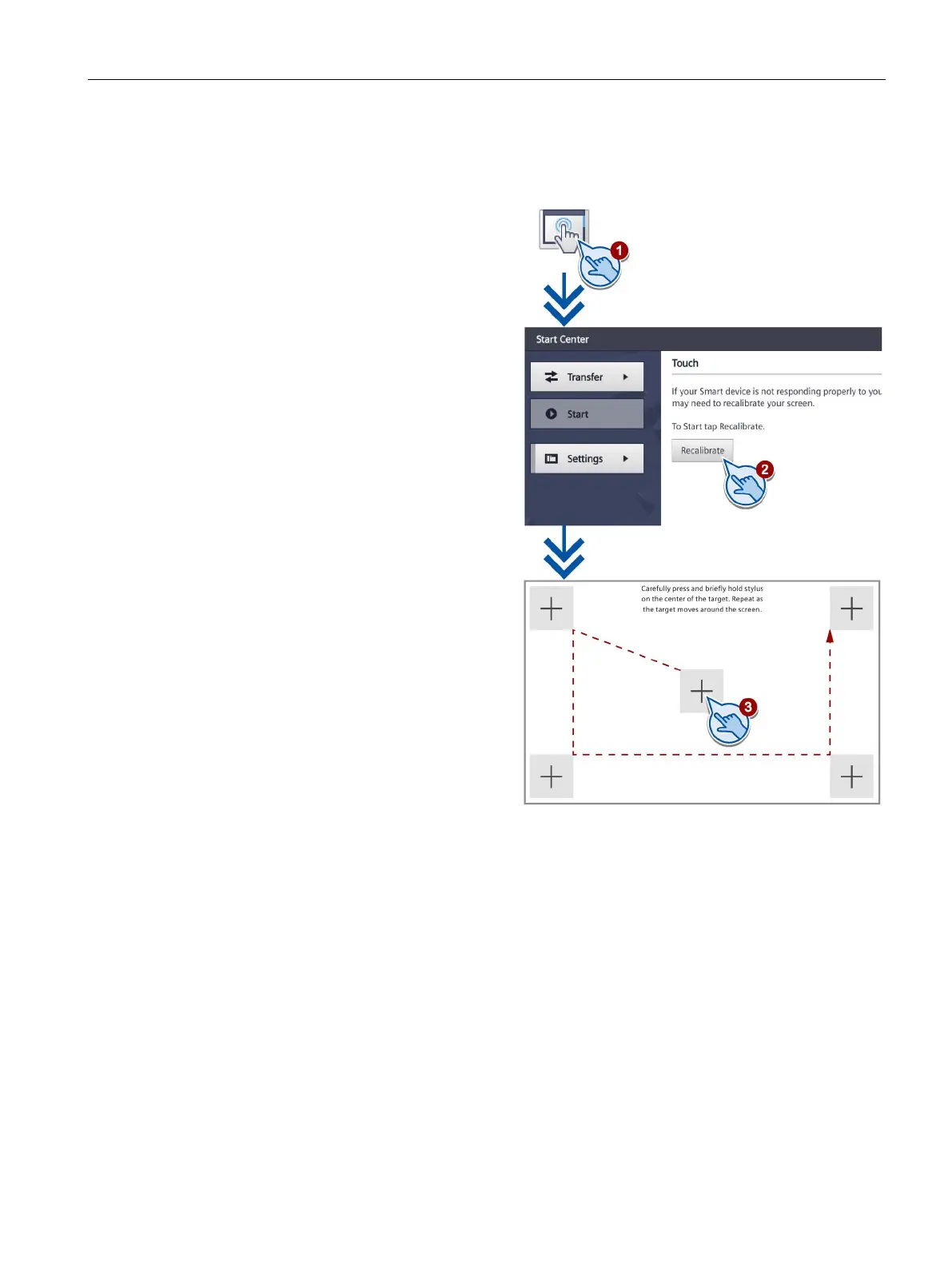

5.22
Calibrating the touch screen
1.
Touch the "Touch" icon.
2.
Press the "Recalibrate" button and
then press any spot on the touch
screen within the next 15 seconds.
3.
Touch the five calibration crosses
one after the other.
If you have not touched a
calibration cross within the
expected range, calibration
will start once again.
If you have touched all calibration
crosses within the expected range,
calibration is complete and will be
saved.

Siemens SIMATIC HMI KTP400 Basic Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Touchscreen	Yes
Backlighting	LED
Color Depth	16-bit
Power Supply	24 V DC
Mounting	Panel mounting
Operating Temperature	0 to 50 °C
Display Size	4.3 inches
Display Colors	65K colors
Power Consumption	Approx. 3.6 W
Protection Rating	IP65 (front)
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
Interfaces	PROFINET
