Configuring the device
5.8 Editing communication connections
Basic Panels 2nd Generation
Operating Instructions, 10/2016, A5E33293231-AB
55
5.8
Editing communication connections

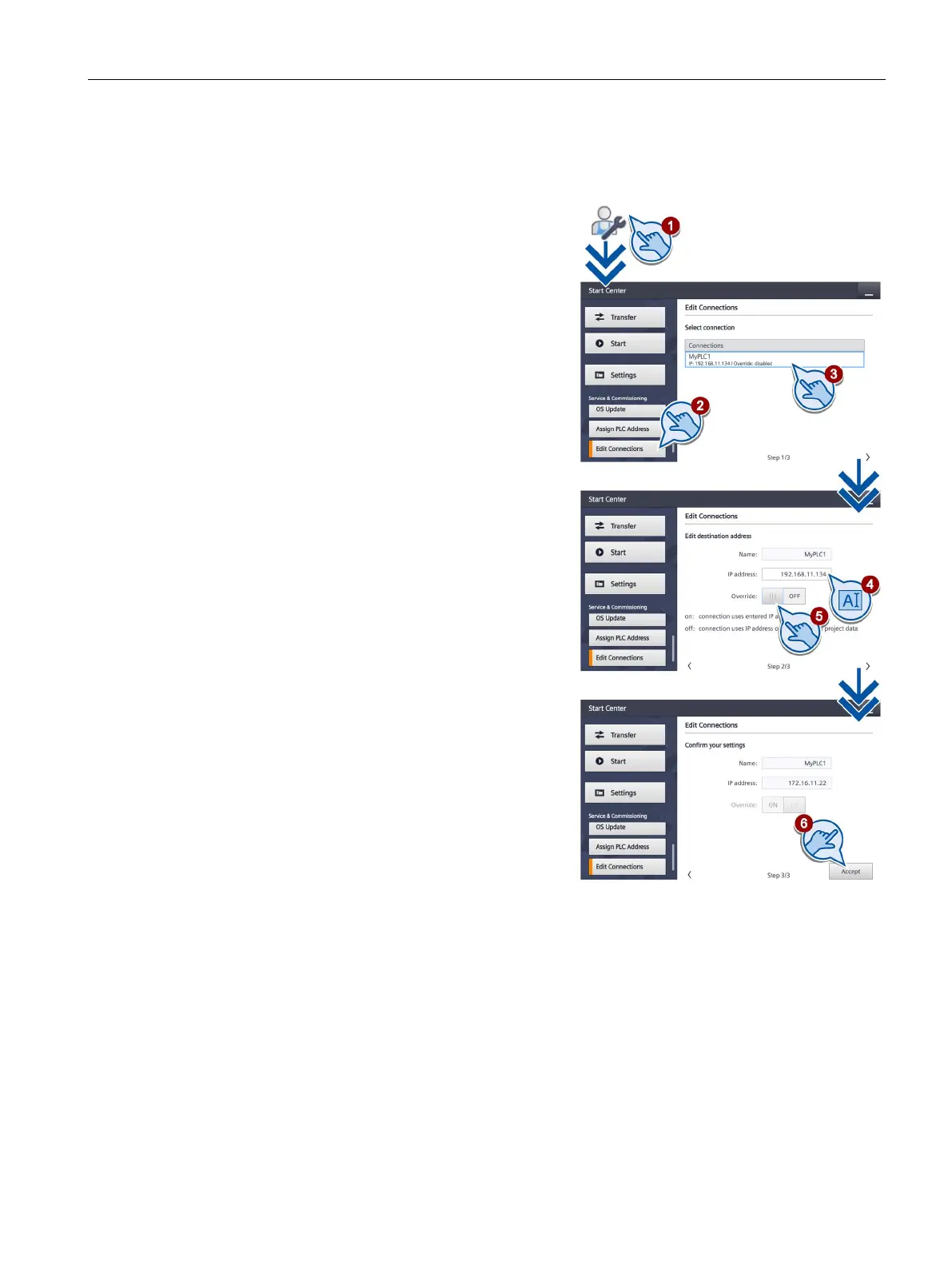

1.
Touch the "Service & Commissioning"
icon.
2.
Press the "Edit Connections" button.
With "Edit Connections", you overwrite
the parameters of configured controller
connections
in the current project.
3.
A list shows all communication
connections to controllers.
Select a communication connection
from the list.
4.
The configured name and IP address
are displayed.
You can enter a new IP address.
5.
Set the "Override" switch to "ON".
The connection parameters will only be
overwritten if "Override" is enabled
6.
Use the "Accept" button to confirm.
The configured IP address is overwritten.

Siemens SIMATIC HMI KTP400 Basic Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Touchscreen	Yes
Backlighting	LED
Color Depth	16-bit
Power Supply	24 V DC
Mounting	Panel mounting
Operating Temperature	0 to 50 °C
Display Size	4.3 inches
Display Colors	65K colors
Power Consumption	Approx. 3.6 W
Protection Rating	IP65 (front)
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
Interfaces	PROFINET
