Siemens SIMATIC HMI KTP400 Basic User Manual

Commissioning a project
6.9 Managing WinCC options
Basic Panels 2nd Generation
92 Operating Instructions, 10/2016, A5E33293231-AB
5. Switch on the HMI device.

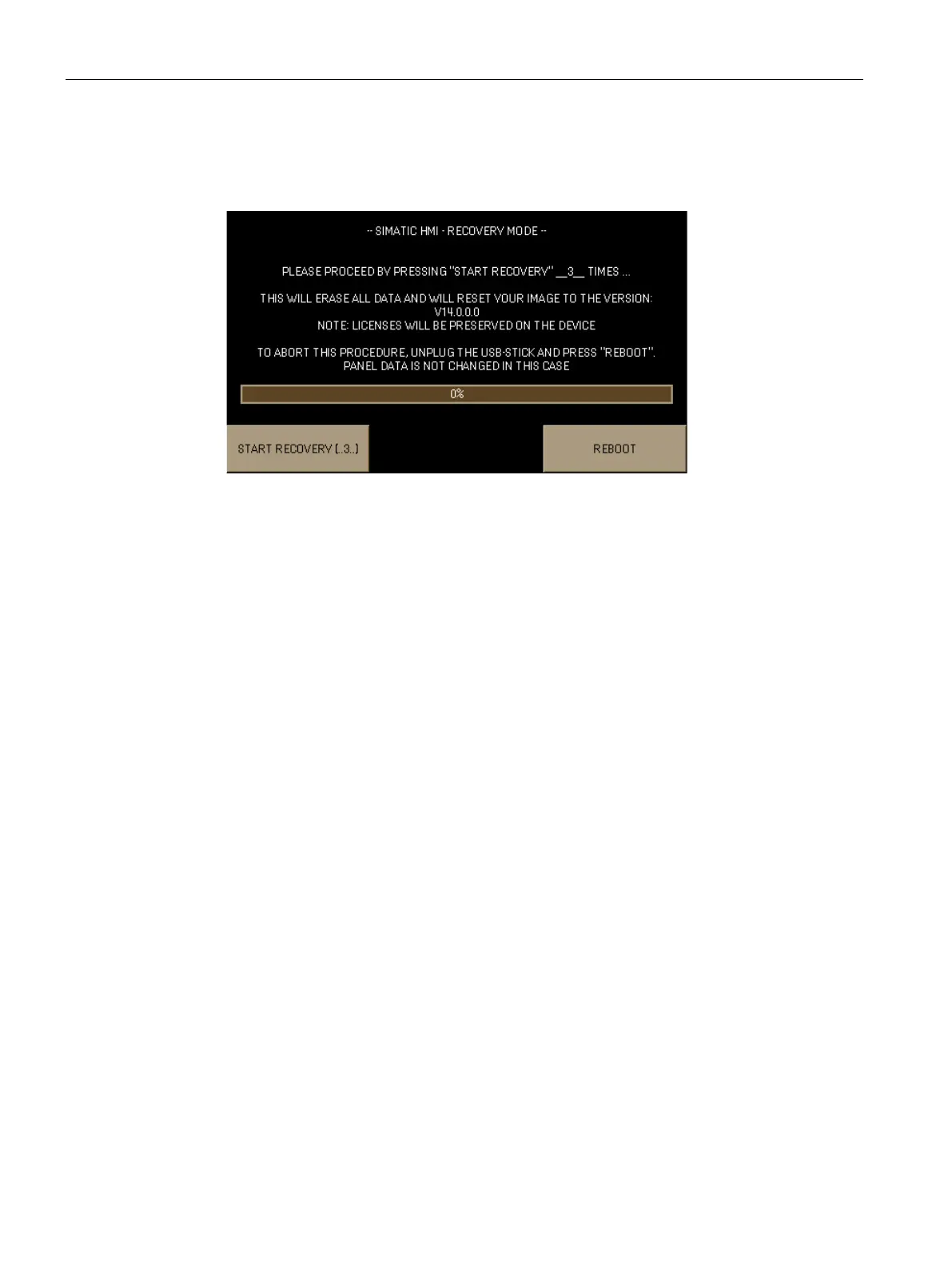

The HMI device detects the USB memory stick containing the Recovery Software. The
"Recovery Mode" dialog is displayed.
6. To reset the HMI device to factory settings, press the "START RECOVERY (..3..)" button
three times in a row and follow the instructions on the display. At the end of the recovery
operation, remove the USB memory stick and press the "REBOOT" button.
6.9
Managing WinCC options
You can install the following WinCC options on an HMI device:
● WinCC options supplied with WinCC for the Engineering System and Runtime
● WinCC options purchased in addition to WinCC for the Engineering System and Runtime
The HMI device type determines which WinCC options can be installed.
For an overview of available WinCC options, refer to "Introduction to WinCC".
Requirement
● The HMI device is connected to the configuration PC.
● The PG/PC interface is set.
● The HMI device is selected in the project tree.
● The HMI device is switched on.

Siemens SIMATIC HMI KTP400 Basic Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Touchscreen	Yes
Backlighting	LED
Color Depth	16-bit
Power Supply	24 V DC
Mounting	Panel mounting
Operating Temperature	0 to 50 °C
Display Size	4.3 inches
Display Colors	65K colors
Power Consumption	Approx. 3.6 W
Protection Rating	IP65 (front)
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
Interfaces	PROFINET
