Siemens SIMATIC HMI KTP400 Basic User Manual

Overview
1.3 Design of the PROFIBUS devices
Basic Panels 2nd Generation
Operating Instructions, 10/2016, A5E33293231-AB
13
1.3
Design of the PROFIBUS devices

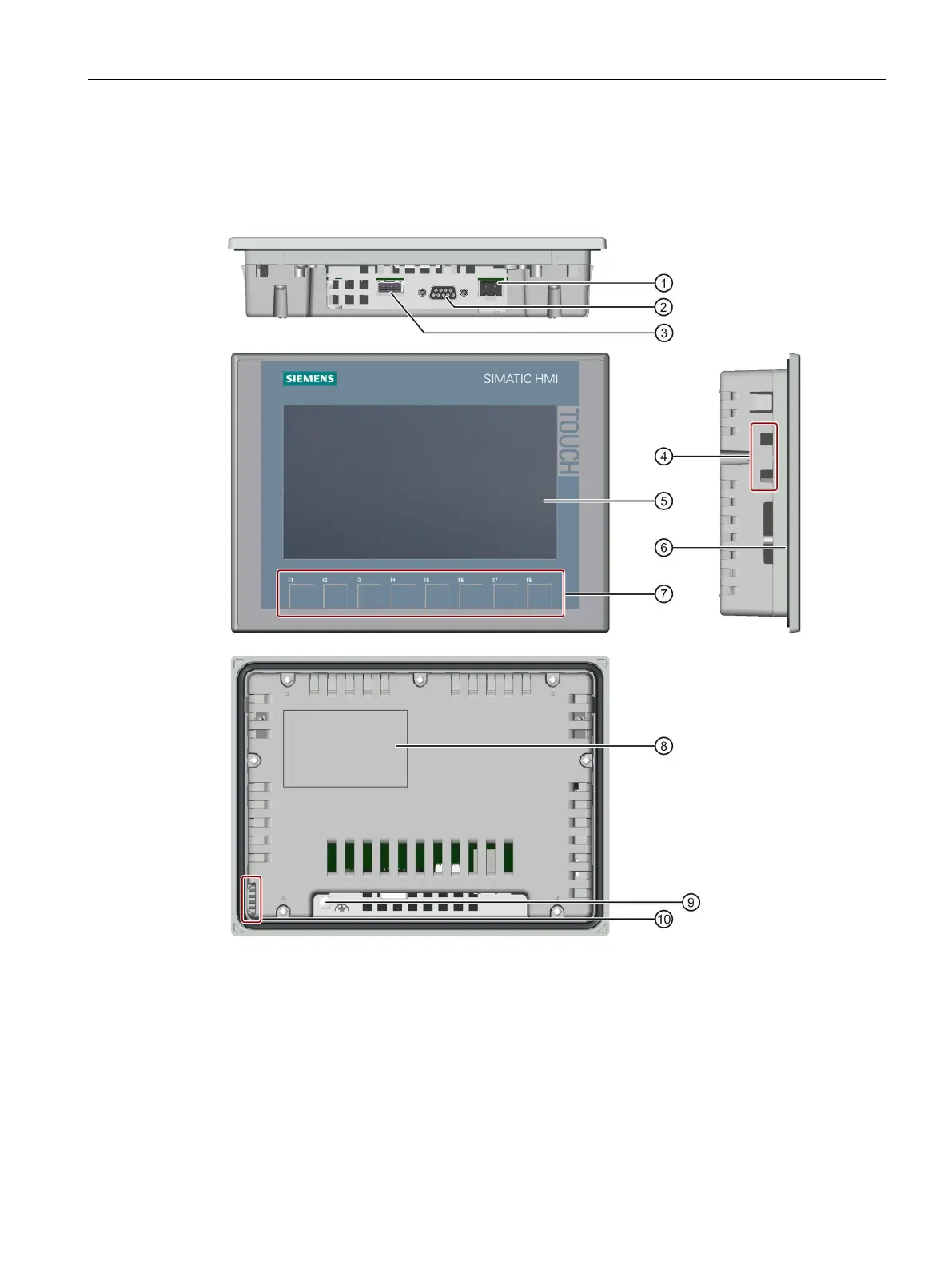

The figure below shows the design of the PROFIBUS devices using KTP700 Basic DP as an
example.
①
Power supply connection
⑥
Mounting seal
②
RS 422/RS 485 port
⑦
Function keys
③
USB port
⑧
Rating plate
④
Recesses for a mounting clip
⑨
Functional earth connection
⑤
Display/touch screen
⑩
Guides for labeling strips

Siemens SIMATIC HMI KTP400 Basic Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Touchscreen	Yes
Backlighting	LED
Color Depth	16-bit
Power Supply	24 V DC
Mounting	Panel mounting
Operating Temperature	0 to 50 °C
Display Size	4.3 inches
Display Colors	65K colors
Power Consumption	Approx. 3.6 W
Protection Rating	IP65 (front)
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
Interfaces	PROFINET
